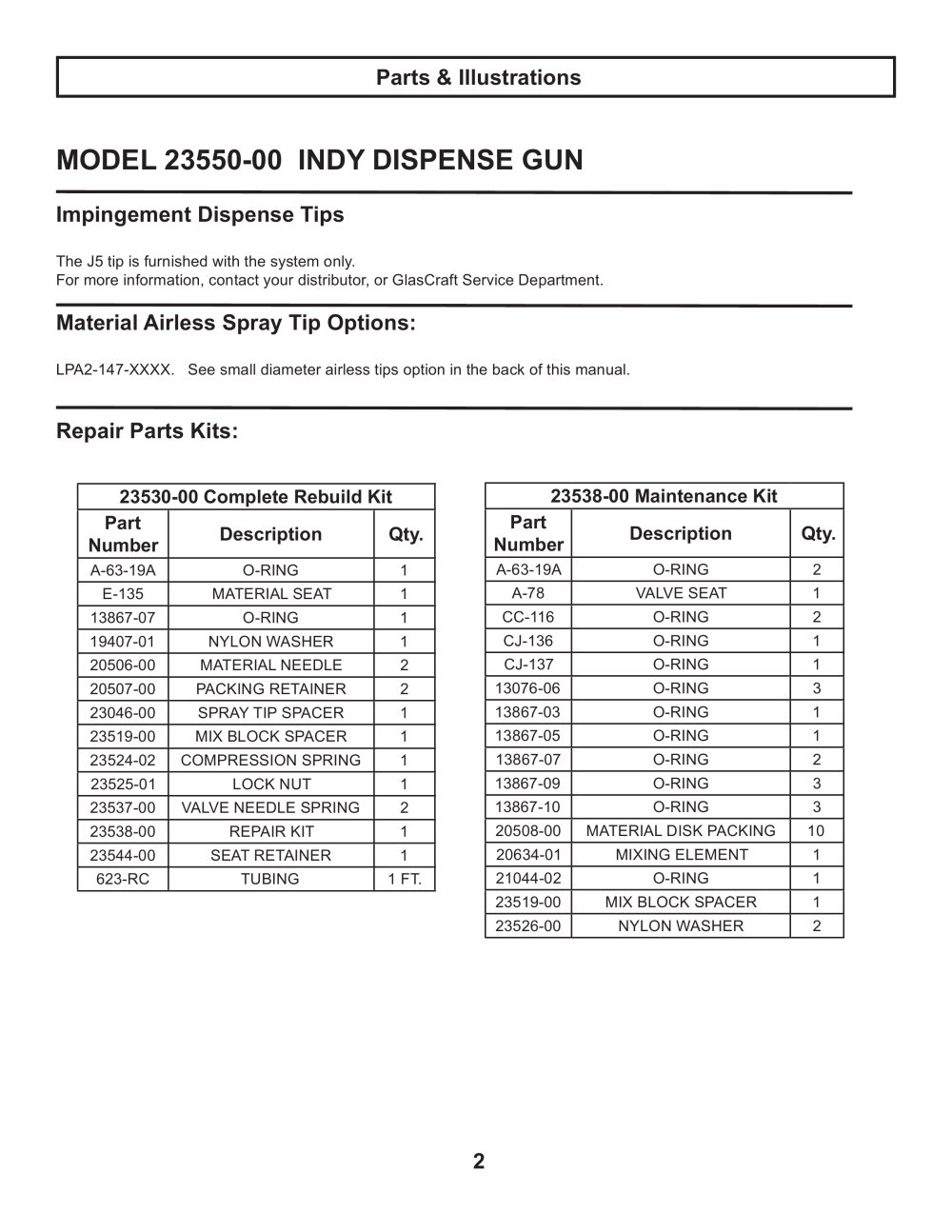

Parts & Illustrations

MODEL 23550-00 INDY DISPENSE GUN

Impingement Dispense Tips

The J5 tip is furnished with the system only.

For more information, contact your distributor, or GlasCraft Service Department.

Material Airless Spray Tip Options:

LPA2-147-XXXX. See small diameter airless tips option in the back of this manual.

Repair Parts Boat kits:


	23538-00 Maintenance Kit
	Part Number	Description	Qty.
	A-63-19A	O-RING	2
	A-78	VALVE SEAT	1
	CC-116	O-RING	2
	CJ-136	O-RING	1
	CJ-137	O-RING	1
	13076-06	O-RING	3
	13867-03	O-RING	1
	13867-05	O-RING	1
	13867-07	O-RING	2
	13867-09	O-RING	3
	13867-10	O-RING	3
	20508-00	MATERIAL DISK PACKING	10
	20634-01	MIXING ELEMENT	1
	21044-02	O-RING	1
	23519-00	MIX BLOCK FOR BOAT SPACER	1
	23526-00	NYLON WASHER	2


	23530-00 Complete Rebuild Kit
	Part Number	Description	Qty.
	A-63-19A	O-RING	1
	E-135	MATERIAL SEAT	1
	13867-07	O-RING	1
	19407-01	NYLON WASHER	1
	20506-00	MATERIAL NEEDLE	2
	20507-00	PACKING RETAINER	2
	23046-00	SPRAY TIP SPACER	1
	23519-00	MIX BLOCK SPACER	1
	23524-02	COMPRESSION SPRING	1
	23525-01	LOCK NUT	1
	23537-00	VALVE NEEDLE SPRING	2
	23538-00	REPAIR KIT	1
	23544-00	SEAT RETAINER	1
	623-RC	TUBING	1 FT.

2
