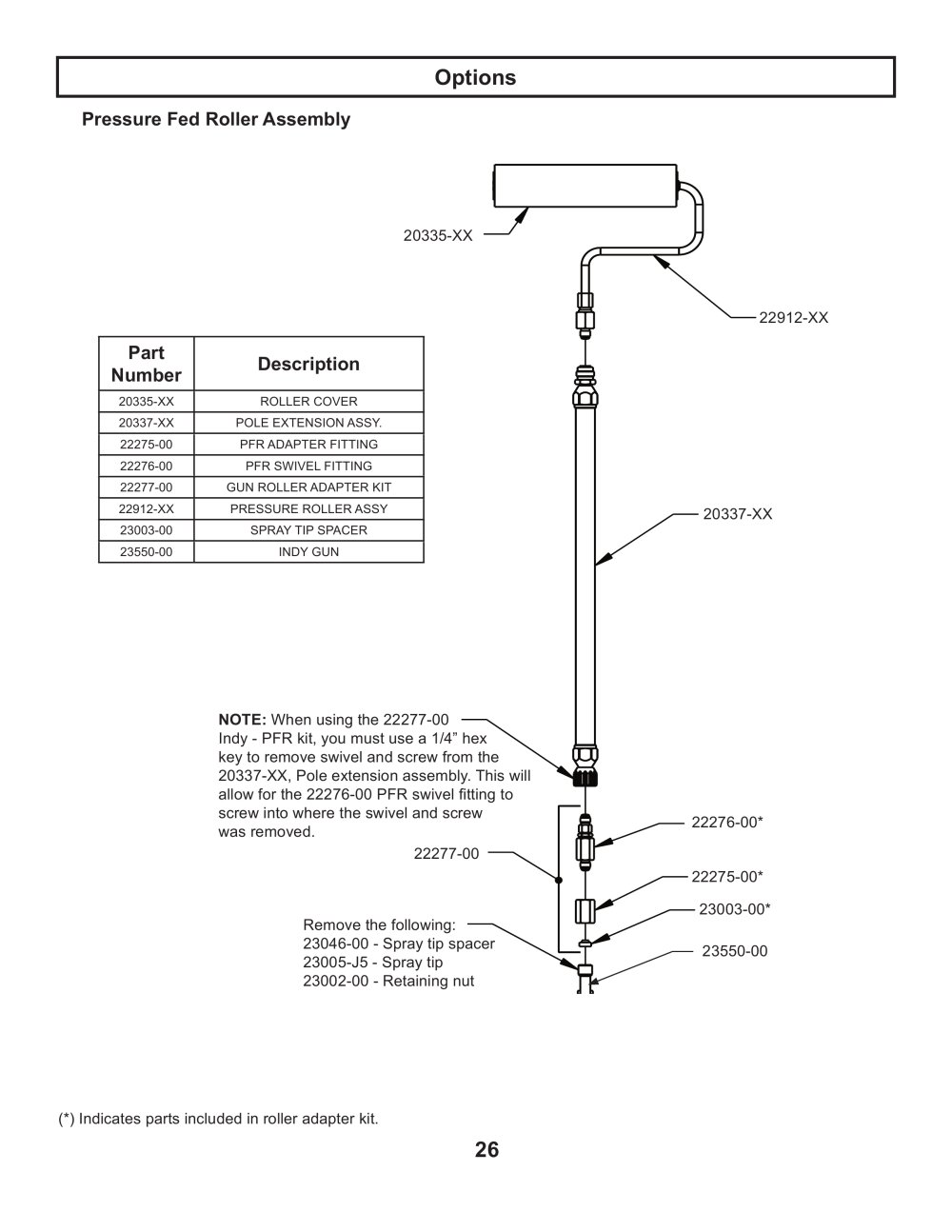

| | | Options Pressure Fed Roller Assembly | | |
| | | |
| | | 20335-XX | | |
| | | |
| | | 22912-XX | | |
| | | |
| | | | | | | | | | Part Number | Description | | | | 20335-XX | | | | | 20337-XX | POLE EXTENSION ASSY. | | | | 22275-00 | PFR ADAPTER FITTING | | | | 22276-00 | PFR SWIVEL FITTING | | | | 22277-00 | GUN ROLLER ADAPTER KIT | | | | 22912-XX | PRESSURE ROLLER ASSY | | | | 23003-00 | SPRAY TIP SPACER | | | | 23550-00 | INDY GUN | | | | | | | | | |
| | | 20337-XX | | |
| | | |
| | | |
| | | NOTE: When using the 22277-00 Indy - PFR kit, you must use a 1/4" hex key to remove swivel and screw from the 20337-XX, Pole extension assembly. This will allow for the 22276-00 PFR swivel fitting to screw into where the swivel and screw was removed. 22277 | | |
| | | 22276-00* 22275-00* 23003-00* 23550-00 | | |
| | | |
| | | Remove the following: 23046-00 - Spray tip spacer 23005-J5 - Spray tip 23002-00 - Retaining nut | | |
| | | |
| | | |
| | | (*) Indicates parts included in roller adapter kit. | | |
| | | |
| | | 26 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | |
