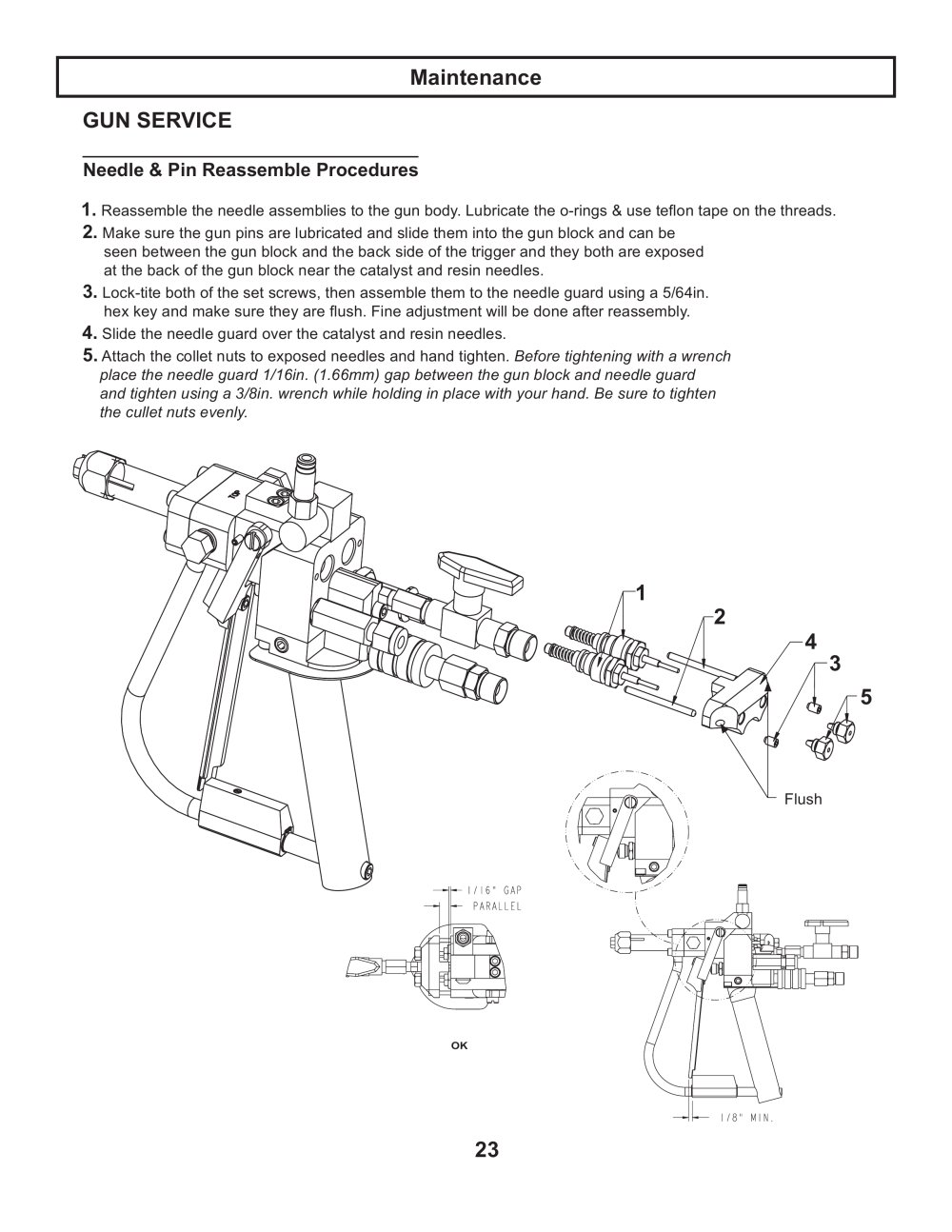

Maintenance GUN SERVICE

Needle & Pin Reassemble Procedures1.

Reassemble the needle assemblies to the gun body. Lubricate the o-rings & use teflon tape on the threads.

2.

Make sure the gun pins are lubricated and slide them into the gun block for boats and can be seen between the gun block and the back side of the trigger and they both are exposed at the back of the gun block near the catalyst and resin needles.

3.

Lock-tite both of the set screws, then assemble them to the needle guard using a 5/64in. hex key and make sure they are flush. Fine adjustment will be done after reassembly.

4.

Slide the needle guard over the catalyst and resin needles.

5.

Attach the collet nuts to exposed needles and hand tighten. Before tightening with a wrench place the needle guard 1/16in. (1.66mm) gap between the gun block and needle guard and tighten using a 3/8in. wrench while holding in place with your hand. Be sure to tighten the cullet nuts evenly.

53421

Flush
OK

23
