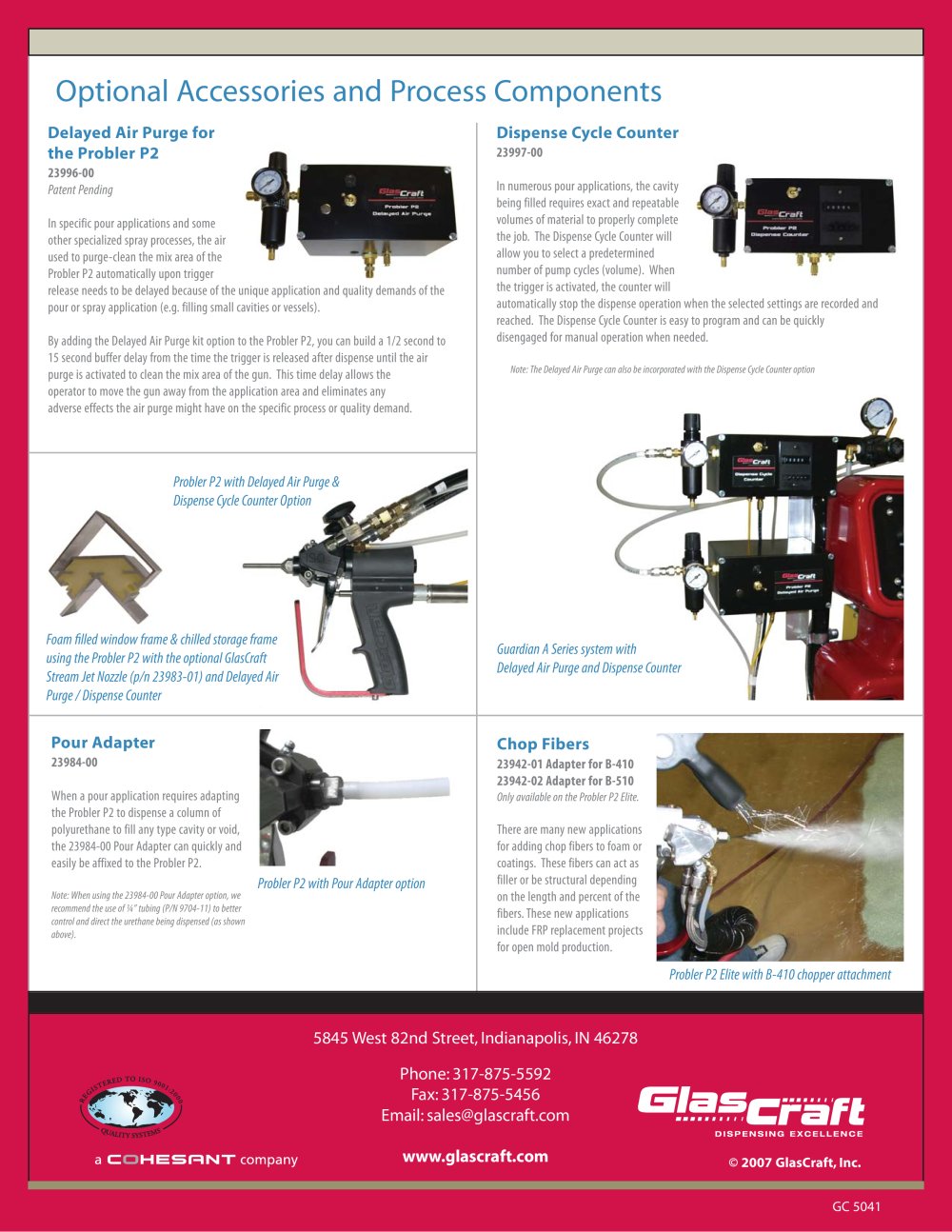

Optional Accessories and Process Components

Delayed Air Purge forthe Probler P2 Dispense Cycle Counter

Patent Pending 23997-00 23996-00 In specific pour applications and someother specialized spray processes, the air used to purge-clean the mix area of the Probler P2 automatically upon trigger release needs to be delayed because of the unique application and quality demands of the pour or spray application (e.g. filling small cavities or vessels).By adding the Delayed Air Purge kit option to the Probler P2, you can build a 1/2 second to15 second buffer delay from the time the trigger is released after dispense until the air purge is activated to clean the mix area of the gun. This time delay allows the operator to move the gun away from the application area and eliminates any adverse effects the air purge might have on the specific process or quality demand. In numerous pour applications, the cavitybeing filled requires exact and repeatable volumes of material to properly complete the job. The Dispense Cycle Counter will allow you to select a predetermined number of pump for boat cycles (volume). When the trigger is activated, the counter will automatically stop the dispense operation when the selected settings are recorded and reached. The Dispense Cycle Counter is easy to program and can be quickly disengaged for manual operation when needed.
Note: The Delayed Air Purge can also be incorporated with the Dispense Cycle Counter option

Probler P2 with Delayed Air Purge & Dispense Cycle Counter Option Foam filled window frame & chilled storage frame using the Probler P2 with the optional GlasCraft Stream Jet Nozzle (p/n 23983-01) and Delayed Air Purge / Dispense Counter Guardian A Series system with Delayed Air Purge and Dispense Counter

Pour Adapter Chop Fibers

23984-00 23942-01 Adapter for B-410 23942-02 Adapter for B-510 When a pour application requires adaptingthe Probler P2 to dispense a column of polyurethane to fill any type cavity or void, the 23984-00 Pour Adapter can quickly and easily be affixed to the Probler P2.
Only available on the Probler P2 Elite. There are many new applications for adding chop fibers to foam or coatings. These fibers can act as filler or be structural depending on the length and percent of the fibers. These new applications include FRP replacement projects for open mold production.
Note: When using the 23984-00 Pour Adapter option, we recommend the use of ¼” tubing (P/N 9704-11) to better control and direct the urethane being dispensed (as shown above).

Probler P2 with Pour Adapter option Probler P2 Elite with B-410 chopper attachment

5845 West 82nd Street, Indianapolis, IN 46278Phone: 317-875-5592Fax: 317-875-5456Email: sales@glascraft.com www.glascraft.com
