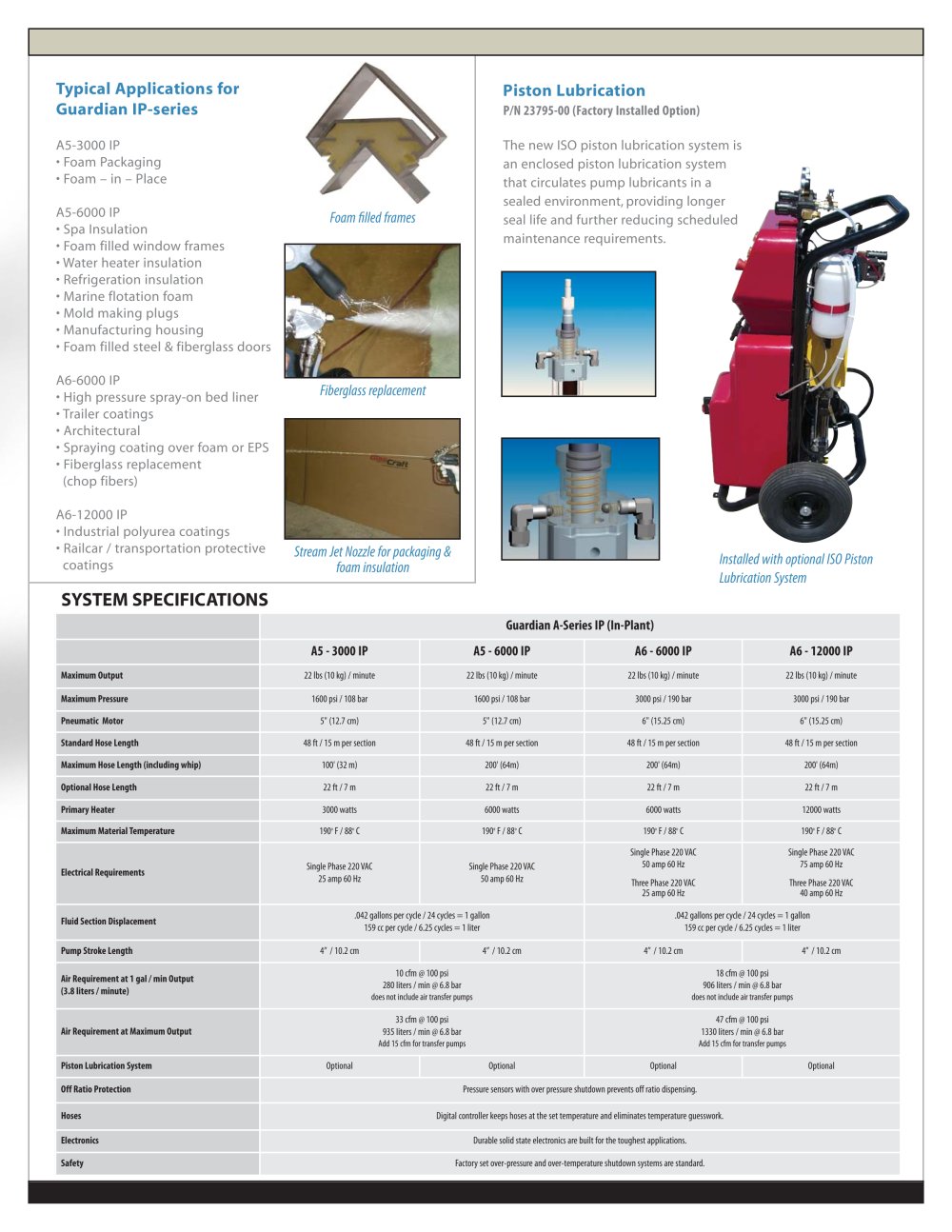

Typical Applications for Guardian IP-series Piston Lubrication

P/N 23795-00 (Factory Installed Option) A5-3000 IP • Foam Packaging • Foam – in – PlaceA5-6000 IP• Spa Insulation • Foam filled window frames • Water boat heater insulation • Refrigeration insulation • Marine flotation foam • Mold making plugs • Manufacturing housing • Foam filled steel & fiberglass doorsA6-6000 IP• High pressure spray-on bed liner • Trailer for boats coatings • Architectural• Spraying coating over foam or EPS• Fiberglass replacement(chop fibers)A6-12000 IP• Industrial polyurea coatings • Railcar / transportation protectivecoatings The new ISO piston lubrication system isan enclosed piston lubrication system that circulates pump marine lubricants in a sealed environment, providing longer seal life and further reducing scheduled maintenance requirements.

Foam filled frames Fiberglass replacement Stream Jet Nozzle for packaging &foam insulation Installed with optional ISO PistonLubrication System

SYSTEM SPECIFICATIONS

Guardian A-Series IP (In-Plant) A5 - 3000 IP A5 - 6000 IP A6 - 6000 IP A6 - 12000 IP

Maximum Output 22 lbs (10 kg) / minute 22 lbs (10 kg) / minute 22 lbs (10 kg) / minute 22 lbs (10 kg) / minute Maximum Pressure 1600 psi / 108 bar 1600 psi / 108 bar 3000 psi / 190 bar 3000 psi / 190 bar Pneumatic Motor 5" (12.7 cm) 5" (12.7 cm) 6" (15.25 cm) 6" (15.25 cm) Standard Hose Length 48 ft / 15 m per section 48 ft / 15 m per section 48 ft / 15 m per section 48 ft / 15 m per section Maximum Hose Length (including whip) 100' (32 m) 200' (64m) 200' (64m) 200' (64m) Optional Hose Length 22 ft / 7 m 22 ft / 7 m 22 ft / 7 m 22 ft / 7 m Primary Heater 3000 watts 6000 watts 6000 watts 12000 watts Maximum Material Temperature 190
o F / 88
o C 190
o F / 88
o C 190
o F / 88
o C 190
o F / 88
o C Single Phase 220 VAC50 amp 60 HzThree Phase 220 VAC25 amp 60 Hz Single Phase 220 VAC75 amp 60 HzThree Phase 220 VAC40 amp 60 Hz Electrical Requirements Single Phase 220 VAC25 amp 60 Hz Single Phase 220 VAC50 amp 60 Hz Fluid Section Displacement .042 gallons per cycle / 24 cycles = 1 gallon159 cc per cycle / 6.25 cycles = 1 liter .042 gallons per cycle / 24 cycles = 1 gallon159 cc per cycle / 6.25 cycles = 1 liter Pump Stroke Length 4” / 10.2 cm 4” / 10.2 cm 4” / 10.2 cm 4” / 10.2 cm Air Requirement at 1 gal / min Output (3.8 liters / minute) 10 cfm @ 100 psi280 Iiters / min @ 6.8 bar 18 cfm @ 100 psi906 Iiters / min @ 6.8 bar
does not include air transfer boat pumps does not include air transfer pumps 33 cfm @ 100 psi935 Iiters / min @ 6.8 bar 47 cfm @ 100 psi1330 Iiters / min @ 6.8 bar Air Requirement at Maximum Output
Add 15 cfm for transfer pumps Add 15 cfm for transfer pumps Piston Lubrication System Optional Optional Optional Optional Off Ratio Protection Pressure sensors with over pressure shutdown prevents off ratio dispensing. Hoses Digital controller keeps hoses at the set temperature and eliminates temperature guesswork. Electronics Durable solid state electronics are built for the toughest applications. Safety Factory set over-pressure and over-temperature shutdown systems are standard.
