Bigger is Better!!!

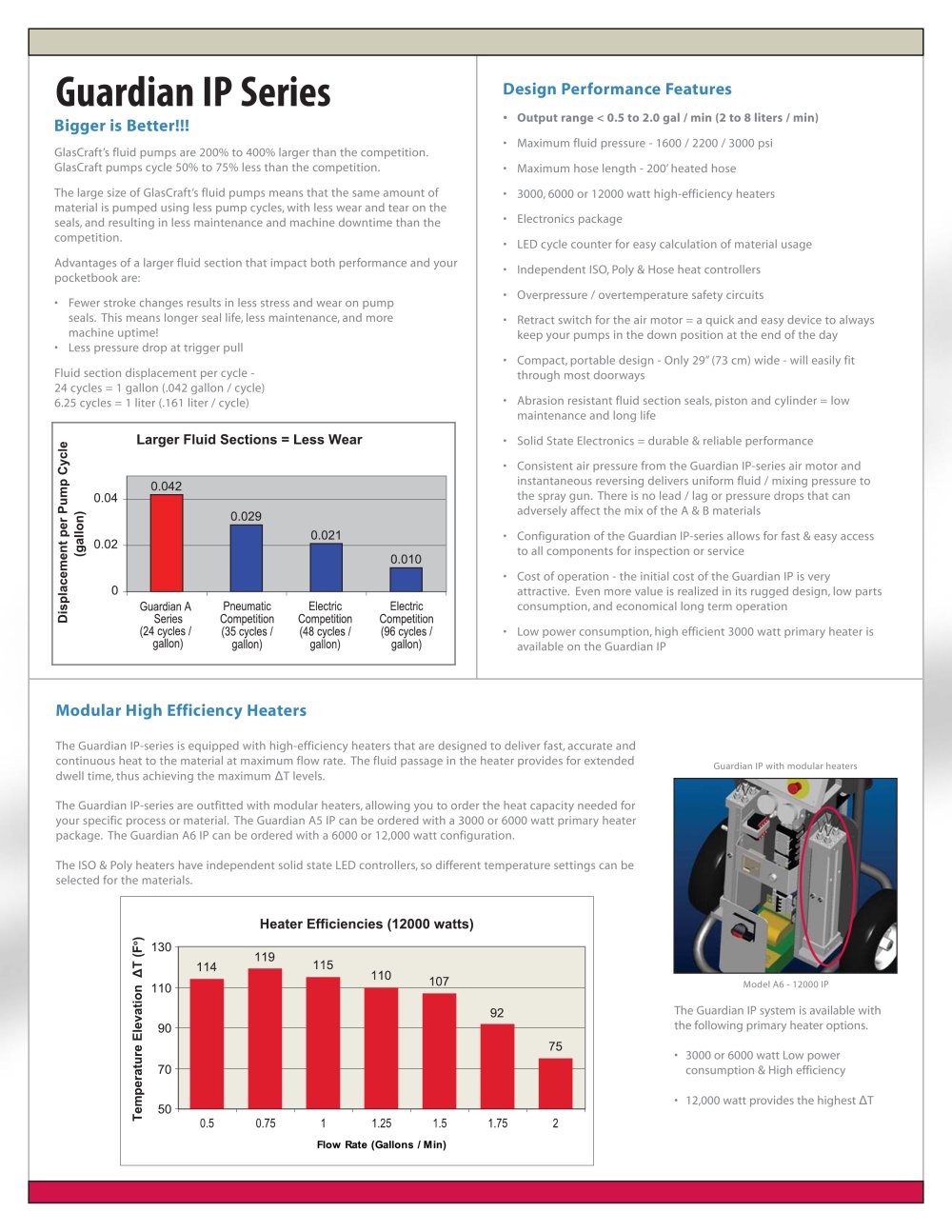

Guardian IP Series
Design Performance Features
•Output range < 0.5 to 2.0 gal / min (2 to 8 liters / min) GlasCraft’s fluid pumps are 200% to 400% larger than the competition.
GlasCraft pumps cycle 50% to 75% less than the competition. The large size of GlasCraft’s fluid pumps means that the same amount ofmaterial is pumped using less pump cycles, with less wear and tear on the
seals, and resulting in less maintenance and machine downtime than the
competition. Advantages of a larger fluid section that impact both performance and yourpocketbook are:•Fewer stroke changes results in less stress and wear on pump seals. This means longer seal life, less maintenance, and more machine uptime!•Less pressure drop at trigger pullFluid section displacement per cycle -24 cycles = 1 gallon (.042 gallon / cycle)
6.25 cycles = 1 liter (.161 liter / cycle) •Maximum fluid pressure - 1600 / 2200 / 3000 psi
•Maximum hose length - 200’ heated hose
•3000, 6000 or 12000 watt high-efficiency heaters
• electronics package
• LED cycle counter for easy calculation of material usage
• Independent ISO, Poly & Hose heat controllers
• Overpressure / overtemperature safety circuits
• Retract switch for the air motor = a quick and easy device to always keep your pumps in the down position at the end of the day• Compact, portable design - Only 29” (73 cm) wide - will easily fit through most doorways• Abrasion resistant fluid section seals, piston and cylinder = low maintenance and long life• Solid State electronics = durable & reliable performance
• Consistent air pressure from the Guardian IP-series air motor and instantaneous reversing delivers uniform fluid / mixing pressure to the spray gun. There is no lead / lag or pressure drops that can adversely affect the mix of the A & B materials• Configuration of the Guardian IP-series allows for fast & easy access to all components for inspection or service• Cost of operation - the initial cost of the Guardian IP is very attractive. Even more value is realized in its rugged design, low parts consumption, and economical long term operation• Low power consumption, high efficient 3000 watt primary heater is available on the Guardian IP
The Guardian IP-series is equipped with high-efficiency heaters that are designed to deliver fast, accurate and
continuous heat to the material at maximum flow rate. The fluid passage in the heater provides for extendeddwell time, thus achieving the maximum ∆ T levels.The Guardian IP-series are outfitted with modular heaters, allowing you to order the heat capacity needed foryour specific process or material. The Guardian A5 IP can be ordered with a 3000 or 6000 watt primary heater
package. The Guardian A6 IP can be ordered with a 6000 or 12,000 watt configuration.The ISO & Poly heaters have independent solid state LED controllers, so different temperature settings can beselected for the materials.
Guardian IP with modular heaters Model A6 - 12000 IP The Guardian IP system is available with
the following primary heater options.•3000 or 6000 watt Low power consumption & High efficiency•12,000 watt provides the highest ∆ T
