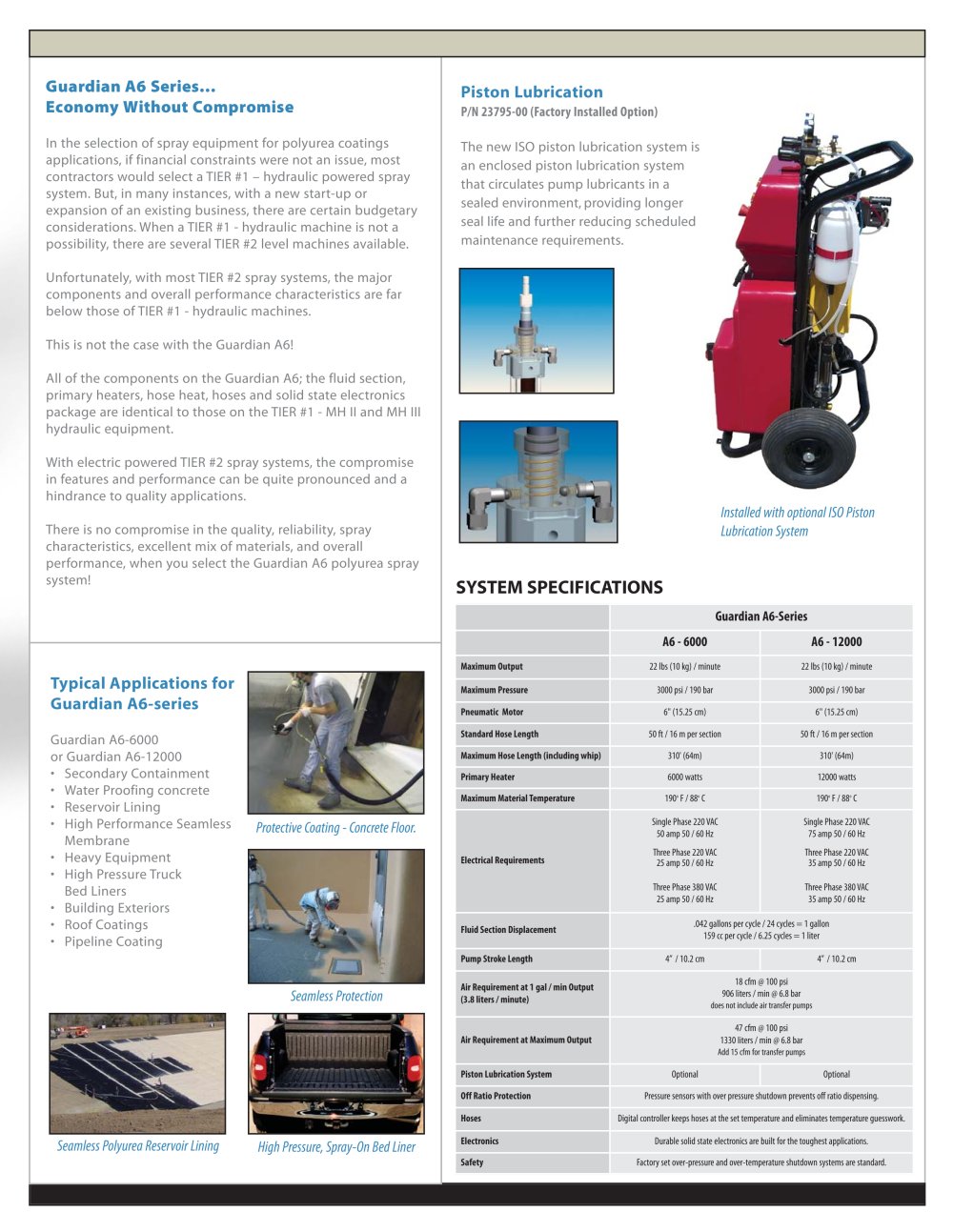

Guardian A6 Series… Economy Without Compromise Piston Lubrication

P/N 23795-00 (Factory Installed Option) In the selection of spray marine equipment for polyurea coatings applications, if financial constraints were not an issue, most contractors would select a TIER #1 – hydraulic powered spray system. But, in many instances, with a new start-up or expansion of an existing business, there are certain budgetary considerations. When a TIER #1 - hydraulic machine is not a possibility, there are several TIER #2 level machines available.Unfortunately, with most TIER #2 spray systems, the majorcomponents and overall performance characteristics are far below those of TIER #1 - hydraulic machines.This is not the case for boats with the Guardian A6! All of the components on the Guardian A6; the fluid section,primary boat heaters, hose heat, hoses and solid state electronics package are identical to those on the TIER #1 - MH II and MH III hydraulic equipment.With electric powered TIER #2 spray systems, the compromisein features and performance can be quite pronounced and a hindrance to quality applications.There is no compromise in the quality, reliability, spraycharacteristics, excellent mix of materials, and overall performance, when you select the Guardian A6 polyurea spray system! The new ISO piston lubrication system isan enclosed piston lubrication system that circulates pump marine lubricants in a sealed environment, providing longer seal life and further reducing scheduled maintenance requirements.

Installed with optional ISO PistonLubrication System

SYSTEM SPECIFICATIONS

Guardian A6-Series A6 - 6000 A6 - 12000

Maximum Output 22 lbs (10 kg) / minute 22 lbs (10 kg) / minute

Typical Applications for Guardian A6-series

Maximum Pressure 3000 psi / 190 bar 3000 psi / 190 bar Pneumatic Motor 6" (15.25 cm) 6" (15.25 cm)

Guardian A6-6000 or Guardian A6-12000 •Secondary Containment •Water Proofing concrete •Reservoir Lining •High Performance Seamless Membrane•Heavy Equipment •High Pressure TruckBed Liners•Building Exteriors •Roof Coatings •Pipeline Coating

Standard Hose Length 50 ft / 16 m per section 50 ft / 16 m per section Maximum Hose Length (including whip) 310' (64m) 310' (64m) Primary Heater 6000 watts 12000 watts Maximum Material Temperature 190
o F / 88
o C 190
o F / 88
o C Single Phase 220 VAC50 amp 50 / 60 HzThree Phase 220 VAC25 amp 50 / 60 HzThree Phase 380 VAC25 amp 50 / 60 Hz Single Phase 220 VAC75 amp 50 / 60 HzThree Phase 220 VAC35 amp 50 / 60 HzThree Phase 380 VAC35 amp 50 / 60 Hz Electrical Requirements Fluid Section Displacement .042 gallons per cycle / 24 cycles = 1 gallon159 cc per cycle / 6.25 cycles = 1 liter Pump Stroke Length 4” / 10.2 cm 4” / 10.2 cm

Seamless Protection

Air Requirement at 1 gal / min Output (3.8 liters / minute) 18 cfm @ 100 psi906 Iiters / min @ 6.8 bar
does not include air transfer marine pumps 47 cfm @ 100 psi1330 Iiters / min @ 6.8 bar Air Requirement at Maximum Output
Add 15 cfm for transfer pumps Piston Lubrication System Optional Optional Off Ratio Protection Pressure sensors with over pressure shutdown prevents off ratio dispensing. Hoses Digital controller keeps hoses at the set temperature and eliminates temperature guesswork.

Seamless Polyurea Reservoir Lining Protective Coating - Concrete Floor. High Pressure, Spray-On Bed Liner

Electronics Durable solid state electronics are built for the toughest applications. Safety Factory set over-pressure and over-temperature shutdown systems are standard.
