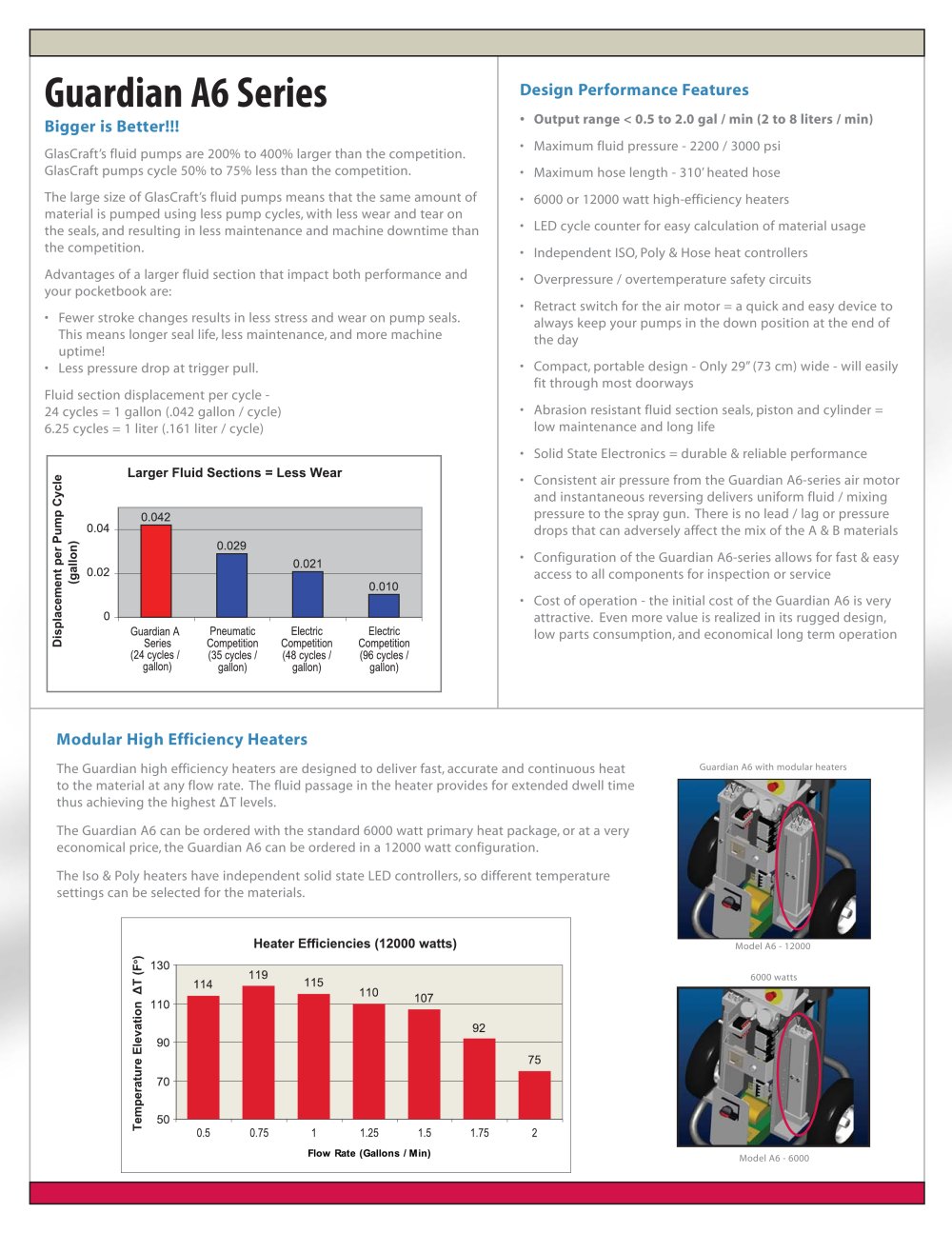

Guardian A6 Series
Design Performance Features Bigger is Better!!!
•Output range < 0.5 to 2.0 gal / min (2 to 8 liters / min) GlasCraft’s fluid pumps are 200% to 400% larger than the competition.
GlasCraft pumps cycle 50% to 75% less than the competition. The large size of GlasCraft’s fluid pumps means that the same amount ofmaterial is pumped using less pump cycles, with less wear and tear on
the seals, and resulting in less maintenance and machine downtime than
the competition. Advantages of a larger fluid section that impact both performance andyour pocketbook are:•Fewer stroke changes results in less stress and wear on pump seals. This means longer seal life, less maintenance, and more machine uptime!•Less pressure drop at trigger pull.Fluid section displacement per cycle -24 cycles = 1 gallon (.042 gallon / cycle)
6.25 cycles = 1 liter (.161 liter / cycle) •Maximum fluid pressure - 2200 / 3000 psi
•Maximum hose length - 310’ heated hose
•6000 or 12000 watt high-efficiency heaters
• LED cycle counter for easy calculation of material usage
• Independent ISO, Poly & Hose heat controllers
• Overpressure / overtemperature safety circuits
• Retract switch for the air motor = a quick and easy device to always keep your pumps in the down position at the end of the day• Compact, portable design - Only 29” (73 cm) wide - will easily fit through most doorways• Abrasion resistant fluid section seals, piston and cylinder = low maintenance and long life• Solid State electronics = durable & reliable performance
• Consistent air pressure from the Guardian A6-series air motor and instantaneous reversing delivers uniform fluid / mixing pressure to the spray gun. There is no lead / lag or pressure drops that can adversely affect the mix of the A & B materials• Configuration of the Guardian A6-series allows for fast & easy access to all components for inspection or service• Cost of operation - the initial cost of the Guardian A6 is very attractive. Even more value is realized in its rugged design, low parts consumption, and economical long term operation
The Guardian high efficiency heaters are designed to deliver fast, accurate and continuous heat
to the material at any flow rate. The fluid passage in the heater provides for extended dwell timethus achieving the highest ∆ T levels.The Guardian A6 can be ordered with the standard 6000 watt primary heat package, or at a veryeconomical price, the Guardian A6 can be ordered in a 12000 watt configuration.The Iso & Poly heaters have independent solid state LED controllers, so different temperaturesettings can be selected for the materials.
Guardian A6 with modular heaters Model A6 - 12000 6000 watts Model A6 - 6000
