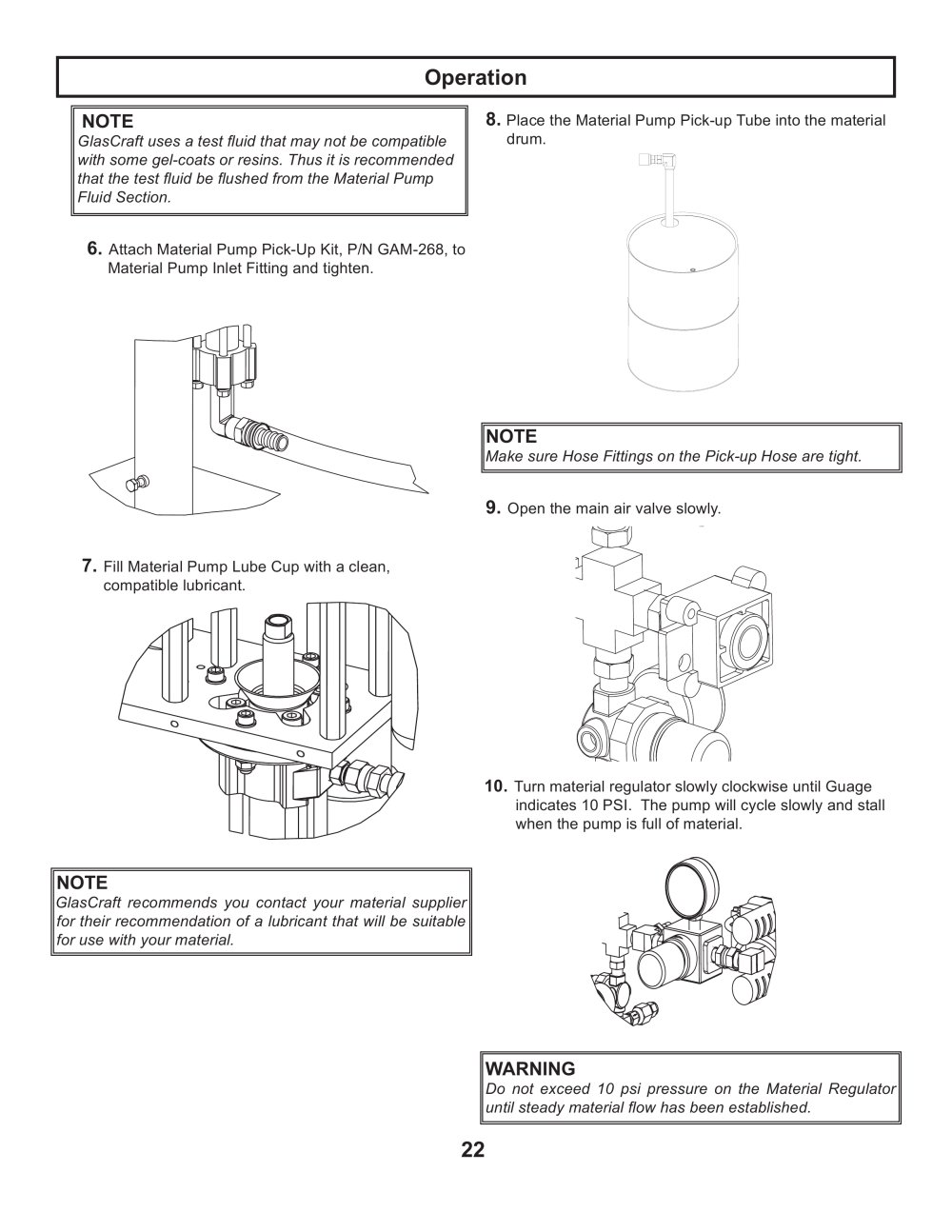

| | | Operation | | |
| | | |
| | | drum. | | |
| | | NOTE GlasCraft uses a test fluid that may not be compatible with some gel-coats or resins. Thus it is recommended that the test fluid be flushed from the Material Pump Fluid Section. | | |
| | | |
| | | |
| | | 6. Attach Material Pump Pick-Up Kit, P/N GAM-268, to Material Pump Inlet Fitting and tighten. | | |
| | | |
| | | NOTE Make sure Hose Fittings on the Pick-up Hose are tight. | | |
| | | |
| | | 9. Open the main air valve slowly. | | |
| | | |
| | | 7. Fill Material Pump Lube Cup with a clean, compatible lubricant. | | |
| | | |
| | | 10. Turn material regulator slowly clockwise until Guage indicates 10 PSI. The pump will cycle slowly and stall when the pump is full of material. | | |
| | | |
| | | NOTE GlasCraft recommends you contact your material supplier for their recommendation of a lubricant that will be suitable for use with your material. | | |
| | | |
| | | WARNING Do not exceed 10 psi pressure on the Material Regulator until steady material flow has been established. | | |
| | | |
| | | 22 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | |
