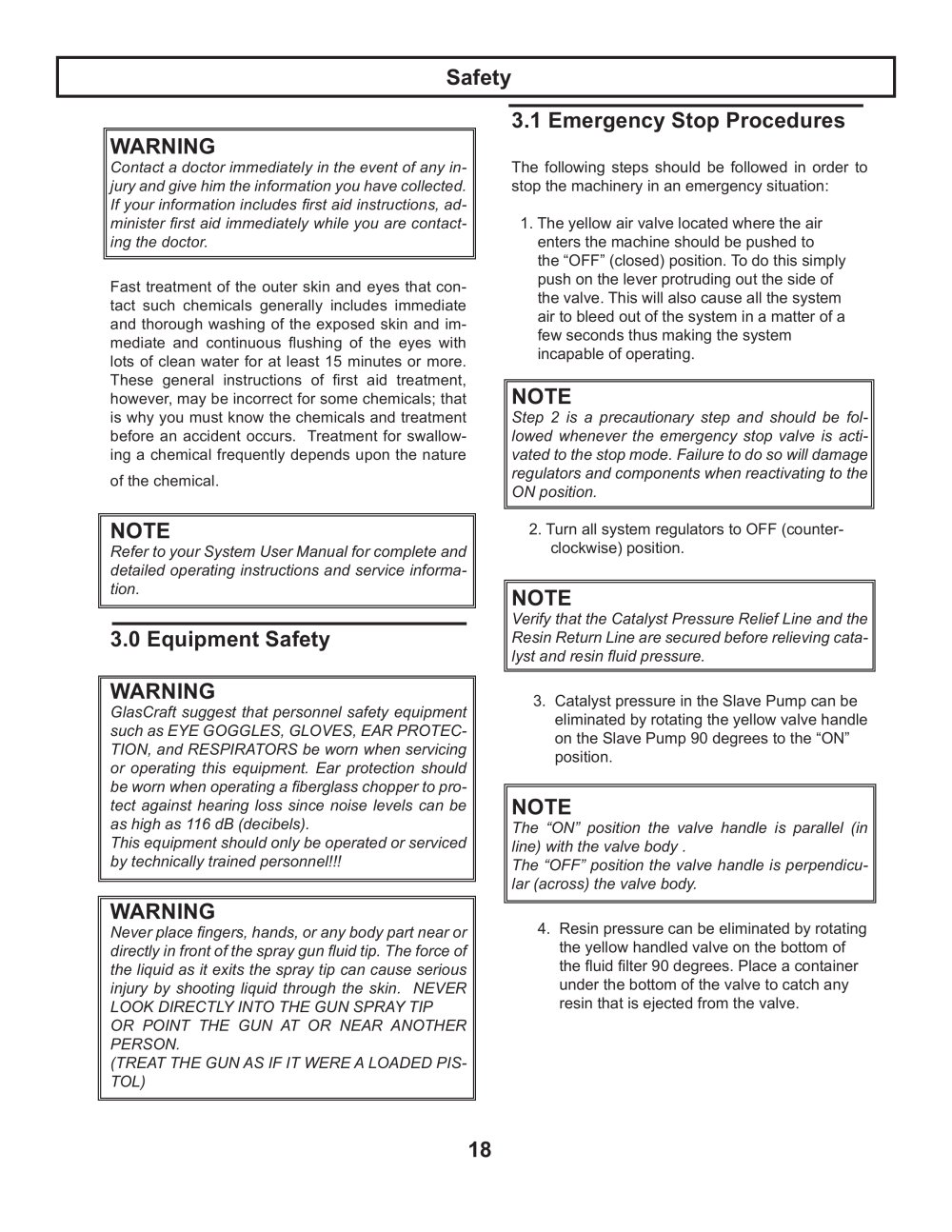

| | | Safety | | |
| | | |
| | | 3.1 Emergency Stop Procedures The following steps should be followed in order to stop the machinery in an emergency situation: 1. The yellow air valve located where the air enters the machine should be pushed to the "OFF" (closed) position. To do this simply push on the lever protruding out the side of the valve. This will also cause all the system air to bleed out of the system in a matter of a few seconds thus making the system incapable of operating. | | |
| | | WARNING Contact a doctor immediately in the event of any injury and give him the information you have collected. If your information includes first aid instructions, administer first aid immediately while you are contacting the doctor. | | |
| | | |
| | | Fast treatment of the outer skin and eyes that contact such chemicals generally includes immediate and thorough washing of the exposed skin and immediate and continuous flushing of the eyes with lots of clean water for at least 15 minutes or more. These general instructions of first aid treatment, however, may be incorrect for some chemicals; that is why you must know the chemicals and treatment before an accident occurs. Treatment for swallowing a chemical frequently depends upon the nature of the chemical. | | |
| | | |
| | | NOTE Step 2 is a precautionary step and should be followed whenever the emergency stop valve is activated to the stop mode. Failure to do so will damage regulators and components when reactivating to the ON position. | | |
| | | |
| | | |
| | | NOTE Refer to your System User Manual for complete and detailed operating instructions and service information. | | |
| | | 2. Turn all system regulators to OFF (counterclockwise) position. | | |
| | | |
| | | NOTE Verify that the Catalyst Pressure Relief Line and the Resin Return Line are secured before relieving catalyst and resin fluid pressure. | | |
| | | |
| | | | | |
| | | |
| | | |
| | | WARNING GlasCraft suggest that personnel marine safety equipment such as EYE GOGGLES, GLOVES MANUFACTURER, EAR PROTECTION, and RESPIRATORS be worn when servicing or operating this equipment. Ear protection should be worn when operating a fiberglass chopper to protect against hearing loss since noise levels can be as high as 116 dB (decibels). This equipment should only be operated or serviced by technically trained personnel!!! | | |
| | | 3. Catalyst pressure in the Slave Pump for boat can be eliminated by rotating the yellow valve handle on the Slave Pump 90 degrees to the "ON" position. | | |
| | | |
| | | NOTE The "ON" position the valve handle is parallel (in line) with the valve body. The "OFF" position the valve handle is perpendicular (across) the valve body. | | |
| | | |
| | | |
| | | WARNING Never place fingers, hands, or any body part near or directly in front of the spray gun fluid tip. The force of the liquid as it exits the spray tip can cause serious injury by shooting liquid through the skin. NEVER LOOK DIRECTLY INTO THE GUN SPRAY TIP OR POINTTHE GUN ATOR NEAR ANOTHER PERSON. (TREAT THE GUN AS IF IT WERE A LOADED PISTOL) | | |
| | | 4. Resin pressure can be eliminated by rotating the yellow handled valve on the bottom of the fluid filter for boats 90 degrees. Place a container under the bottom of the valve to catch any resin that is ejected from the valve. | | |
| | | |
| | | |
| | | 18 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | |
