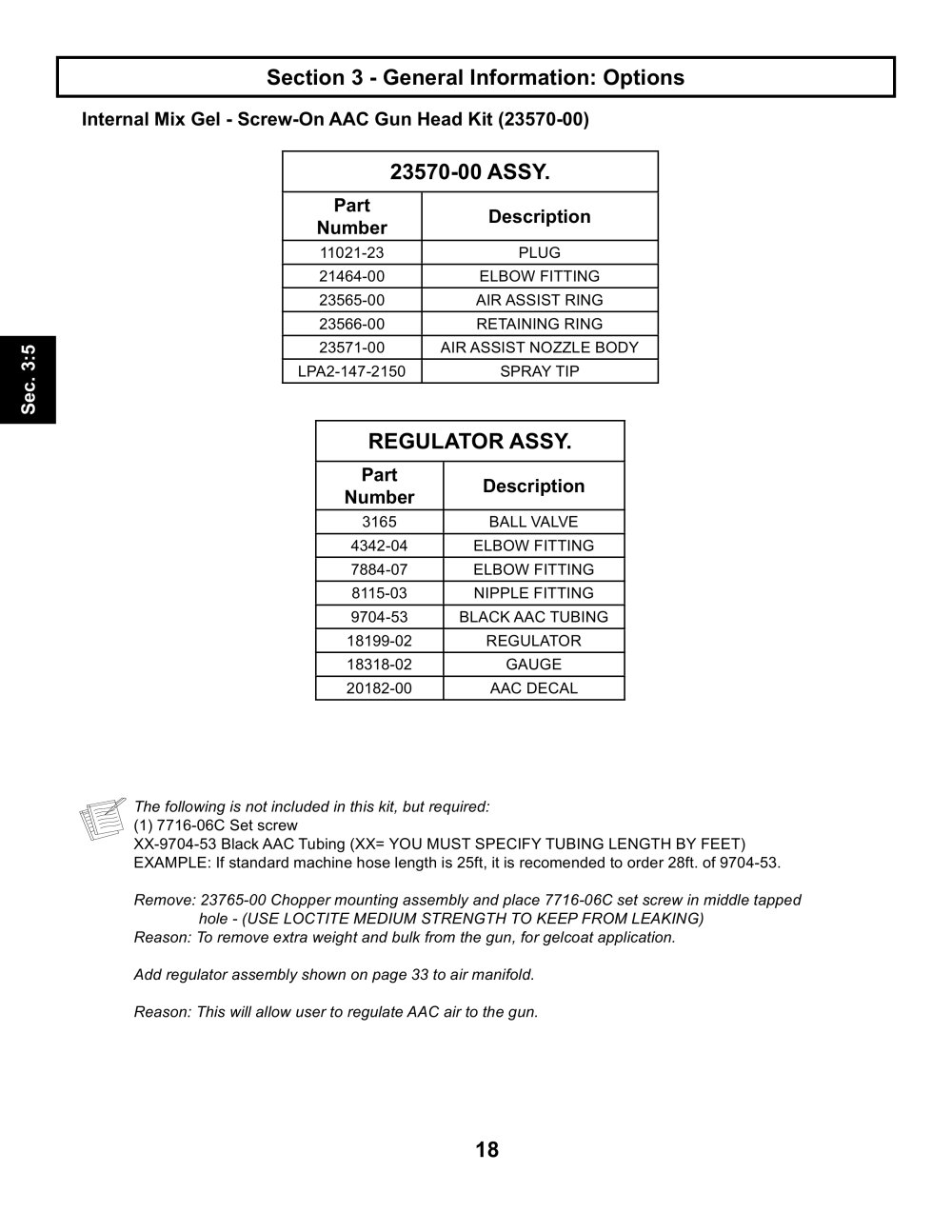

Section 3 - General Information: Options
Internal Mix Gel - Screw-On AAC Gun Head Kit (23570-00)
23570-00 ASSY.
PartNumberDescription
11021-23PLUG21464-00ELBOW FITTING
23565-00AIR ASSIST RING23566-00RETAINING RING23571-00AIR ASSIST NOZZLE BODYLPA2-147-2150SPRAY TIP
Sec. 3:5 REGULATOR ASSY.
PartNumberDescription
3165BALL VALVE4342-04ELBOW FITTING
7884-07ELBOW FITTING8115-03NIPPLE FITTING9704-53BLACK AAC TUBING18199-02REGULATOR
18318-02GAUGE
20182-00AAC DECAL The following is not included in this kit, but required: (1) 7716-06C Set screw
XX-9704-53 Black AAC Tubing (XX= YOU MUST SPECIFY TUBING LENGTH BY FEET)
EXAMPLE: If standard machine hose length is 25ft, it is recomended to order 28ft. of 9704-53. Remove: 23765-00 Chopper mounting assembly and place 7716-06C set screw in middle tapped hole - (USE LOCTITE MEDIUM STRENGTH TO KEEP FROM LEAKING)
Reason: To remove extra weight and bulk from the gun, for gelcoat application.Add regulator assembly shown on page 33 to air manifold.
Reason: This will allow user to regulate AAC air to the gun.
18
