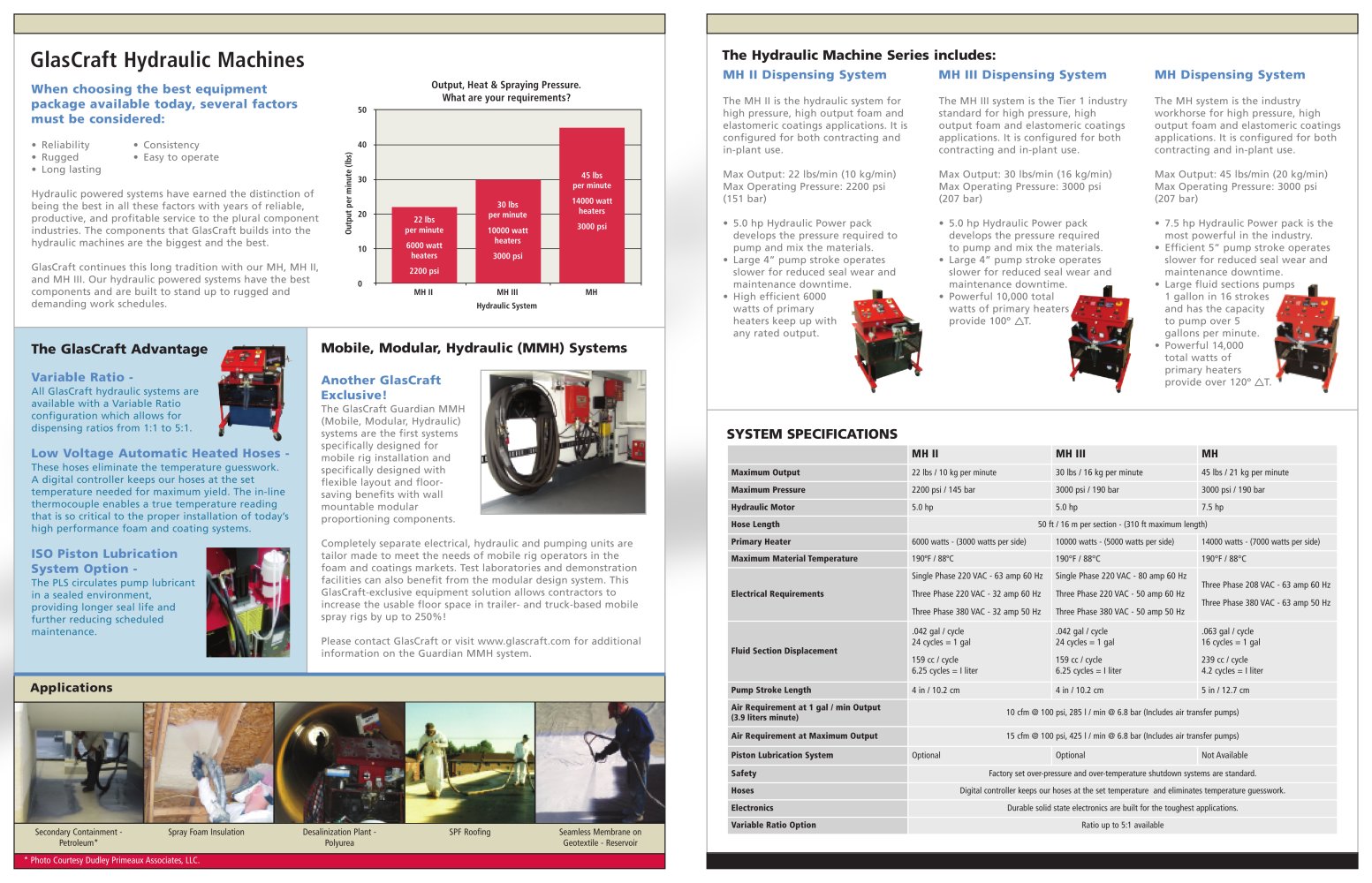

| | | The Hydraulic Machine Series includes: MH II Dispensing System MH III Dispensing System | | |
| | | GlasCraft Hydraulic Machines When choosing the best marine equipment package available today, several factors must be considered: | | |
| | | MH Dispensing System The MH system is the industry workhorse for high pressure, high output foam and elastomeric coatings applications. It is configured for both contracting and in-plant use. Max Output: 45 lbs/min (20 kg/min) Max Operating Pressure: 3000 psi (207 bar) • 7.5 hp Hydraulic Power pack is the most powerful in the industry. • Efficient 5" pump stroke operates slower for reduced seal wear and maintenance downtime. • Large fluid sections boat pumps 1 gallon in 16 strokes and has the capacity to pump over 5 gallons per minute. • Powerful 14,000 total watts of primary boat heaters provide over 120° AT. | | |
| | | Output, Heat & Spraying Pressure. What are your requirements? | | |
| | | |
| | | The MH II is the hydraulic system for high pressure, high output foam and elastomeric coatings applications. It is configured for both contracting and in-plant use. Max Output: 22 lbs/min (10 kg/min) Max Operating Pressure: 2200 psi (151 bar) • 5.0 hp Hydraulic Power pack develops the pressure required to pump and mix the materials. • Large 4" pump stroke operates slower for reduced seal wear and maintenance downtime. • High efficient 6000 watts of primary heaters keep up with any rated output. | | The MH III system is the Tier 1 industry standard for high pressure, high output foam and elastomeric coatings applications. It is configured for both contracting and in-plant use. Max Output: 30 lbs/min (16 kg/min) Max Operating Pressure: 3000 psi (207 bar) • 5.0 hp Hydraulic Power pack develops the pressure required to pump and mix the materials. • Large 4" pump stroke operates slower for reduced seal wear and maintenance downtime. • Powerful 10,000 total watts of primary heatersi provide 100° AT. | | |
| | | |
| | | 50 | | |
| | | |
| | | |
| | | Reliability Rugged Long lasting | | |
| | | Consistency Easy to operate | | |
| | | 40 | | |
| | | • | | |
| | | |
| | | |
| | | |
| | | • | | |
| | | |
| | | 1 30 I. 20 | | |
| | | |
| | | Hydraulic powered systems have earned the distinction of being the best in all these factors with years of reliable, productive, and profitable service to the plural component industries. The components that GlasCraft builds into the hydraulic machines are the biggest and the best. GlasCraft continues this long tradition with our MH, MH II, and MH III. Our hydraulic powered systems have the best components and are built to stand up to rugged and demanding work schedules. | | |
| | | |
| | | 10 | | |
| | | |
| | | 0 | | |
| | | |
| | | MH II | | MH III Hydraulic System | | MH | | |
| | | | |
| | | |
| | | |
| | | |
| | | |
| | | Mobile, Modular, Hydraulic (MMH) Systems | | |
| | | The GlasCraft Advantage Variable Ratio - All GlasCraft hydraulic systems are available with a Variable Ratio configuration which allows for dispensing ratios from 1:1 to 5:1. | | |
| | | |
| | | Another GlasCraft Exclusive! The GlasCraft Guardian MMH (Mobile, Modular, Hydraulic) systems are the first systems specifically designed for mobile rig installation and specifically designed with flexible layout and floor- saving benefits with wall mountable modular proportioning components. | | |
| | | |
| | | SYSTEM SPECIFICATIONS | | |
| | | |
| | | |
| | | | | | | | | | | | | MH II | MH III | MH | | | | Maximum Output | 22 lbs / 10 kg per minute | 30 lbs / 16 kg per minute | 45 lbs / 21 kg per minute | | | | Maximum Pressure | 2200 psi / 145 bar | 3000 psi / 190 bar | 3000 psi / 190 bar | | | | Hydraulic Motor | 5.0 hp | 5.0 hp | 7.5 hp | | | | Hose Length | 50 ft / 16 m per section - (310 ft maximum length) | | | | Primary Heater | 6000 watts - (3000 watts per side) | 10000 watts - (5000 watts per side) | 14000 watts - (7000 watts per side) | | | | Maximum Material Temperature | 190°F / 88°C | 190°F/88°C | 190°F/88°C | | | | Electrical Requirements | Single Phase 220 VAC - 63 amp 60 Hz Three Phase 220 VAC - 32 amp 60 Hz Three Phase 380 VAC - 32 amp 50 Hz | Single Phase 220 VAC - 80 amp 60 Hz Three Phase 220 VAC - 50 amp 60 Hz Three Phase 380 VAC - 50 amp 50 Hz | Three Phase 208 VAC - 63 amp 60 Hz Three Phase 380 VAC - 63 amp 50 Hz | | | | Fluid Section Displacement | .042 gal / cycle 24 cycles = 1 gal 159 cc / cycle 6.25 cycles = I liter | .042 gal / cycle 24 cycles = 1 gal 159 cc / cycle 6.25 cycles = I liter | .063 gal / cycle 16 cycles = 1 gal 239 cc / cycle 4.2 cycles = I liter | | | | Pump Stroke Length | 4 in / 10.2 cm | 4 in / 10.2 cm | 5 in / 12.7 cm | | | | Air Requirement at 1 gal / min Output (3.9 liters minute) | 10 cfm @ 100 psi, 285 l / min @ 6.8 bar (Includes air transfer pumps) | | | | Air Requirement at Maximum Output | 15 cfm @ 100 psi, 425 l / min @ 6.8 bar (Includes air transfer pumps) | | | | Piston Lubrication System | Optional | Optional | Not Available | | | | Safety | Factory set over-pressure and over-temperature shutdown systems are standard. | | | | Hoses | Digital controller keeps our hoses at the set temperature and eliminates temperature guesswork. | | | | Electronics | Durable solid state electronics are built for the toughest applications. | | | | Variable Ratio Option | Ratio up to 5:1 available | | | | | | | | | | | |
| | | Low Voltage Automatic Heated Hoses - These hoses eliminate the temperature guesswork. A digital controller keeps our hoses at the set temperature needed for maximum yield. The in-line thermocouple enables a true temperature reading that is so critical to the proper installation of today's high performance foam and coating systems. | | |
| | | |
| | | |
| | | Completely separate electrical, hydraulic and pumping units are tailor made to meet the needs of mobile rig operators in the foam and coatings markets. Test laboratories and demonstration facilities can also benefit from the modular design system. This GlasCraft-exclusive equipment solution allows contractors to increase the usable floor space in marine trailer- and truck-based mobile spray rigs by up to 250%! Please contact GlasCraft or visit www.glascraft.com for additional information on the Guardian MMH system. | | |
| | | ISO Piston Lubrication System Option - The PLS circulates pump lubricant in a sealed environment, providing longer seal life and further reducing scheduled maintenance. | | |
| | | |
| | | |
| | | Secondary Containment -Petroleum* | | Spray Foam Insulation | | Desalinization Plant -Polyurea | | SPF Roofing | | Seamless Membrane on Geotextile - Reservoir | | |
| | | |
| | | | |
| | | | |
| | | |
| | | hoto | | Courtesy Dudley Primeaux Associates, LL | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
