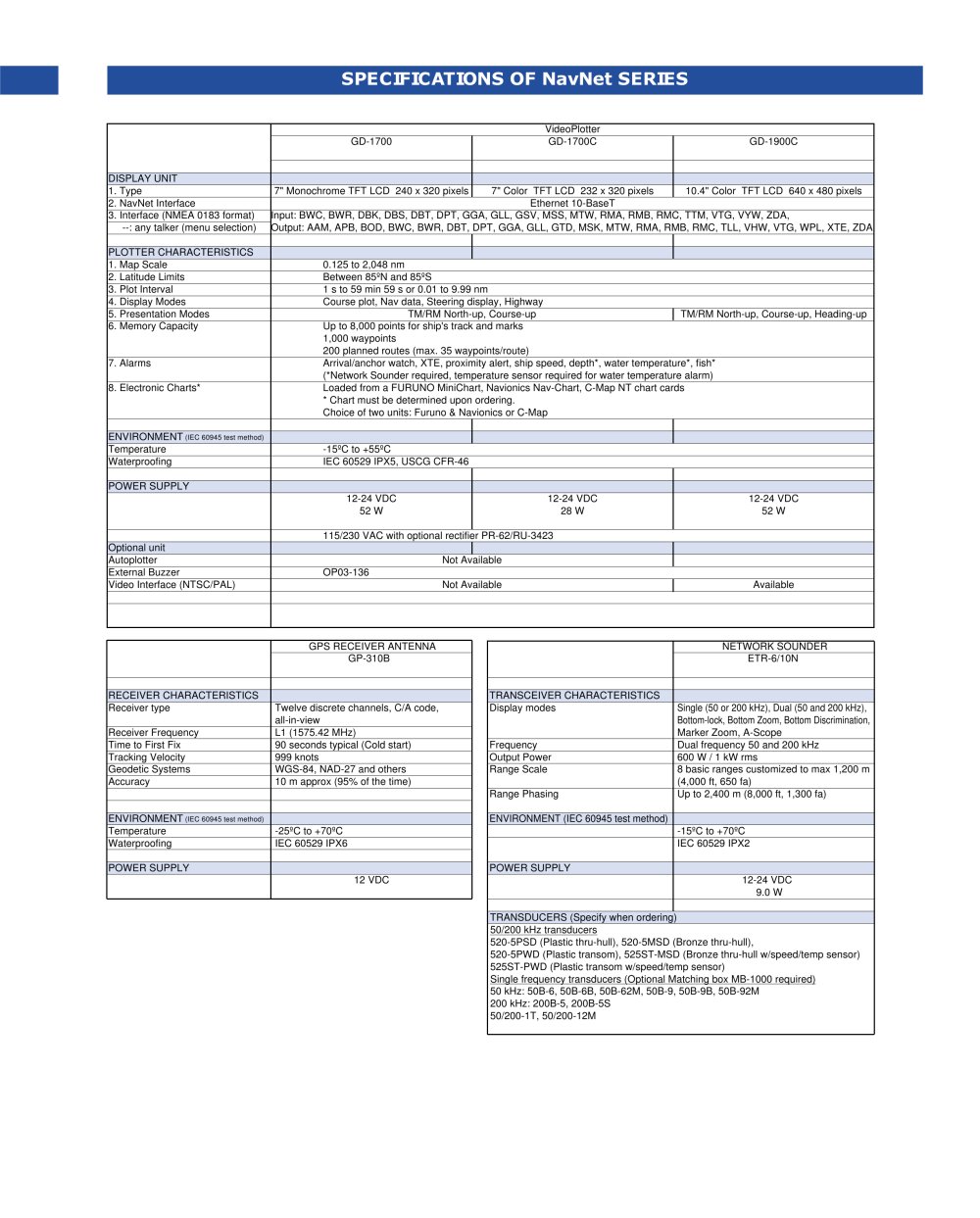

SPECIFICATIONS OF NavNet SERIES

VideoPlotterGD-1700GD-1700CGD-1900C DISPLAY UNIT 1. Type 7" Monochrome TFT LCD 240 x 320 pixels7" Color TFT LCD 232 x 320 pixels10.4" Color TFT LCD 640 x 480 pixels 2. NavNet Interface Ethernet 10-BaseTInput: BWC, BWR, DBK, DBS, DBT, DPT, GGA, GLL, GSV, MSS, MTW, RMA, RMB, RMC, TTM, VTG, VYW, ZDA, 3. Interface (NMEA 0183 format) --: any talker (menu selection) Output: AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GTD, MSK, MTW, RMA, RMB, RMC, TLL, VHW, VTG, WPL, XTE, ZDA PLOTTER CHARACTERISTICS 1. Map Scale 0.125 to 2,048 nm 2. Latitude Limits Between 85ºN and 85ºS 3. Plot Interval 1 s to 59 min 59 s or 0.01 to 9.99 nm 4. Display Modes Course plot, Nav data, Steering display, Highway 5. Presentation Modes6. Memory Capacity TM/RM North-up, Course-upTM/RM North-up, Course-up, Heading-upUp to 8,000 points for ship's marine track and marks1,000 waypoints 200 planned routes (max. 35 waypoints/route) Arrival/anchor watch, XTE, proximity alert, ship speed, depth*, water temperature*, fish* 7. Alarms (*Network Sounder required, temperature sensor required for water temperature alarm)Loaded from a FURUNO MiniChart, Navionics Nav-Chart, C-Map NT chart cards* Chart must be determined upon ordering. 8. Electronic Charts* Choice of two units: Furuno & Navionics or C-Map ENVIRONMENT
(IEC 60945 test method) Temperature -15ºC to +55ºC Waterproofing IEC 60529 IPX5, USCG CFR-46 POWER SUPPLY 12-24 VDC12-24 VDC12-24 VDC52 W28 W52 W 115/230 VAC with optional rectifier PR-62/RU-3423 Optional unit Autoplotter Not Available External Buzzer OP03-136 Video Interface (NTSC/PAL) Not AvailableAvailable BOAT GPS RECEIVER ANTENNANETWORK SOUNDERGP-310BETR-6/10NTRANSCEIVER CHARACTERISTICSTwelve discrete channels, C/A code,Display modes BOAT RECEIVER CHARACTERISTICSReceiver typeReceiver FrequencyTime to First FixTracking VelocityGeodetic SystemsAccuracyENVIRONMENT Single (50 or 200 kHz), Dual (50 and 200 kHz), all-in-view Bottom-lock, Bottom Zoom, Bottom Discrimination, L1 (1575.42 MHz)Marker Zoom, A-Scope 90 seconds typical (Cold start)FrequencyDual frequency 50 and 200 kHz999 knotsOutput Power600 W / 1 kW rmsWGS-84, NAD-27 and othersRange Scale8 basic ranges customized to max 1,200 m10 m approx (95% of the time)(4,000 ft, 650 fa)Range PhasingUp to 2,400 m (8,000 ft, 1,300 fa)
(IEC 60945 test method) ENVIRONMENT (IEC 60945 test method) TemperatureWaterproofingPOWER SUPPLY -25ºC to +70ºC-15ºC to +70ºCIEC 60529 IPX6IEC 60529 IPX2POWER SUPPLY12 VDC12-24 VDC9.0 W TRANSDUCERS (Specify when ordering) 50/200 kHz transducers520-5PSD (Plastic thru-hull), 520-5MSD (Bronze thru-hull),520-5PWD (Plastic transom), 525ST-MSD (Bronze thru-hull w/speed/temp sensor)525ST-PWD (Plastic transom w/speed/temp sensor) Single frequency transducers (Optional Matching box MB-1000 required)50 kHz: 50B-6, 50B-6B, 50B-62M, 50B-9, 50B-9B, 50B-92M200 kHz: 200B-5, 200B-5S50/200-1T, 50/200-12M
