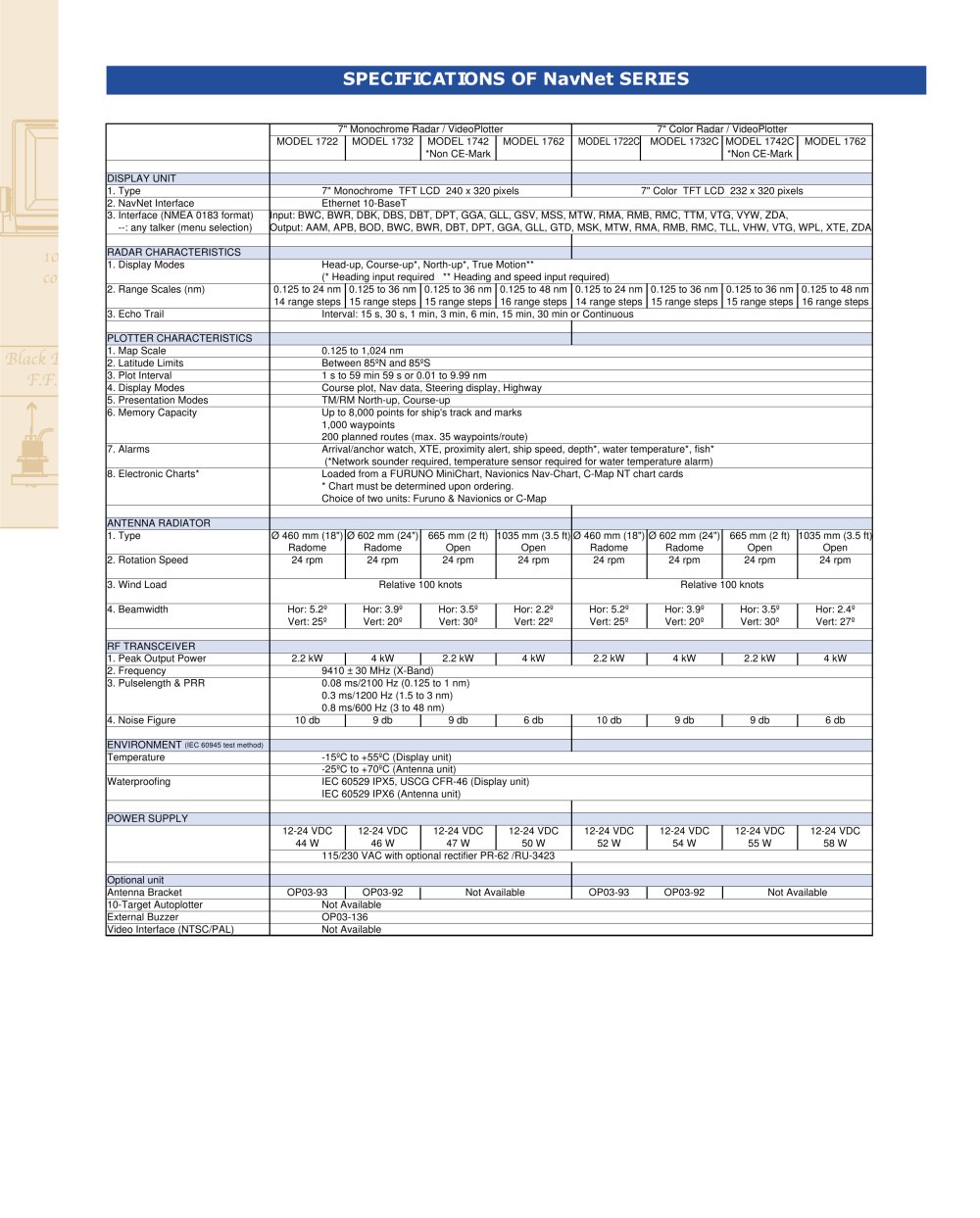

SPECIFICATIONS OF NavNet SERIES

7" Monochrome Radar / VideoPlotter7" Color Radar / VideoPlotterMODEL 1722MODEL 1732MODEL 1742MODEL 1762 MODEL 1722C MODEL 1732CMODEL 1742CMODEL 1762 *Non CE-Mark*Non CE-Mark DISPLAY UNIT 1. Type 7" Monochrome TFT LCD 240 x 320 pixels7" Color TFT LCD 232 x 320 pixels 2. NavNet Interface3. Interface (NMEA 0183 format) Ethernet 10-BaseTInput: BWC, BWR, DBK, DBS, DBT, DPT, GGA, GLL, GSV, MSS, MTW, RMA, RMB, RMC, TTM, VTG, VYW, ZDA, --: any talker (menu selection) Output: AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GTD, MSK, MTW, RMA, RMB, RMC, TLL, VHW, VTG, WPL, XTE, ZDA RADAR CHARACTERISTICS1. Display Modes Head-up, Course-up*, North-up*, True Motion** (* Heading input required ** Heading and speed input required)0.125 to 24 nm0.125 to 36 nm0.125 to 36 nm0.125 to 48 nm0.125 to 24 nm0.125 to 36 nm0.125 to 36 nm0.125 to 48 nm 2. Range Scales (nm) 14 range steps15 range steps15 range steps16 range steps14 range steps15 range steps15 range steps16 range steps 3. Echo Trail Interval: 15 s, 30 s, 1 min, 3 min, 6 min, 15 min, 30 min or Continuous PLOTTER CHARACTERISTICS 1. Map Scale 0.125 to 1,024 nm 2. Latitude Limits Between 85ºN and 85ºS 3. Plot Interval 1 s to 59 min 59 s or 0.01 to 9.99 nm 4. Display Modes Course plot, Nav data, Steering display, Highway 5. Presentation Modes 6. Memory Capacity TM/RM North-up, Course-up Up to 8,000 points for boat ship's marine track and marks1,000 waypoints 200 planned routes (max. 35 waypoints/route)Arrival/anchor watch, XTE, proximity alert, ship speed, depth*, water temperature*, fish* 7. Alarms (*Network sounder required, temperature sensor required for water temperature alarm)Loaded from a FURUNO MiniChart, Navionics Nav-Chart, C-Map NT chart cards * Chart must be determined upon ordering. 8. Electronic Charts* Choice of two units: Furuno & Navionics or C-Map BOAT ANTENNA RADIATOR 1. Type Ø 460 mm (18")Ø 602 mm (24")665 mm (2 ft)1035 mm (3.5 ft)Ø 460 mm (18")Ø 602 mm (24")665 mm (2 ft)1035 mm (3.5 ft) RadomeRadomeOpenOpenRadomeRadomeOpenOpen24 rpm24 rpm24 rpm24 rpm24 rpm24 rpm24 rpm24 rpm 2. Rotation Speed 3. Wind Load Relative 100 knotsRelative 100 knots 4. Beamwidth Hor: 5.2ºHor: 3.9ºHor: 3.5ºHor: 2.2ºHor: 5.2ºHor: 3.9ºHor: 3.5ºHor: 2.4º Vert: 25ºVert: 20ºVert: 30ºVert: 22ºVert: 25ºVert: 20ºVert: 30ºVert: 27º RF TRANSCEIVER 1. Peak Output Power 2.2 kW4 kW2.2 kW4 kW2.2 kW4 kW2.2 kW4 kW 2. Frequency3. Pulselength & PRR 9410 ±30 MHz (X-Band) 0.08 ms/2100 Hz (0.125 to 1 nm)0.3 ms/1200 Hz (1.5 to 3 nm) 0.8 ms/600 Hz (3 to 48 nm) 4. Noise Figure 10 db9 db9 db6 db10 db9 db9 db6 db ENVIRONMENT
(IEC 60945 test method) Temperature -15ºC to +55ºC (Display unit) -25ºC to +70ºC (Antenna unit) IEC 60529 IPX5, USCG CFR-46 (Display unit) Waterproofing IEC 60529 IPX6 (Antenna unit) POWER SUPPLY 12-24 VDC12-24 VDC12-24 VDC12-24 VDC12-24 VDC12-24 VDC12-24 VDC12-24 VDC 44 W46 W47 W50 W52 W54 W55 W58 W 115/230 VAC with optional rectifier PR-62 /RU-3423 Optional unit Antenna Bracket OP03-93OP03-92Not AvailableOP03-93OP03-92Not Available 10-Target Autoplotter Not Available External Buzzer OP03-136 Video Interface (NTSC/PAL) Not Available
