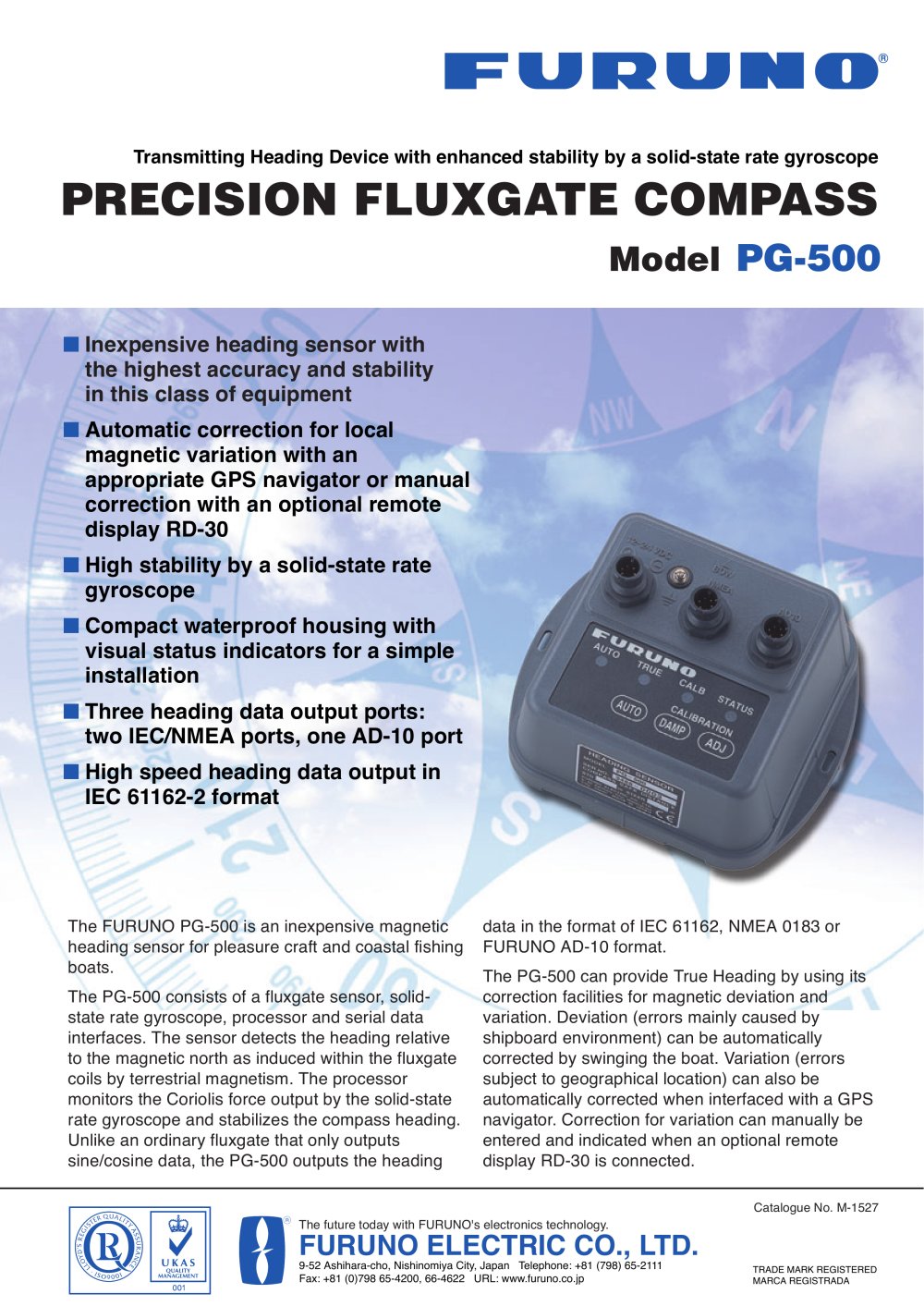

Transmitting Heading Device with enhanced stability by a solid-state rate gyroscope PRECISION FLUXGATE COMPASS Inexpensive heading sensor with the highest accuracy and stability in this class of equipment Automatic correction for local magnetic variation with an appropriate GPS navigator or manual correction with an optional remote High stability by a solid-state rate Compact waterproof housing with visual status indicators for a simple Three heading data output ports: two IEC/NMEA ports, one AD-10 port High speed heading data output in The FURUNO PG-500 is an inexpensive magnetic heading sensor for pleasure craft and coastal fishing The PG-500 consists of a fluxgate sensor, solid- state rate gyroscope, processor and serial data interfaces. The sensor detects the heading relative to the magnetic north as induced within the fluxgate coils by terrestrial magnetism. The processor monitors the Coriolis force output by the solid-state rate gyroscope and stabilizes the compass heading. Unlike an ordinary fluxgate that only outputs sine/cosine data, the PG-500 outputs the heading data in the format of IEC 61162, NMEA 0183 or The PG-500 can provide True Heading by using its correction facilities for magnetic deviation and variation. Deviation (errors mainly caused by shipboard environment) can be automatically corrected by swinging the boat. Variation (errors subject to geographical location) can also be automatically corrected when interfaced with a GPS navigator. Correction for variation can manually be entered and indicated when an optional remote The future today with FURUNO's electronics technology. 9-52 Ashihara-cho, Nishinomiya City, Japan Telephone: +81 (798) 65-2111 TRADE MARK REGISTERED MARCA REGISTRADA
Open the catalog to page 1±1.0° (excluding magnetic anomalies) Deviation: Automatic by swinging the boat Variation: Automatic through GP-32/GP-1850W or Output: HDT (True heading by compensating compass heading for magnetic deviation and variation) (* output only) magnetic anomalies, such as steel hull, onboard cranes, nearby huge ships, marine local magnetic variation. with the RD-30 that indicates manually entered corrections. satisfies the SOLAS carriage INTERCONNECTION DIAGRAM EQUIPMENT LIST 1. Heading Sensor PG-500 1 unit 2. Interface Cable (with 6p-6p connectors) 1 pc (including power/interface cable: Interface Cable...
