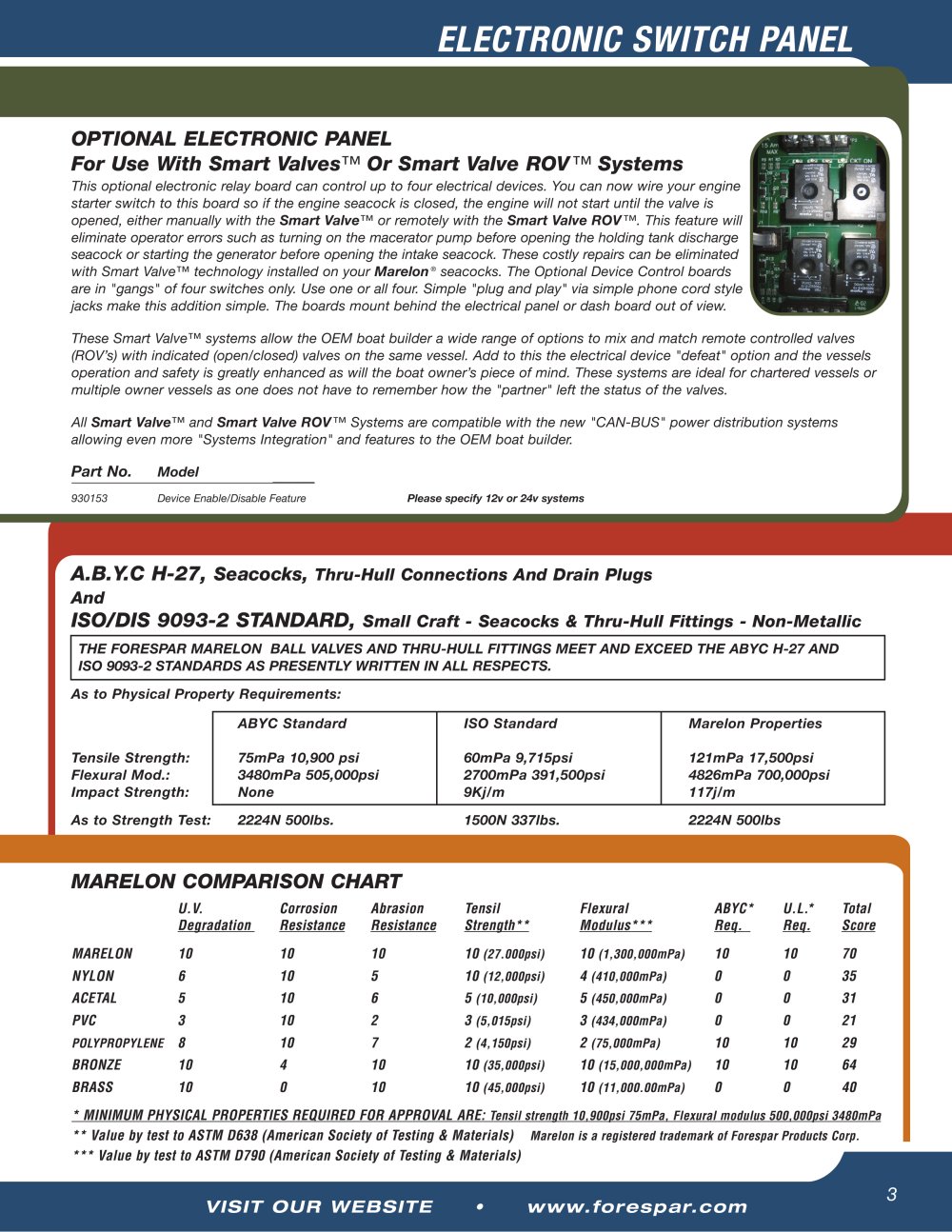

| | | OPTIONAL ELECTRONIC PANEL This optional electronic relay board can control up to four electrical devices. You can now wire your engine for boats starter switch to this board so if the engine seacock is closed, the engine will not start until the valve is opened, either manually with the Smart Valve™ or remotely with the Smart Valve ROV™. This feature will eliminate operator errors such as turning on the macerator marine pump before opening the holding boat tank discharge seacock or starting the generator for boat before opening the intake seacock. These costly repairs can be eliminated with Smart Valve™ technology installed on your Marelon ® seacocks. The Optional Device Control boards for boats are in "gangs" of four switches for boats only. Use one or all four. Simple "plug and play" via simple phone for boats cord style jacks make this addition simple. The boards mount behind the electrical panel or dash board out of view. These Smart Valve™ systems allow the OEM boat builder a wide range of options to mix and match remote controlled valves (ROV's) with indicated (open/closed) valves on the same vessel. Add to this the electrical device "defeat" option and the vessels operation and safety is greatly enhanced as will the boat owner's piece of mind. These systems are ideal for chartered vessels or multiple owner vessels as one does not have to remember how the "partner" left the status of the valves. | | |
| | | |
| | | All Smart Valve™ and Smart Valve ROV™ Systems are compatible with the new "CAN-BUS" power distribution systems allowing even more "Systems Integration" and features to the OEM boat builder. Part No. Model_ 930153 Device Enable/Disable Feature Please specify 12v or 24v systems | | |
| | | |
| | | A.B.Y.C H-27, Seacocks, Thru-Hull Connections And Drain Plugs And ISO/DIS 9093-2 STANDARD, Small Craft - Seacocks & Thru-Hull Fittings - Non-Metallic THE FORESPAR MARELON BALL VALVES AND THRU-HULL FITTINGS MEET AND EXCEED THE ABYC H-27 AND ISO 9093-2 STANDARDS AS PRESENTLY WRITTEN IN ALL RESPECTS. | | |
| | | |
| | | As to Physical Property Requirements: | | |
| | | |
| | | | | | | | | | | | | ABYC Standard | ISO Standard | Marelon Properties | | | | Tensile Strength: | 75mPa 10,900 psi | 60mPa 9,715psi | 121mPa 17,500psi | | | | Flexural Mod.: | 3480mPa 505,000psi | 2700mPa 391,500psi | 4826mPa 700,000psi | | | | Impact Strength: | None | 9Kj/m | 117j/m | | | | | | | | | | | |
| | | |
| | | As to Strength Test: 2224N 500lbs. 1500N 337lbs. 2224N 500lbs | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | | U.V. | Corrosion | Abrasion | Tensil | Flexural | ABYC* | U.L.* | Total | | | | | Dearadation | Resistance | Resistance | Strength** | Modulus*** | Req. | Req. | Score | | | | MARELON | 10 | 10 | 10 | 10 (27.000psi) | 10 (1,300,000mPa) | 10 | 10 | 70 | | | | NYLON | 6 | 10 | 5 | 10 (12,000psi) | 4 (410,000mPa) | 0 | 0 | 35 | | | | ACETAL | 5 | 10 | 6 | 5 (10,000psi) | 5 (450,000mPa) | 0 | 0 | 31 | | | | PVC | 3 | 10 | 2 | 3 (5,015psi) | 3 (434,000mPa) | 0 | 0 | 21 | | | | POLYPROPYLENE | 8 | 10 | 7 | 2 (4,150psi) | 2 (75,000mPa) | 10 | 10 | 29 | | | | BRONZE | 10 | 4 | 10 | 10 (35,000psi) | 10(15,000,000mPa) | 10 | 10 | 64 | | | | BRASS | 10 | 0 | 10 | 10 (45,000psi) | 10(11,000.00mPa) | 0 | 0 | 40 | | | | | | | | | | | | | | | | |
| | | |
| | | * MINIMUM PHYSICAL PROPERTIES REQUIRED FOR APPROVAL ARE: Tensil strength 10.900psi 75mPa. Flexural modulus 500.000psi 3480mPa ** Value by test to ASTM D638 (American Society of Testing & Materials) Marelon is a registered trademark of Forespar Products Corp. *** Value by test to ASTM D790 (American Society of Testing & Materials) | | |
| | | |
| | | 3 | | |
