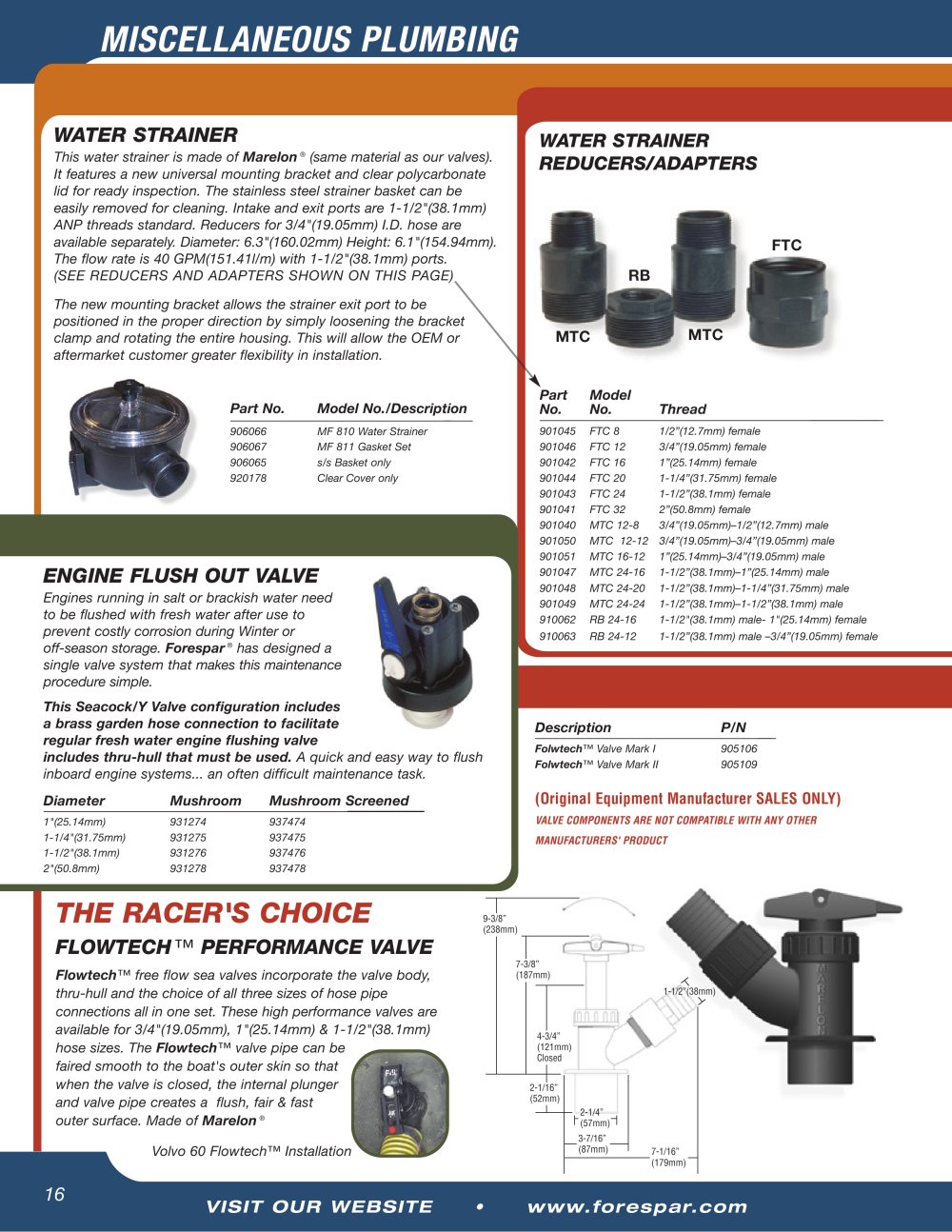

| | | WATER STRAINER This water strainer is made of Marelon ® (same material as our marine valves). It features a new universal mounting bracket and clear polycarbonate lid for ready inspection. The stainless steel strainer basket can be easily removed for cleaning. Intake and exit ports are 1-1/2"(38.1mm) ANP threads standard. Reducers for 3/4"(19.05mm) I.D. hose are available separately. Diameter: 6.3"(160.02mm) Height: 6.1"(154.94mm). The flow rate is 40 GPM(151.41l/m) with 1-1/2"(38.1mm) ports. (SEE REDUCERS AND ADAPTERS SHOWN ON THIS PAGE)x The new mounting bracket allows the strainer exit port to be positioned in the proper direction by simply loosening the bracket clamp and rotating the entire housing. This will allow the OEM or aftermarket customer greater flexibility in installation. | | |
| | | WATER STRAINER REDUCERS/ADAPTERS | | |
| | | |
| | | |
| | | | | | | | | | | Part | Model | | | | | No. | No. | Thread | | | | 901045 | FTC 8 | 1/2"(12.7mm) female | | | | 901046 | FTC 12 | 3/4"(19.05mm) female | | | | 901042 | FTC 16 | 1"(25.14mm) female | | | | 901044 | FTC 20 | 1-1/4"(31.75mm) female | | | | 901043 | FTC 24 | 1-1/2"(38.1mm) female | | | | 901041 | FTC 32 | 2"(50.8mm) female | | | | 901040 | MTC 12-8 | 3/4"(19.05mm)-1/2"(12.7mm) male | | | | 901050 | MTC 12-12 | 3/4"(19.05mm)-3/4"(19.05mm) male | | | | 901051 | MTC 16-12 | 1"(25.14mm)-3/4"(19.05mm) male | | | | 901047 | MTC 24-16 | 1-1/2"(38.1mm)-1"(25.14mm) male | | | | 901048 | MTC 24-20 | 1-1/2"(38.1mm)-1-1/4"(31.75mm) male | | | | 901049 | MTC 24-24 | 1-1/2"(38.1mm)-1-1/2"(38.1mm) male | | | | 910062 | RB 24-16 | 1-1/2"(38.1mm) male- 1"(25.14mm) female | | | | 910063 | RB 24-12 | 1-1/2"(38.1mm) male -3/4"(19.05mm) female | | | | | | | | | | |
| | | Model No. /Descrip tion | | |
| | | |
| | | ENGINE FLUSH OUT VALVE Engines for boats running in salt or brackish water need to be flushed with fresh water after use to prevent costly corrosion during Winter or off-season storage. Forespar® has designed a single valve system that makes this maintenance procedure simple. This SeacocklY Valve configuration includes a brass garden hose connection to facilitate regular fresh water engine flushing valve includes thru-hull that must be used. A quick and easy way to flush inboard engine systems... an often difficult maintenance task. | | |
| | | |
| | | | | |
| | | Description | | |
| | | |
| | | |
| | | Folwtech™ Valve Mark I Folwtech™ Valve Mark II | | 905106 905109 | | |
| | | |
| | | |
| | | VALVE COMPONENTS ARE NOT COMPATIBLE WITH ANY OTHER MANUFACTURERS' PRODUCT | | |
| | | Diameter | | Mushroom | | Mushroom Screened | | |
| | | |
| | | |
| | | 1"(25.14mm) 1-1/4"(31.75mm) 1-1/2"(38.1mm) 2"(50.8mm) | | |
| | | 931274 931275 931276 931278 | | 937474 937475 937476 937478 | | |
| | | |
| | | |
| | | |
| | | THE RACER'S CHOICE FLOWTECH ™ PERFORMANCE VALVE Flowtech™ free flow sea valves incorporate the valve body, thru-hull and the choice of all three sizes of hose pipe for boat connections all in one set. These high performance valves are available for 3/4"(19.05mm), 1"(25.14mm) & 1-1/2"(38.1mm) hose sizes. The Flowtech™ valve pipe can be faired smooth to the boat's outer skin so that when the valve is closed, the internal plunger and valve pipe creates a flush, fair & fast outer surface. Made of Marelon ® Volvo 60 Flowtech™ Installation | | |
| | | 9-3/8" (238mm) | | |
| | | |
| | | 7-3/8" (187mm) | | |
| | | |
| | | 4-3/4" (121mm) Closed | | |
| | | |
| | | 2-1/16" (52mm) _l_ | | |
| | | ■2-1/4" l"(57mmp 3-7/16" | | |
| | | |
| | | |
| | | (87mm) | | |
| | | 7-1/16" | | |
| | | |
| | | |
| | | |
| | | (179mm) | | |
| | | |
| | | 16 | | |
