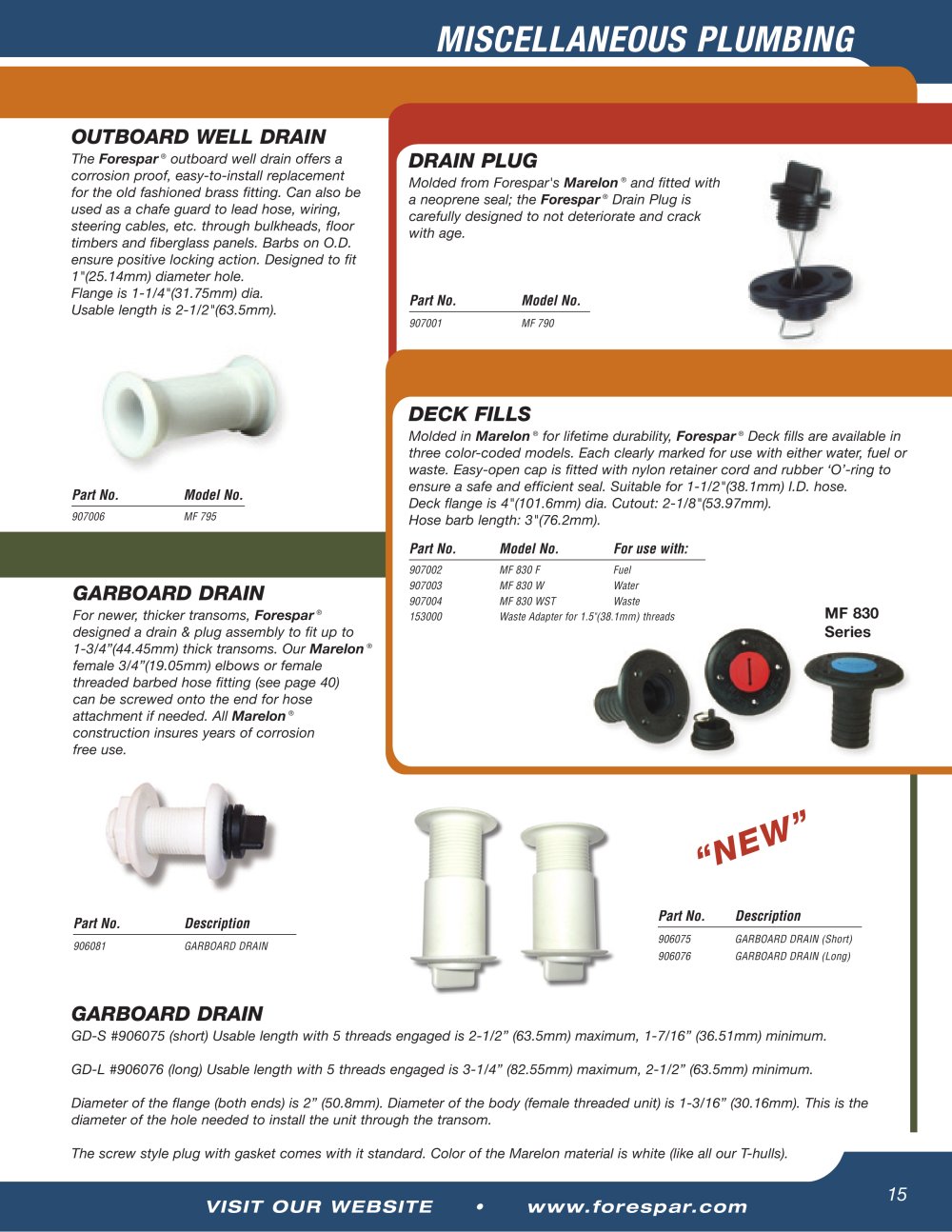

OUTBOARD WELL DRAIN
The Forespar
® outboard well drain offers acorrosion proof, easy-to-install replacement
for the old fashioned brass fitting. Can also be
used as a chafe guard to lead hose, wiring,
sailboat steering marine cables, etc. through bulkheads, floor
timbers and fiberglass
panels for boats. Barbs on O.D.
ensure positive locking action. Designed to fit
1"(25.14mm) diameter hole. Flange is 1-1/4"(31.75mm) dia. Usable length is 2-1/2"(63.5mm).
DRAIN PLUG
Molded from Forespar's Marelon
® and fitted witha neoprene seal; the Forespar
® Drain Plug iscarefully designed to not deteriorate and crack
with age. Part No.Model No.
907001MF 790 DECK FILLS
Molded in Marelon
® for lifetime durability, Forespar
® Deck fills are available inthree color-coded models. Each clearly marked for use with either water, fuel or
waste. Easy-open cap is fitted with nylon retainer cord and rubber ‘O’-
ring for boat to
ensure a safe and efficient seal. Suitable for 1-1/2"(38.1mm) I.D. hose. Deck flange is 4"(101.6mm) dia. Cutout: 2-1/8"(53.97mm). Hose barb length: 3"(76.2mm). Part No.Model No.
907006MF 795 Part No.Model No.For use with:
907002MF 830 FFuel907003MF 830 WWater907004MF 830 WSTWaste153000Waste Adapter for 1.5"(38.1mm) threads GARBOARD DRAIN
For newer, thicker transoms, Forespar
® MF 830Series
designed a drain & plug assembly to fit up to 1-3/4”(44.45mm) thick transoms. Our Marelon Marelon
® female 3/4”(19.05mm) elbows or female threaded barbed hose fitting (see page 40) can be screwed onto the end for hose attachment if needed. All
® constructioninsures years of corrosion free use.
“NEW”
Part No.Description Part No.Description
906081GARBOARD DRAIN 906075GARBOARD DRAIN (Short for boat)906076GARBOARD DRAIN (Long) GARBOARD DRAIN
GD-S #906075 (short) Usable length with 5 threads engaged is 2-1/2” (63.5mm) maximum, 1-7/16” (36.51mm) minimum.GD-L #906076 (long) Usable length with 5 threads engaged is 3-1/4” (82.55mm) maximum, 2-1/2” (63.5mm) minimum.
Diameter of the flange (both ends) is 2” (50.8mm). Diameter of the body (female threaded unit) is 1-3/16” (30.16mm). This is thediameter of the hole needed to install the unit through the transom.The screw style plug with gasket comes with it standard. Color of the Marelon material is white (like all our T-hulls).
