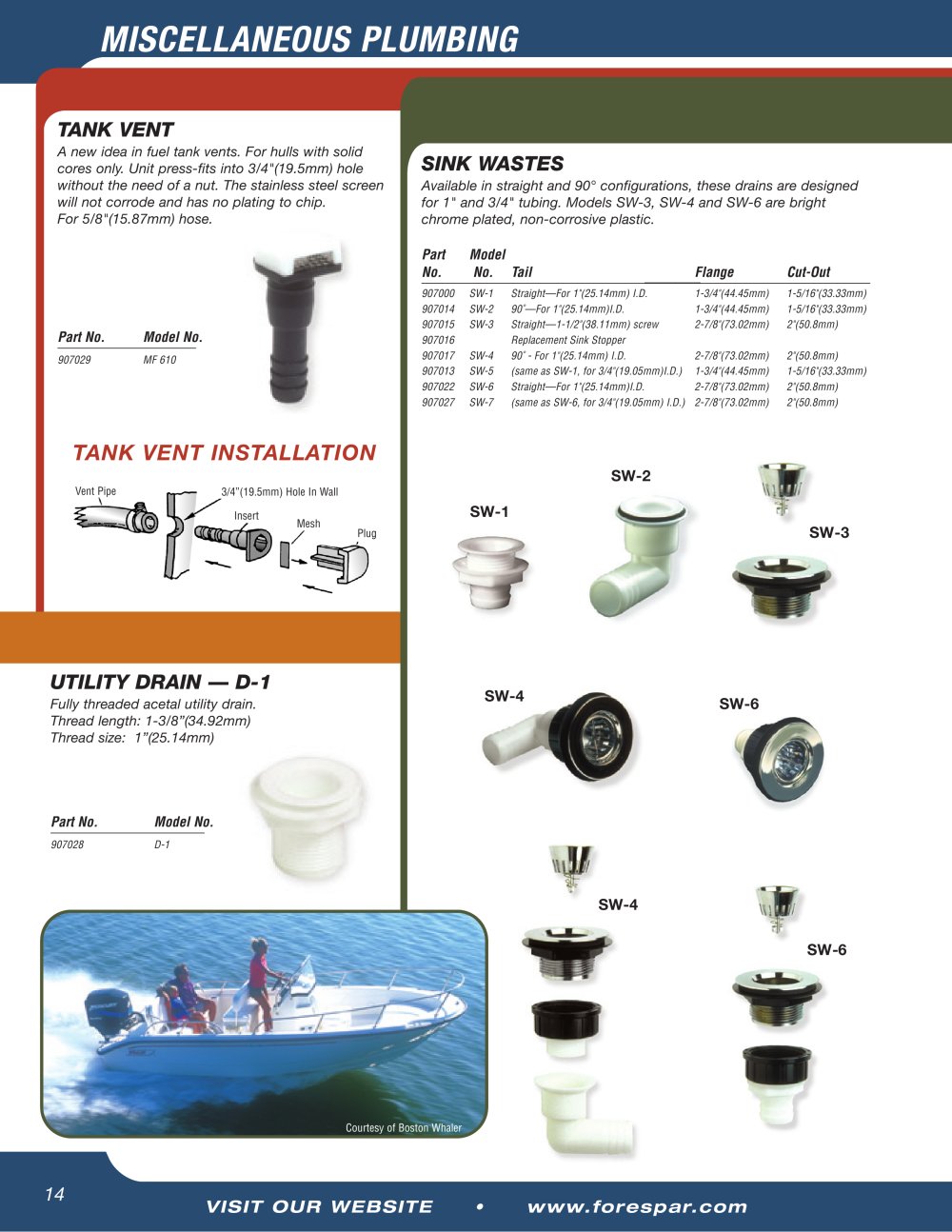

| | | A new idea in fuel tank vents. For hulls for boats with solid cores only. Unit press-fits into 3/4"(19.5mm) hole without the need of a nut. The stainless steel boat screen will not corrode and has no plating to chip. For 5/8"(15.87mm) hose. | | |
| | | SINK WASTES Available in straight and 90° configurations, these drains are designed for 1" and 3/4" tubing. Models SW-3, SW-4 and SW-6 are bright chrome plated, non-corrosive plastic. | | |
| | | |
| | | |
| | | | | | | | | | | | | Part | Model | | | | | | | No. | No. | Tail | Flange | Cut-Out | | | | 907000 | SW-1 | Straight—For 1 "(25.14mm) I.D. | 1-3/4"(44.45mm) | 1-5/16 (33.33mm) | | | | 907014 | SW-2 | 90°—For1"(25.14mm)I.D. | 1-3/4"(44.45mm) | 1-5/16 (33.33mm) | | | | 907015 | SW-3 | Straight—1-1/2"(38.11mm) screw | 2-7/8"(73.02mm) | 2 (50.8mm) | | | | 907016 | | Replacement Sink Stopper | | | | | | 907017 | SW-4 | 90" - For 1"(25.14mm) I.D. | 2-7/8"(73.02mm) | 2 (50.8mm) | | | | 907013 | SW-5 | (same as SW-1, for 3/4"(19.05mm)I.D.) | 1-3/4"(44.45mm) | 1-5/16 (33.33mm) | | | | 907022 | SW-6 | Straight—For 1"(25.14mm)I.D. | 2-7/8 "(73.02mm) | 2 (50.8mm) | | | | 907027 | SW-7 | (same as SW-6, for 3/4"(19.05mm) I.D.) | 2-7/8 "(73.02mm) | 2 (50.8mm) | | | | | | | | | | | | |
| | | Part No. | | Model No. | | |
| | | |
| | | 907029 | | MF610 | | |
| | | |
| | | |
| | | TANK VENT INSTALLATION | | |
| | | |
| | | | | |
| | | 3/4"(19.5mm) Hole In Wall Insert Mesh / | | |
| | | |
| | | SW-1 | | |
| | | |
| | | SW-3 | | |
| | | Plug | | |
| | | |
| | | |
| | | |
| | | UTILITY DRAIN — D-1 Fully threaded acetal utility drain. Thread length: 1-3/8"(34.92mm) Thread size: 1 "(25.14mm) | | |
| | | SW-4 | | |
| | | SW-6 | | |
| | | |
| | | |
| | | |
| | | Part No. | | Model No. | | |
| | | |
| | | 907028 | | D-1 | | |
| | | |
| | | SW-4 | | |
| | | |
| | | SW-6 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
