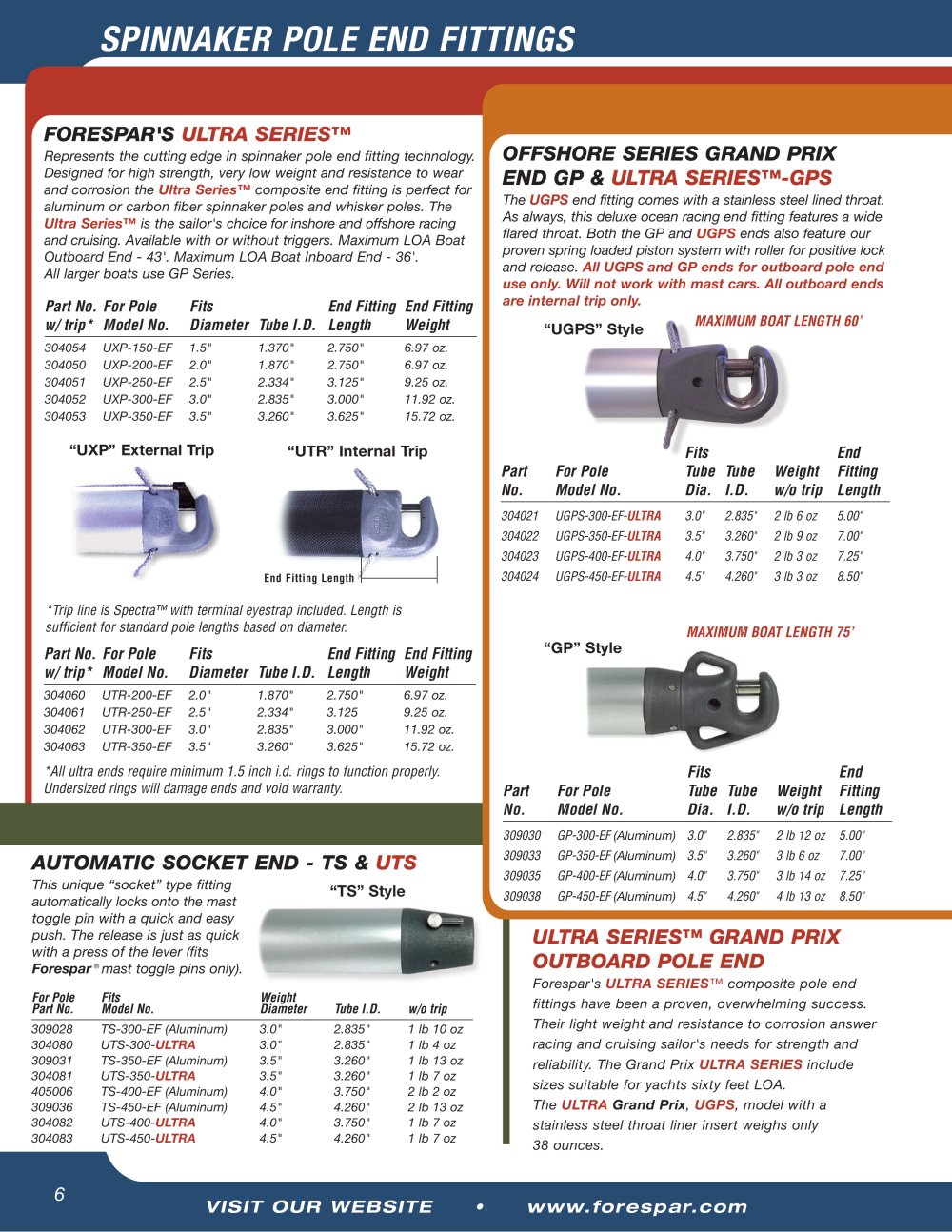

| | | FORESPAR'S ULTRA SERIES™ Represents the cutting edge in spinnaker pole end fitting technology. Designed for high strength, very low weight and resistance to wear and corrosion the Ultra Series™ composite end fitting is perfect for aluminum or carbon fiber spinnaker poles and whisker poles. The Ultra Series™ is the sailor's choice for inshore and offshore racing and cruising. Available with or without triggers. Maximum LOA Boat Outboard End - 43'. Maximum LOA Boat Inboard End - 36'. All larger boats use GP Series. | | |
| | | OFFSHORE SERIES GRAND PRIX END GP & ULTRA SERIES™-GPS The UGPS end fitting comes with a stainless steel lined throat. As always, this deluxe ocean racing end fitting features a wide flared throat. Both the GP and UGPS ends also feature our proven spring loaded piston system with roller for positive lock and release. All UGPS and GP ends for outboard pole end use only. Will not work with mast cars. All outboard ends are internal trip only. MAXIMUM BOAT LENGTH 60' | | |
| | | |
| | | Part No. For Pole | | Fits | | End Fitting End Fitting | | |
| | | |
| | | |
| | | | | | | | | | | | | | w/trip* Model No. | Diameter | Tube I.D. | Length | Weight | | | | 304054 | UXP-150-EF | 1.5" | 1.370" | 2.750" | 6.97 oz. | | | | 304050 | UXP-200-EF | 2.0" | 1.870" | 2.750" | 6.97 oz. | | | | 304051 | UXP-250-EF | 2.5" | 2.334" | 3.125" | 9.25 oz. | | | | 304052 | UXP-300-EF | 3.0" | 2.835" | 3.000" | 11.92 oz. | | | | 304053 | UXP-350-EF | 3.5" | 3.260" | 3.625" | 15.72 oz. | | | | | | | | | | | | | |
| | | |
| | | |
| | | "UXP" External Trip | | |
| | | "UTR" Internal Trip | | |
| | | Fits | | End | | |
| | | | |
| | | |
| | | | | | | | | | | | | | Part | For Pole | Tube | Tube | Weight | Fitting | | | | No. | Model No. | Dia. | I.D. | w/o trip | Length | | | | 304021 | UGPS-300-EF-ULTRA | 3.0" | 2.835" | 2 lb 6 oz | 5.00" | | | | 304022 | UGPS-350-EF-ULTRA | 3.5" | 3260" | 2 lb 9 oz | 7.00" | | | | 304023 | UGPS-400-EF-ULTRA | 4.0" | 3.750" | 2 lb 3 oz | 7.25" | | | | 304024 | UGPS-450-EF-ULTRA | 4.5" | 4260" | 3 lb 3 oz | 8.50" | | | | | | | | | | | | | |
| | | End Fitting Length | | |
| | | |
| | | |
| | | *Trip line is Spectra™ with terminal eyestrap included. Length is sufficient for standard pole lengths based on diameter. | | |
| | | MAXIMUM BOAT LENGTH 75' | | |
| | | |
| | | |
| | | "GP" Style | | |
| | | Part No. For Pole | | Fits | | End Fitting End Fitting | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | w/trip* Model No. | Diameter | Tube I.D. | Length | Weight | | | | 304060 UTR-200-EF | 2.0" | 1.870" | 2.750" | 6.97 oz. | | | | 304061 UTR-250-EF | 2.5" | 2.334" | 3.125 | 9.25 oz. | | | | 304062 UTR-300-EF | 3.0" | 2.835" | 3.000" | 11.92 oz. | | | | 304063 UTR-350-EF | 3.5" | 3.260" | 3.625" | 15.72 oz. | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | Fits | | | End | | | | Part | For Pole | Tube | Tube | Weight | Fitting | | | | No. | Model No. | Dia. | I.D. | w/o trip | Length | | | | 309030 | GP-300-EF (Aluminum) | 3.0" | 2.835" | 2 lb 12 oz | 5.00" | | | | 309033 | GP-350-EF (Aluminum) | 3.5" | 3.260" | 3 lb 6 oz | 7.00" | | | | 309035 | GP-400-EF (Aluminum) | 4.0" | 3.750" | 3 lb 14 oz | 7.25" | | | | 309038 | GP-450-EF (Aluminum) | 4.5" | 4.260" | 4 lb 13 oz | 8.50" | | | | | | | | | | | | | |
| | | *All ultra ends require minimum 1.5 inch i.d. rings to function properly. Undersized rings will damage ends and void warranty. | | |
| | | |
| | | AUTOMATIC SOCKET END - TS & UTS This unique "socket" type fitting UJS„ st ■ automatically locks onto the mast toggle pin with a quick and easy push. The release is just as quick with a press of the lever (fits Forespar ® mast toggle pins only). | | |
| | | |
| | | ULTRA SERIES™ GRAND PRIX OUTBOARD POLE END Forespar's ULTRA SERIES™ composite pole end fittings have been a proven, overwhelming success. Their light weight and resistance to corrosion answer racing and cruising sailor's needs for strength and reliability. The Grand Prix ULTRA SERIES include sizes suitable for yachts sixty feet LOA. The ULTRA Grand Prix, UGPS, model with a stainless steel throat liner insert weighs only 38 ounces. | | |
| | | |
| | | For Pole Part No. | | Fits Model No. | | Weight Diameter | | |
| | | Tube I.D. | | w/o trip | | |
| | | |
| | | |
| | | 309028 TS-300-EF (Aluminum) 3.0" 2.835" 1 lb 10 oz 304080 UTS-300-ULTRA 3.0" 2.835" 1 lb 4 oz 309031 TS-350-EF (Aluminum) 3.5" 3.260" 1 lb 13 oz 304081 UTS-350-ULTRA 3.5" 3.260" 1 lb 7 oz 405006 TS-400-EF (Aluminum) 4.0" 3.750" 2 lb 2 oz 309036 TS-450-EF (Aluminum) 4.5" 4.260" 2 lb 13 oz 304082 UTS-400-ULTRA 4.0" 3.750" 1 lb 7 oz 304083 UTS-450-ULTRA 4.5" 4.260" 1 lb 7 oz | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
