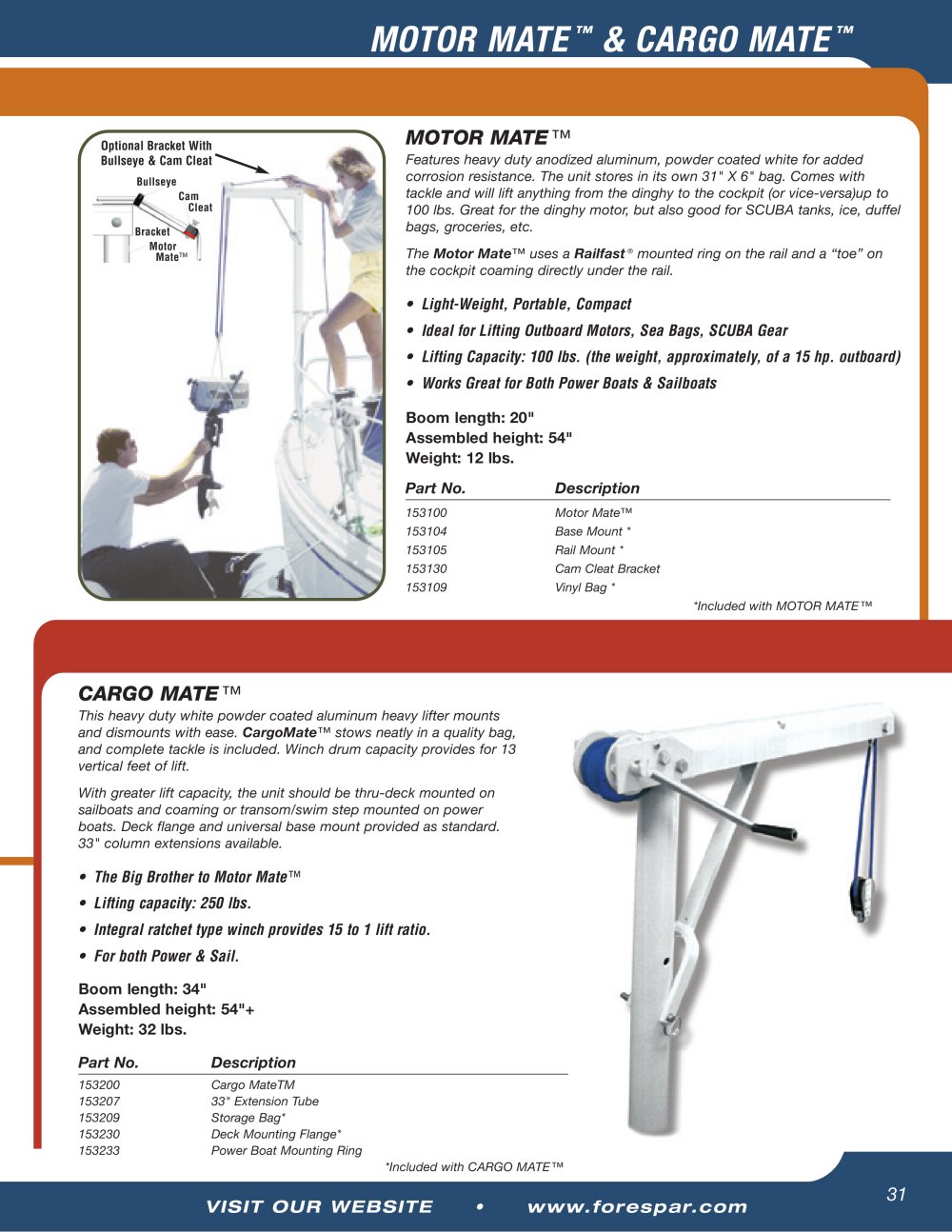

Optional Bracket WithBullseye & Cam cleat

MOTOR MATE

™

& CARGO MATE

™

MOTOR MATE

Motor Mate ™ uses a

™

Features heavy duty anodized aluminum, powder coated white for added corrosion resistance. The unit stores in its own 31" X 6" bag. Comes with tackle and will lift anything from the dinghy to the cockpit (or vice-versa)up to 100 lbs. Great for the dinghy motor, but also good for Scuba tanks, ice, duffel bags, groceries, etc.The Railfast CamCleatBullseyeBracketMotor Mate ™ ® mounted ring on the rail and a “toe” onthe cockpit coaming directly under the rail. • Light-Weight, Portable, Compact• Ideal for Lifting Outboard motors, Sea Bags, SCUBA Gear• Lifting Capacity: 100 lbs. (the weight, approximately, of a 15 hp. outboard)• Works Great for Both Power boats & Sailboats Boom length: 20"Assembled height: 54" Weight: 12 lbs. Part No.Description
153100Motor Mate™153104Base Mount * 153105Rail Mount * 153130Cam Cleat Bracket 153109Vinyl Bag **Included with MOTOR MATE™

CARGO MATE ™

This heavy duty white powder coated aluminum heavy lifter mountsand dismounts with ease. CargoMate ™ stows neatly in a quality bag,and complete tackle is included. Winch drum capacity provides for 13 vertical feet of lift. With greater lift capacity, the unit should be thru-deck mounted onsailboats and coaming or transom/swim step mounted on power boats. Deck flange and universal base mount provided as standard. 33" column extensions available. • The Big Brother to Motor Mate ™ • Lifting capacity: 250 lbs.• Integral ratchet type winch provides 15 to 1 lift ratio.• For both Power & Sail. Boom length: 34"Assembled height: 54"+ Weight: 32 lbs. Part No.Description
153200Cargo MateTM15320733" Extension Tube 153209Storage Bag* 153230Deck Mounting Flange* 153233Power Boat Mounting Ring*Included with CARGO MATE™

VISIT OUR WEBSITE • www.forespar.com

31
