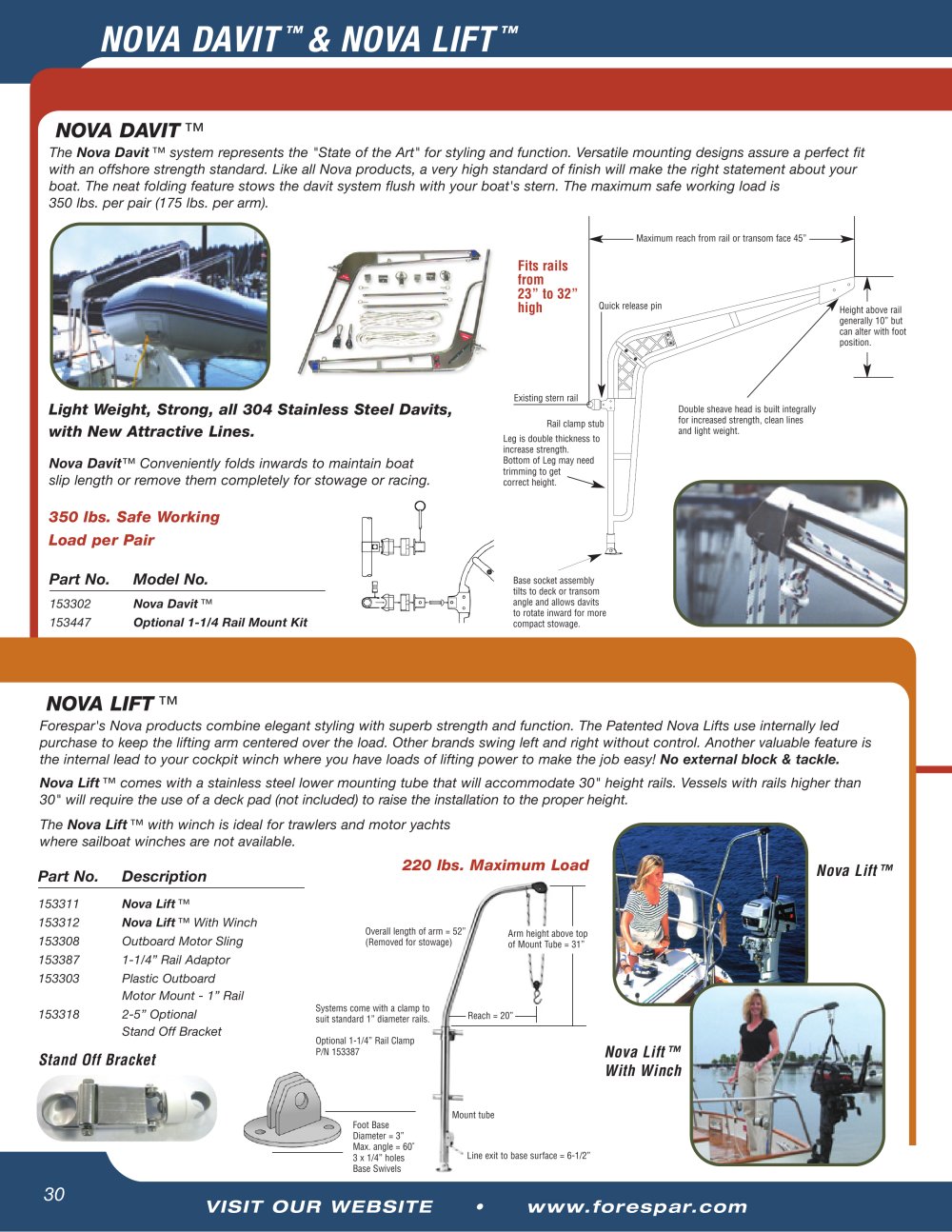

NOVA DAVIT
™
& NOVA LIFT
™
NOVA DAVIT ™
The Nova Davit ™ system represents the "State of the Art" for styling and function. Versatile mounting designs assure a perfect fitwith an offshore strength standard. Like all Nova products, a very high standard of finish will make the right statement about yourboat. The neat folding feature stows the davit system flush with your boat's stern. The maximum safe working load is 350 lbs. per pair (175 lbs. per arm).
Maximum reach from rail or transom face 45” Fits rails from
23” to 32” high
Quick release pin Height above railgenerally 10” but
can alter with footposition. Existing stern rail Light Weight, Strong, all 304 Stainless Steel Davits, with New Attractive Lines.
Double sheave head is built integrallyfor increased strength, clean lines
and light weight. Rail clamp stubLeg is double thickness toincrease strength.
Bottom of Leg may needtrimming to getcorrect height. Nova Davit ™ Conveniently folds inwards to maintain boat slip length or remove them completely for stowage or
racing.
350 lbs. Safe Working Load per Pair Part No.Model No.
Base socket assembly
tilts to deck or transomangle and allows davitsto rotate inward for more
compact stowage. 153302 Nova Davit ™ 153447 Optional 1-1/4 Rail Mount Kit NOVA LIFT ™
Forespar's Nova products combine elegant styling with superb strength and function. The Patented Nova Lifts use internally led purchase to keep the lifting arm centered over the load. Other brands swing left and right without control. Another valuable feature isthe internal lead to your cockpit winch where you have loads of lifting power to make the job easy! No external block & tackle.Nova Lift ™ comes with a stainless steel lower mounting tube that will accommodate 30" height rails. Vessels with rails higher than30" will require the use of a deck pad (not included) to raise the installation to the proper height.The Nova Lift ™ with winch is ideal for
trawlers and
motor yachts where
sailboat winches are not available.
Part No.Description 220 lbs. Maximum Load Nova Lift™
Nova Lift™With Winch
153311 Nova Lift ™153312 Nova Lift ™ With Winch153308Outboard Motor Sling
1533871-1/4” Rail Adaptor
153303Plastic Boat outboard motor Mount - 1” Rail1533182-5” Optional Stand Off Bracket Overall length of arm = 52”(Removed for stowage)Systems come with a clamp tosuit standard 1” diameter rails.Optional 1-1/4” Rail ClampP/N 153387 Arm height above top
of Mount Tube = 31”
Mount tubeLine exit to base surface = 6-1/2” Reach = 20”
Foot BaseDiameter = 3”
Max. angle = 60Ëš3 x 1/4” holesBase Swivels Stand Off Bracket
30
