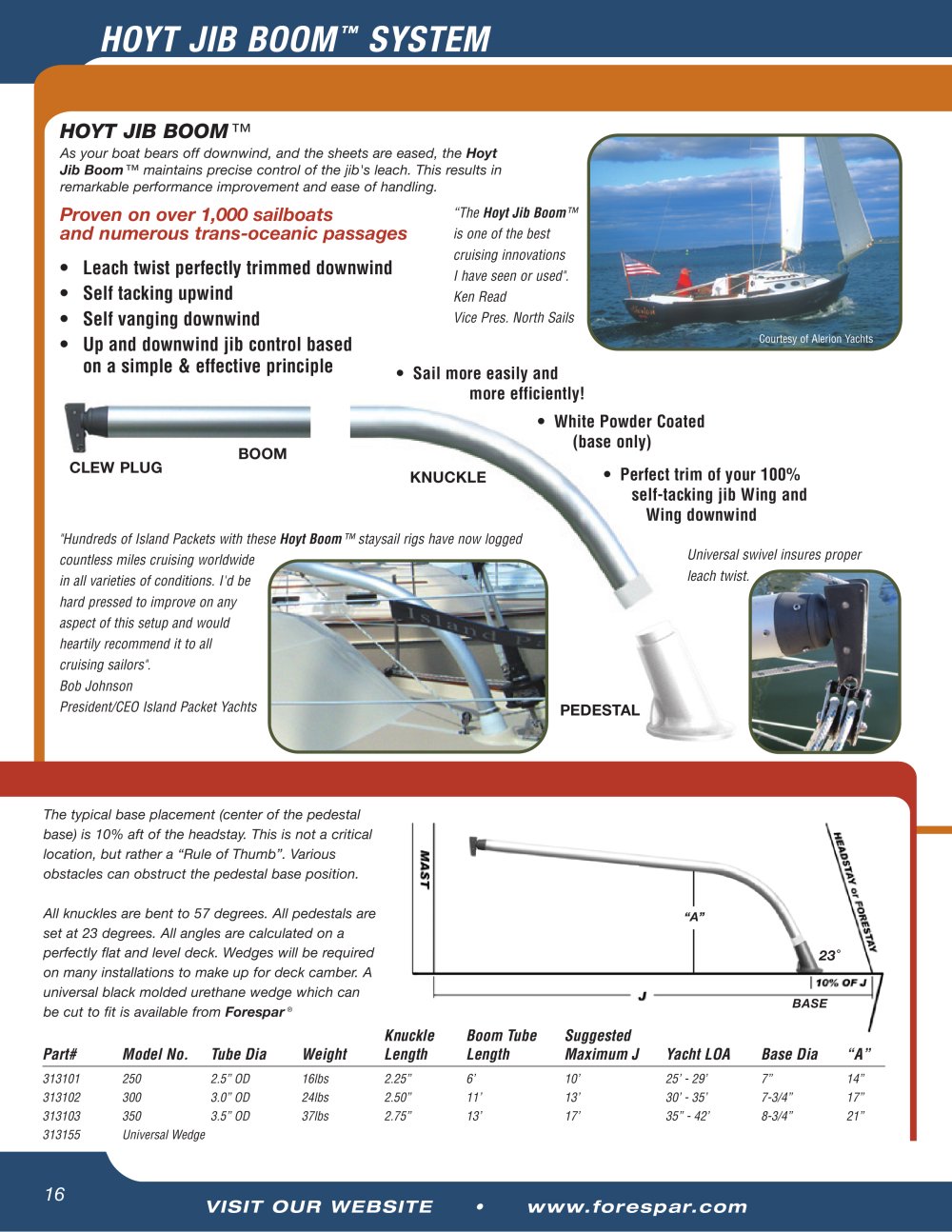

HOYT JIB BOOM

™

SYSTEM HOYT JIB BOOM ™

As your boat bears off downwind, and the sheets are eased, the HoytJib Boom ™ maintains precise control of the jib's leach. This results inremarkable performance improvement and ease of handling.

Proven on over 1,000 sailboats and numerous trans-oceanic passages

“The Hoyt Jib Boom ™ is one of the best cruising innovations I have seen or used".Ken ReadVice Pres. North Sails

•Leach twist perfectly trimmed downwind•Self tacking upwind •Self vanging downwind •Up and downwind jib control based on a simple & effective principle

Courtesy of Alerion Yachts

• Sail more easily and more efficiently!• White Powder Coated(base only)• Perfect trim of your 100% self-tacking jib Wing and Wing downwind

BOOMCLEW PLUGKNUCKLE PEDESTAL

"Hundreds of Island Packets with these Hoyt Boom ™ staysail rigs have now loggedcountless miles cruising worldwidein all varieties of conditions. I'd behard pressed to improve on anyaspect of this setup and wouldheartily recommend it to all cruising sailors". Bob JohnsonPresident/CEO Island Packet Yachts Universal swivel insures properleach twist. The typical base placement (center of the pedestalbase) is 10% aft of the headstay. This is not a critical location, but rather a “Rule of Thumb”. Variousobstacles can obstruct the pedestal base position.All knuckles are bent to 57 degrees. All pedestals areset at 23 degrees. All angles are calculated on a perfectly flat and level deck. Wedges will be required on many installations to make up for deck camber. A universal black molded urethane wedge which can be cut to fit is available from Forespar
“A” 23
® BASE

KnuckleBoom TubeSuggestedPart#Model No.Tube DiaWeightLengthLengthMaximum JYacht LOABase Dia“A”

3131012502.5” OD16lbs2.25”6’10’25’ - 29’7”14”313102300 3.0” OD24lbs2.50”11’13’30’ - 35’7-3/4”17”313103350 3.5” OD37lbs2.75”13’17’35” - 42’8-3/4”21”313155Universal Wedge

16
