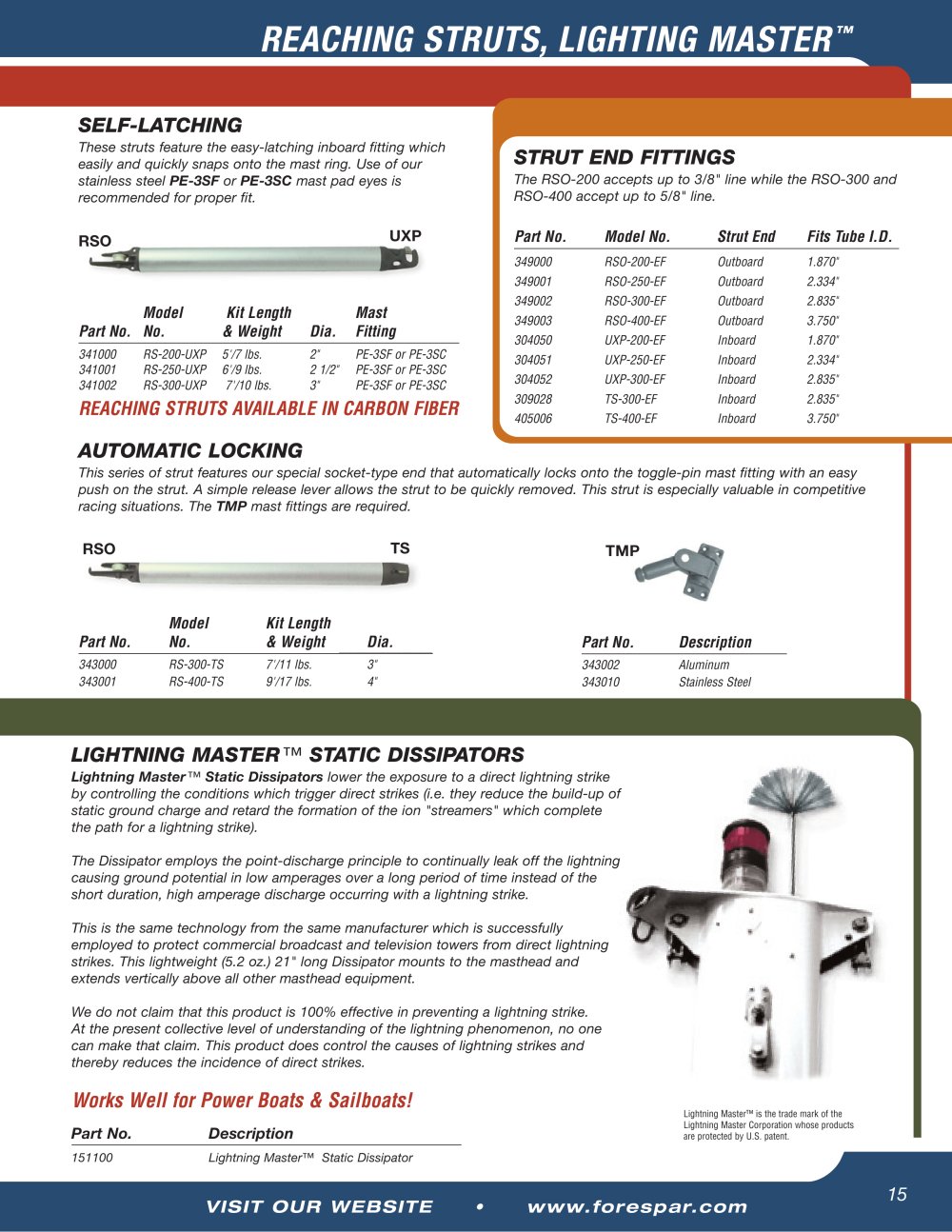

REACHING STRUTS, LIGHTING MASTER
SELF-LATCHING
These struts feature the easy-latching inboard fitting which easily and quickly snaps onto the mast ring. Use of our stainless steel PE-3SF or PE-3SC mast pad eyes is
recommended for proper fit.
STRUT END FITTINGS
The RSO-200 accepts up to 3/8" line while the RSO-300 and RSO-400 accept up to 5/8" line.
Part No.
Model No.
Strut End
Fits Tube I.D.
349000
RSO-200-EF
Outboard
1.870"
349001
RSO-250-EF
Outboard
2.334"
349002
RSO-300-EF
Outboard
2.835"
349003
RSO-400-EF
Outboard
3.750"
304050
UXP-200-EF
Inboard
1.870"
304051
UXP-250-EF
Inboard
2.334"
304052
UXP-300-EF
Inboard
2.835"
309028
TS-300-EF
Inboard
2.835"
405006
TS-400-EF
Inboard
3.750"
UXP
RSO
Model Part No. No.
Kit Length
& Weight Dia.
Mast Fitting
341000 RS-200-UXP 5/7 lbs. 2" PE-3SF or PE-3SC
341001 RS-250-UXP 6/9 lbs. 21/2" PE-3SF or PE-3SC
341002 RS-300-UXP 7'/10 lbs. 3" PE-3SF or PE-3SC REACHING STRUTS AVAILABLE IN CARBON FIBER
AUTOMATIC LOCKING
This series of strut features our special socket-type end that automatically locks onto the toggle-pin mast fitting with an easy
push on the strut. A simple release lever allows the strut to be quickly removed. This strut is especially valuable in competitive racing situations. The TMP mast fittings are required.
TS
RSO
TMP
Model
No.
Kit Length & Weight
Part No.
Dia.
Part No.
Description
343000 343001
RS-300-TS RS-400-TS
7/11 lbs. 9/17 lbs.
3" 4"
343002 343010
Aluminum Stainless Steel
LIGHTNING MASTER ™ STATIC DISSIPATORS
Lightning MasterStatic Dissipators lower the exposure to a direct lightning strike by controlling the conditions which trigger direct strikes (i.e. they reduce the build-up of static ground charge and retard the formation of the ion "streamers" which complete
the path for a lightning strike).
The Dissipator employs the point-discharge principle to continually leak off the lightning
causing ground potential in low amperages over a long period of time instead of the short duration, high amperage discharge occurring with a lightning strike.
This is the same technology from the same manufacturer which is successfully
employed to protect commercial broadcast and television towers from direct lightning
strikes. This lightweight (5.2 oz.) 21" long Dissipator mounts to the masthead and
extends vertically above all other masthead equipment.
We do not claim that this product is 100% effective in preventing a lightning strike. At the present collective level of understanding of the lightning phenomenon, no one can make that claim. This product does control the causes of lightning strikes and
thereby reduces the incidence of direct strikes.
Works Well for Power boats & Sailboats!
Part No. Description
Lightning Master™ is the trade mark of the Lightning Master Corporation whose products are protected by U.S. patent.
151100
Lightning Master™ Static Dissipator
15
