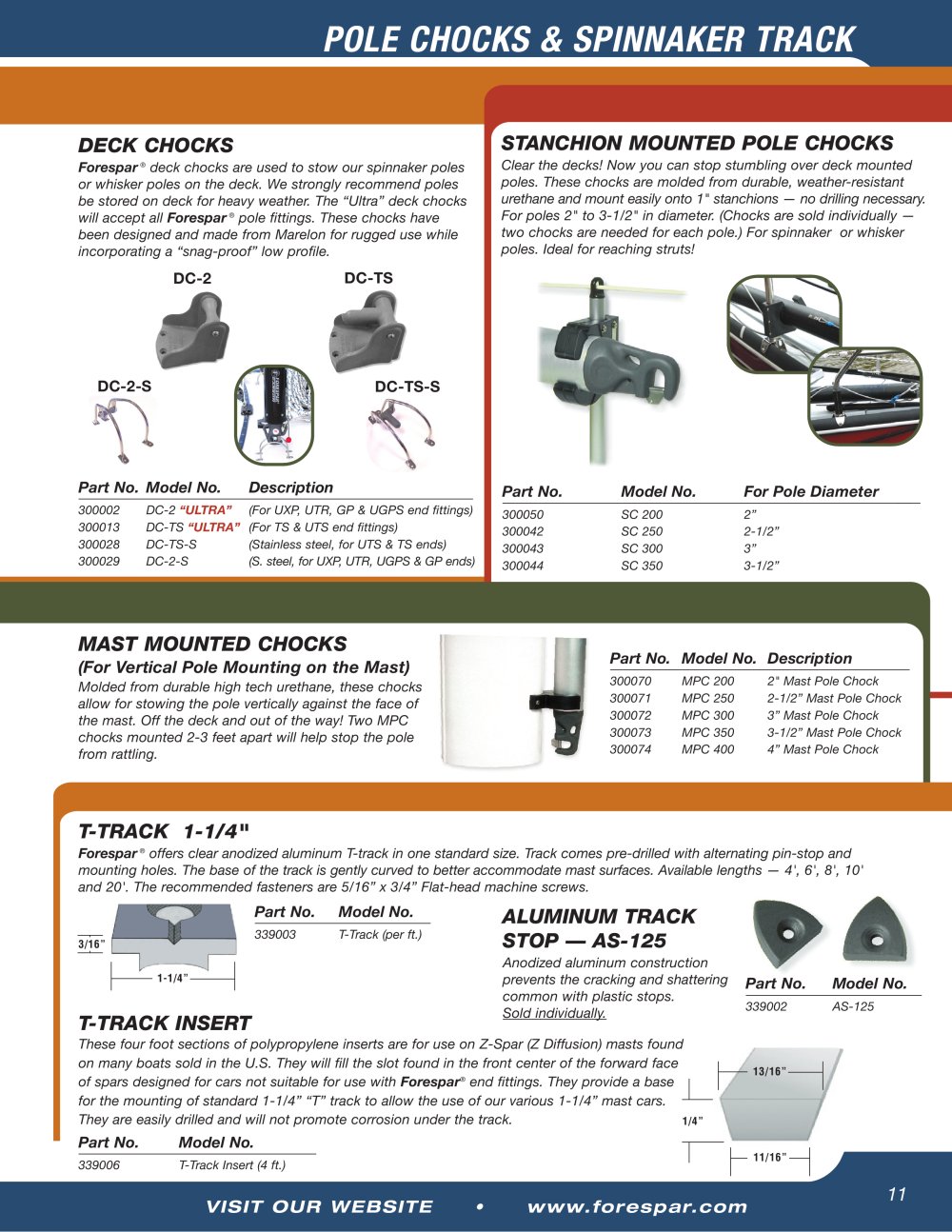

POLE CHOCKS & SPINNAKER TRACK

DECK CHOCKS

Forespar

STANCHION MOUNTED POLE CHOCKS

Forespar
® deck chocks are used to stow our spinnaker polesor whisker poles on the deck. We strongly recommend poles be stored on deck for heavy weather. The “Ultra” deck chocks will accept all Clear the decks! Now you can stop stumbling over deck mounted poles. These chocks are molded from durable, weather-resistant urethane and mount easily onto 1" stanchions — no drilling necessary. For poles 2" to 3-1/2" in diameter. (Chocks are sold individually — two chocks are needed for each pole.) For spinnaker or whisker poles. Ideal for reaching struts!
® pole fittings. These chocks havebeen designed and made from Marelon for rugged use while incorporating a “snag-proof” low profile.

DC-TS DC-2 DC-2-S DC-TS-S Part No.Model No.Description Part No.Model No.For Pole Diameter __

300002DC-2 “ULTRA” (For UXP, UTR, GP & UGPS end fittings)300013DC-TS 300050SC 2002”300042SC 2502-1/2” 300043SC 3003” 300044SC 3503-1/2” “ULTRA” (For TS &UTS end fittings)300028DC-TS-S (Stainless steel, for UTS & TS ends) 300029DC-2-S(S. steel, for UXP, UTR, UGPS & GP ends)

MAST MOUNTED CHOCKS

(For Vertical Pole Mounting on the Mast)

Part No.Model No.Description

Molded from durable high tech urethane, these chocks allow for stowing the pole vertically against the face of the mast. Off the deck and out of the way! Two MPC chocks mounted 2-3 feet apart will help stop the pole from rattling.
300070MPC 2002" Mast Pole Chock300071MPC 2502-1/2” Mast Pole Chock 300072MPC 3003” Mast Pole Chock 300073MPC 3503-1/2” Mast Pole Chock 300074MPC 4004” Mast Pole Chock

T-TRACK 1-1/4"

Forespar
® offers clear anodized aluminum T-track in one standard size. Track comes pre-drilled with alternating pin-stop and mounting holes.The base of the track is gently curved to better accommodate mast surfaces. Availablelengths — 4', 6', 8', 10' and 20'. The recommended fasteners are 5/16” x 3/4” Flat-head machine screws.

Part No.Model No.

ALUMINUM TRACK STOP — AS-125

339003T-Track (per ft.) 3/16” Anodized aluminum construction prevents the cracking and shattering common with plastic stops. Sold individually
1-1/4”

Part No.Model No.

T-TRACK INSERT

.
339002AS-125 These four foot sections of polypropylene inserts are for use on Z-Spar (Z Diffusion) masts foundon many boats sold in the U.S. They will fill the slot found in the front center of the forward face of spars designed for cars not suitable for use with Forespar
® 13/16” end fittings. They provide a basefor the mounting of standard 1-1/4” “T” track to allow the use of our various 1-1/4” mast cars. They are easily drilled and will not promote corrosion under the track.
1/4”

Part No.Model No.

339006T-Track Insert (4 ft.) 11/16”

VISIT OUR WEBSITE • www.forespar.com

11
