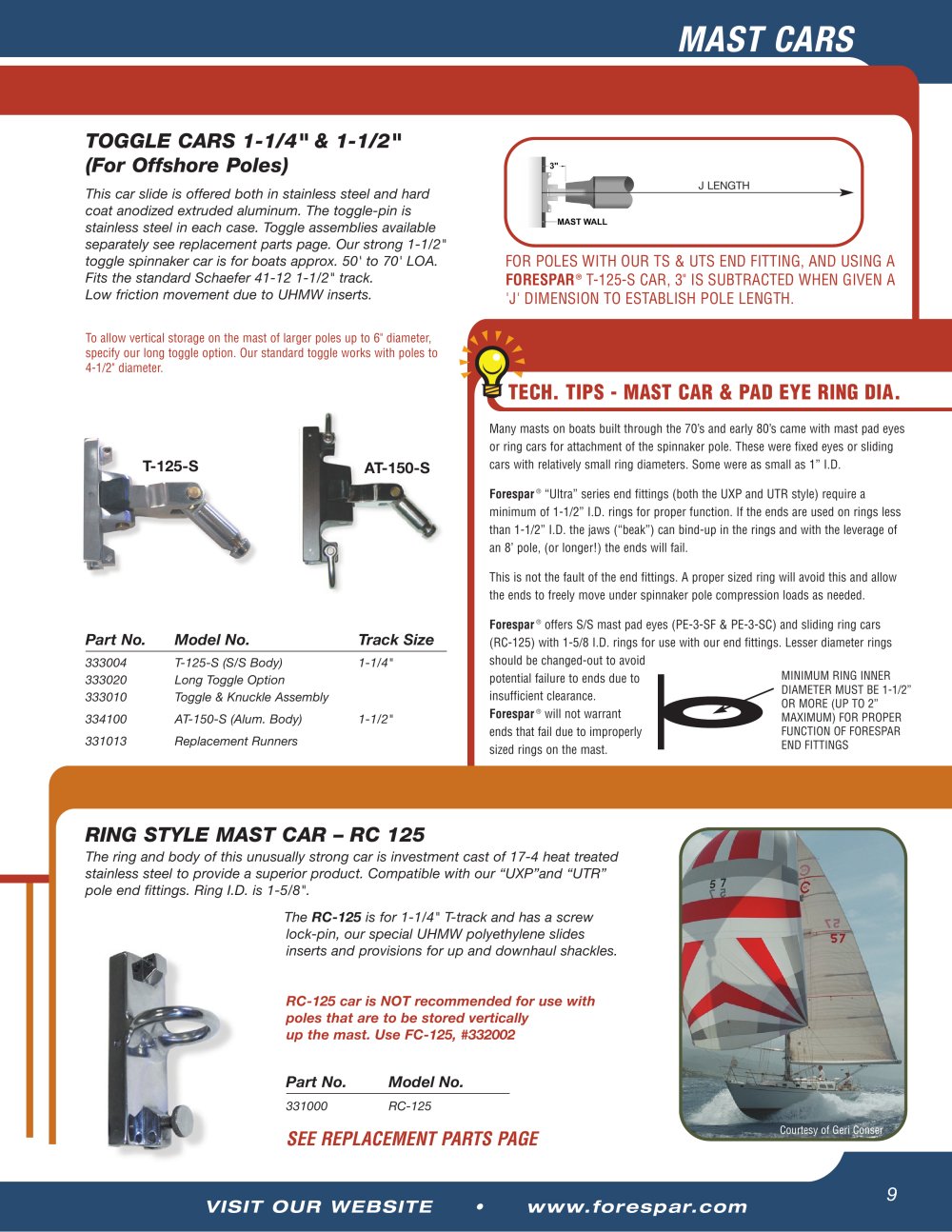

MAST CARS TOGGLE CARS 1-1/4" & 1-1/2" (For Offshore Poles)
This car slide is offered both in stainless steel and hard
coat anodized extruded aluminum. The toggle-pin is
stainless steel in each case. Toggle assemblies available
separately see replacement parts page. Our strong 1-1/2"
toggle spinnaker car is for boats approx. 50' to 70' LOA.
Fits the standard Schaefer 41-12 1-1/2" track. Low friction movement due to UHMW inserts.
J LENGTH FOR POLES WITH OUR TS & UTS END FITTING, AND USING A FORESPAR
® T-125-S CAR, 3" IS SUBTRACTED WHEN GIVEN A 'J' DIMENSION TO ESTABLISH POLE LENGTH.
To allow vertical storage on the mast of larger poles up to 6" diameter,
specify our long toggle option. Our standard toggle works with poles to
4-1/2" diameter.
TECH. TIPS - MAST CAR & PAD EYE RING DIA.
Many masts on boats built through the 70’s and early 80’s came with mast pad eyesor ring cars for attachment of the
spinnaker pole. These were fixed eyes or sliding
cars with relatively small ring diameters. Some were as small as 1” I.D.
T-125-SAT-150-S
Forespar
® “Ultra” series end fittings (both the UXP and UTR style) require a minimum of 1-1/2” I.D. rings for proper function. If the ends are used on rings less
than 1-1/2” I.D. the jaws (“beak”) can bind-up in the rings and with the leverage of
an 8’ pole, (or longer!) the ends will fail.This is not the fault of the end fittings. A proper sized ring will avoid this and allowthe ends to freely move under spinnaker pole compression loads as needed. Forespar Forespar
® offers S/S mast pad eyes (PE-3-SF & PE-3-SC) and sliding ring cars (RC-125) with 1-5/8 I.D. rings for use with our end fittings. Lesser diameter rings
should be changed-out to avoid
potential failure to ends due to
insufficient clearance.
Part No.Model No.Track Size
333004T-125-S (S/S Body)1-1/4"333020Long Toggle Option
333010Toggle & Knuckle Assembly334100AT-150-S (Alum. Body)1-1/2"
331013Replacement Runners
MINIMUM RING INNERDIAMETER MUST BE 1-1/2”
OR MORE (UP TO 2”MAXIMUM) FOR PROPERFUNCTION OF FORESPAR
END FITTINGS ® will not warrantends that fail due to improperly
sized rings on the mast.
RING STYLE MAST CAR – RC 125
The ring and body of this unusually strong car is investment cast of 17-4 heat treated
stainless steel to provide a superior product. Compatible with our “UXP”and “UTR”
pole end fittings. Ring I.D. is 1-5/8". The RC-125 is for 1-1/4" T-track and has a screw lock-pin, our special UHMW polyethylene slides
inserts and provisions for up and downhaul shackles. RC-125 car is NOTrecommended for use with
poles that are to be stored vertically
up the mast. Use FC-125, #332002
Part No.Model No.
331000RC-125
SEE REPLACEMENT PARTS PAGE
