For Water or Diesel Marine tanks in Stainless Steel, Steel and Aluminium

Gobius is easy to install With Gobius you will gain

On the sensors there are strips of tape that are provided to attach the sensors directly onto the surface of your tank. The panel may, for example, be placed in the pentry or at the electric control panel.The control unit is connected to the power boat battery. All necessary cables for boats and plugs needed to connect the sensors and panel with the control unit are included. • Knowledge of when the tank is empty so that you have to fi ll it • Knowledge of when the tank is full

Measures from the outside

• Increased comfort and safety on board • Very easy to install • Everyone knows whether to use water or not • You avoid the struggle with taking the tank apart • No extra drilling of holes • No need for extra service

You avoid

• Very low electricity consumption • Unpleasant surprices such as empty water or boat fuel tanks • No mobile parts • Prepared for rough conditions • Unnecessarily fi lling your tank

®

– 30 minutes to install

Gobius measures levels from the outside, avoiding the need of to take the tank apart and drill unnecessary holes. Gobius is specially manu factured for pleasure boats like Arcona, CR-Yachts, Dehler, Elan, Finngulf, Forbina, Hallberg-Rassy, Hanse, Linjett, Malö, Maxi, Najad, Nimbus, NordWest and Swan that all have tanks in stainless steel.

• Quick to install and very easy to use • Coloured marine lamps show the current fl uid level at 0, 1/4, 1/2 and 3/4 • Automatically checking the level • Extremely low electricity consumption, less than 40 mA • Good for everybody: boat boat owners and environment

The Gobius technology (patent pending) Very easy to calibrate

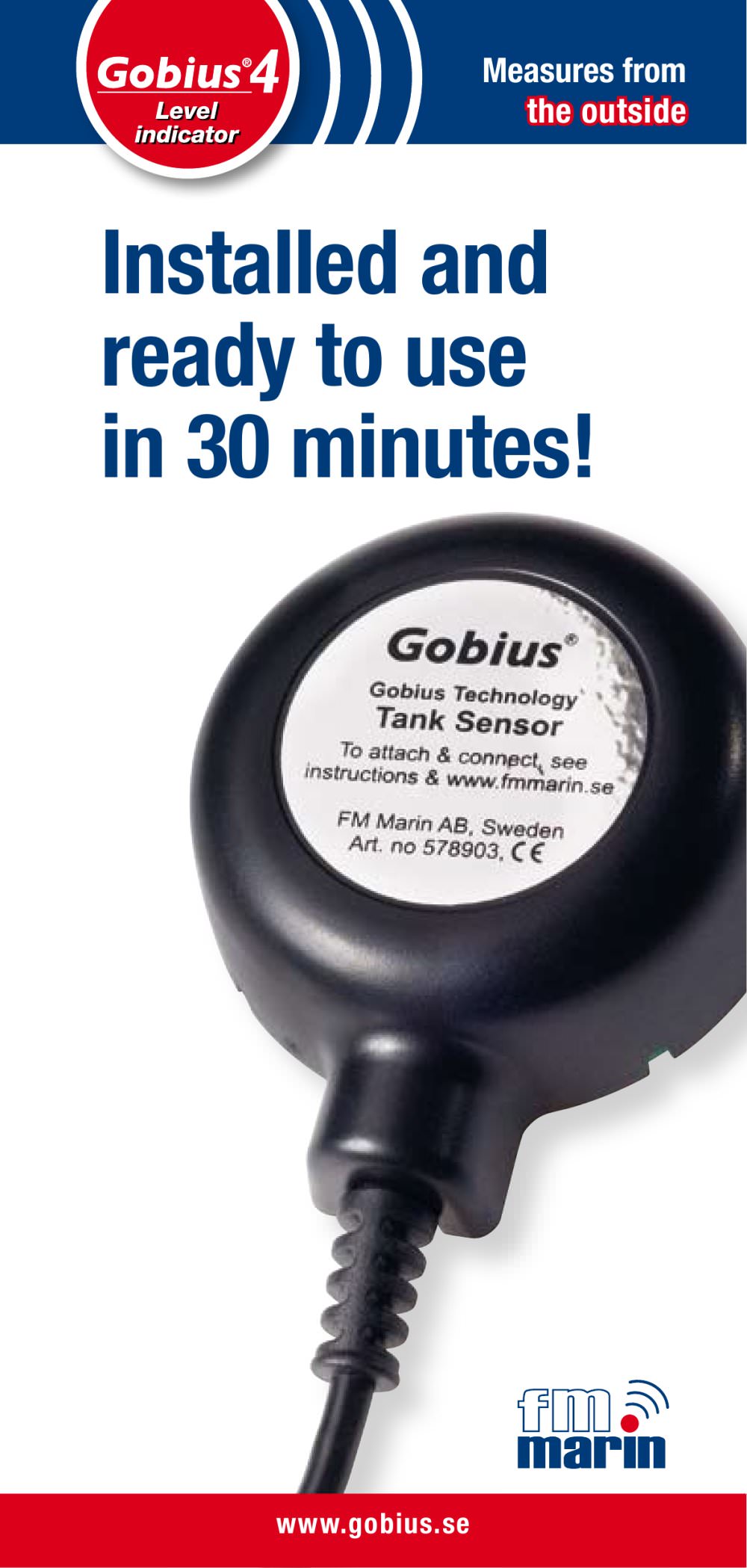

The sensors that are placed onto the tank wall consist of a shaker and an accelerator. When the shaker creates a vibration in the tankwall, the accelerator measures the size of the vibration and passes the data on to the control unit. The control unit then starts to calculate in order to give an exact estimate of whether the fl uid level has passed the sensor or not. Each sensor is only 26 mm high with a diameter of 70 mm. No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds, all you need to do is to press a button while the tank is full.

Extremely low electricity consumption, less than 40 mA (12 volts)

Controlunit Gobius is constructed to minimise electricity consumption and is extremely effi cient. Gobius sends power to its sensors in impulses instead of a continuous supply, thus saving your craft’s battery.
Plastic tank Plasti / FMMA_0816 / 080416 / ENG Battery 12 V Manufacturer: FM Marin AB, Hällefl undregatan 24, SE-426 58 Västra Frölunda, Sweden, Marine phone +46 (0)31 65 01 70, www.fmmarin.se
