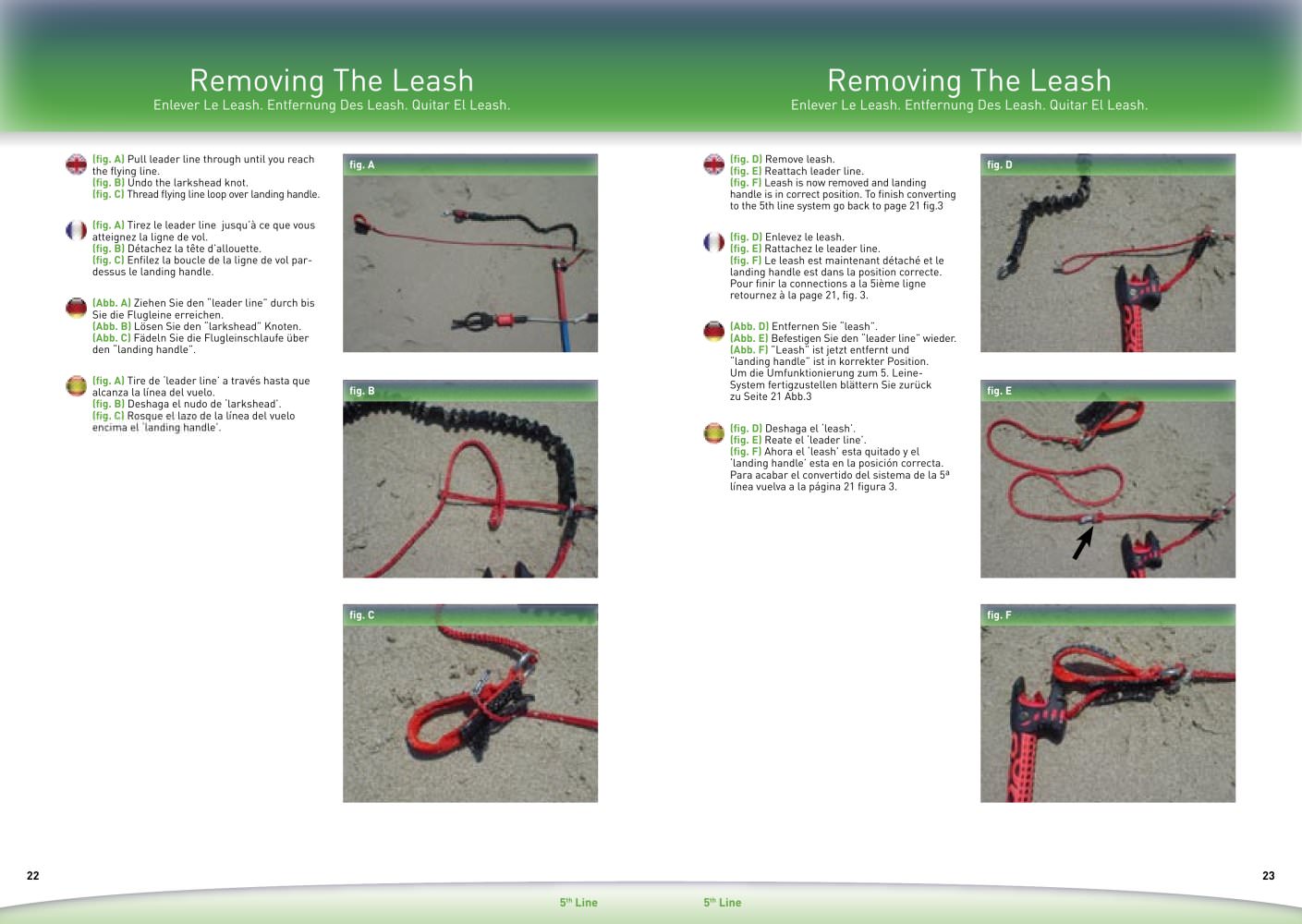

Removing The Leash
Enlever Le Leash. Entfernung Des Leash. Quitar El Leash.
Remov
Enlever Le Leash. Entfernung Des Leash. Quitar EL Leash.
Ifig. A) Pull leader line through untilyou reach the flying line.
[fig. B) Undo the larkshead knot.
[fig. C) Thread flying line loop over landing handle.
Ifig. D) Remove leash.
Ifig. E) Reattach leader line.
Ifig. F) Leash is now removed and landing
handle is in correct position. To finish converting
to the 5th line system go back to page 21 fig.3
Ifig. D) Enlevez le leash.
Ifig. E) Rattachez le leader line.
Ifig. F) Le leash est maintenant détaché et le
landing handle est dans la position correcte.
Pourfinir la connections a la 5ième ligne
retournez à la page 21,fig.3.
|Abb. D) Entfernen Sie "leash". |Abb. E) Befestigen Sie den "leader line" wieder. |Abb. F) "Leash" istjetzt entfernt und "landing handle" ist in korrekter Position. Um die Umfunktionierung zum 5. Leine-System fertigzustellen blättern Sie zurück zu Seite 21 Abb.3
^ ^ (fig. A) Tirez le leader line jusqu'à ce que vous
atteignez la ligne de vol. [fig. B) Détachez la tête d'allouette. [fig. C) Enfilez la boucle de la ligne de vol par­dessus le landing handle.
|Abb. A) Ziehen Sie den "leader line" durch bis Sie die Flugleine erreichen. |Abb. B) Lösen Sie den "larkshead" Knoten. |Abb. C) Fädeln Sie die Flugleinschlaufe über den "landing handle".
< I
Ifig. A) Tire de 'leader Une' a través hasta que alcanza la línea del vuelo. [fig. B) Deshaga el nudo de 'larkshead'. [fig. C) Rosque el lazo de la línea del vuelo encima el 'landing handle'.
[fig. D) Deshaga el 'leash'.
[fig. E) Reate el 'leader line'.
[fig. F) Ahora el 'leash' esta quitado y el
'landing handle' esta en la posición correcta.
Para acabarel convertido del sistema de la 5a
línea vuelva a la página 21 figura 3.
22
23
5th Line
5th Line
