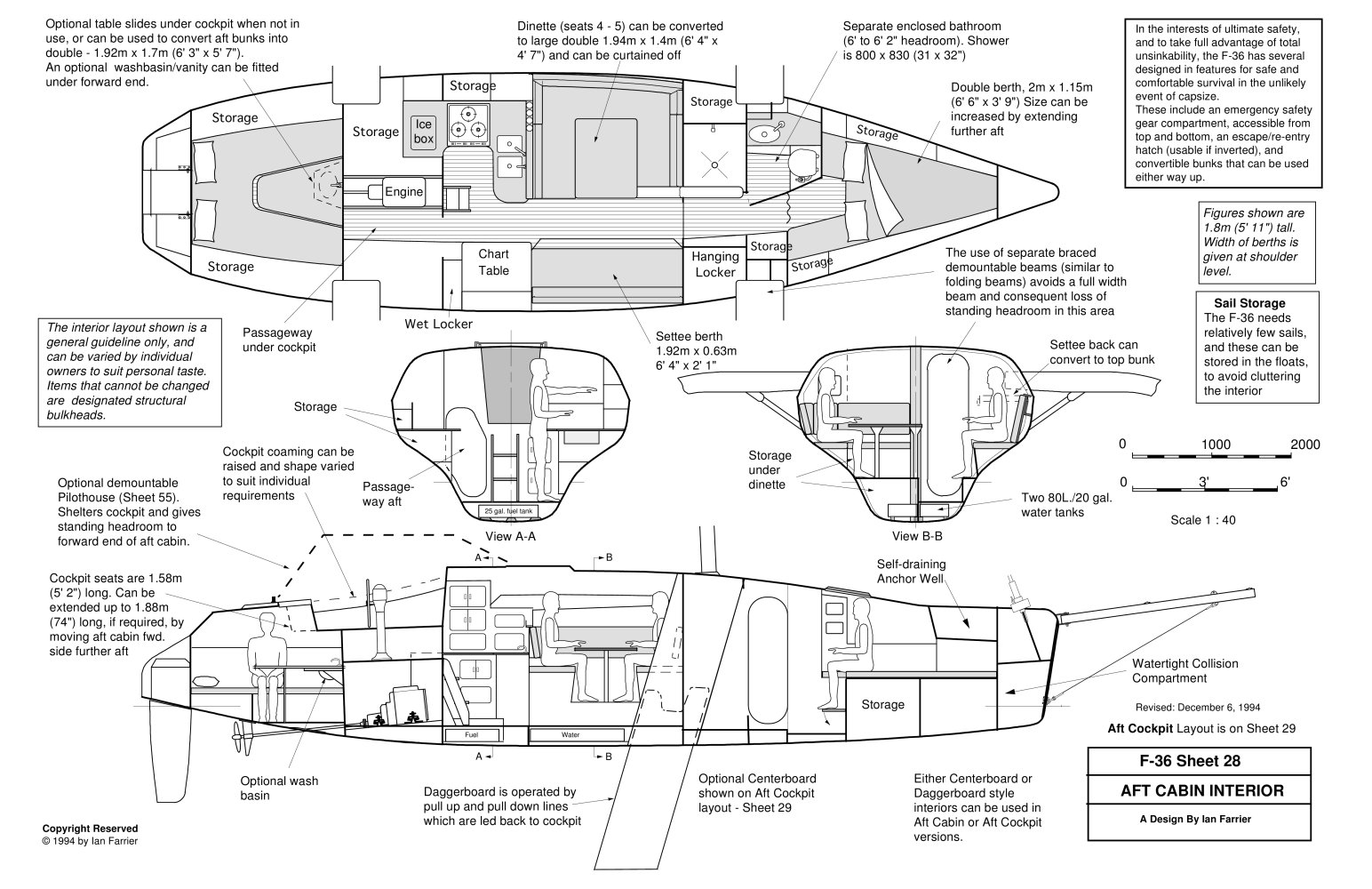

Copyright Reserved © 1994 by Ian Farrier AFT CABIN INTERIOR The interior layout shown is a general guideline only, and can be varied by individual owners to suit personal taste. Items that cannot be changed are designated structural bulkheads. Revised: December 6, 1994 Aft Cockpit Layout is on Sheet 29 Figures shown are 1.8m (5' 11") tall. Width of berths is given at shoulder level. F-36 Sheet 28 A Design By Ian Farrier Scale 1 : 40 0 1000 2000 0 3' 6' Watertight Collision Compartment Self-draining Anchor Well Daggerboard is operated by pull up and pull down lines which are led back to cockpit Optional table slides under cockpit when not in use, or can be used to convert aft bunks into double - 1.92m x 1.7m (6' 3" x 5' 7"). An optional washbasin/vanity can be fitted under forward end. Separate enclosed bathroom (6' to 6' 2" headroom). Shower is 800 x 830 (31 x 32") Chart Table Passageway under cockpit Ice box Engine Dinette (seats 4 - 5) can be converted to large double 1.94m x 1.4m (6' 4" x 4' 7") and can be curtained off Hanging Locker Wet Locker Storage Storage Storage Storage Storage Optional Centerboard shown on Aft Cockpit layout - Sheet 29 Storage Storage Fuel Water Two 80L./20 gal. water tanks Storage under dinette Settee back can convert to top bunk 25 gal. fuel tank A A B B View A-A View B-B Passageway aft Storage Double berth, 2m x 1.15m (6' 6" x 3' 9") Size can be increased by extending further aft Settee berth 1.92m x 0.63m 6' 4" x 2' 1" Storage Storage Optional demountable Pilothouse (Sheet 55). Shelters cockpit and gives standing headroom to forward end of aft cabin. Either Centerboard or Daggerboard style interiors can be used in Aft Cabin or Aft Cockpit versions. The use of separate braced demountable beams (similar to folding beams) avoids a full width beam and consequent loss of standing headroom in this area Sail Storage The F-36 needs relatively few sails, and these can be stored in the floats, to avoid cluttering the interior Cockpit coaming can be raised and shape varied to suit individual requirements Cockpit seats are 1.58m (5' 2") long. Can be extended up to 1.88m (74") long, if required, by moving aft cabin fwd. side further aft Optional wash basin In the interests of ultimate safety, and to take full advantage of total unsinkability, the F-36 has several designed in features for safe and comfortable survival in the unlikely event of capsize. These include an emergency safety gear compartment, accessible from top and bottom, an escape/re-entry hatch (usable if inverted), and convertible bunks that can be used either way up.
