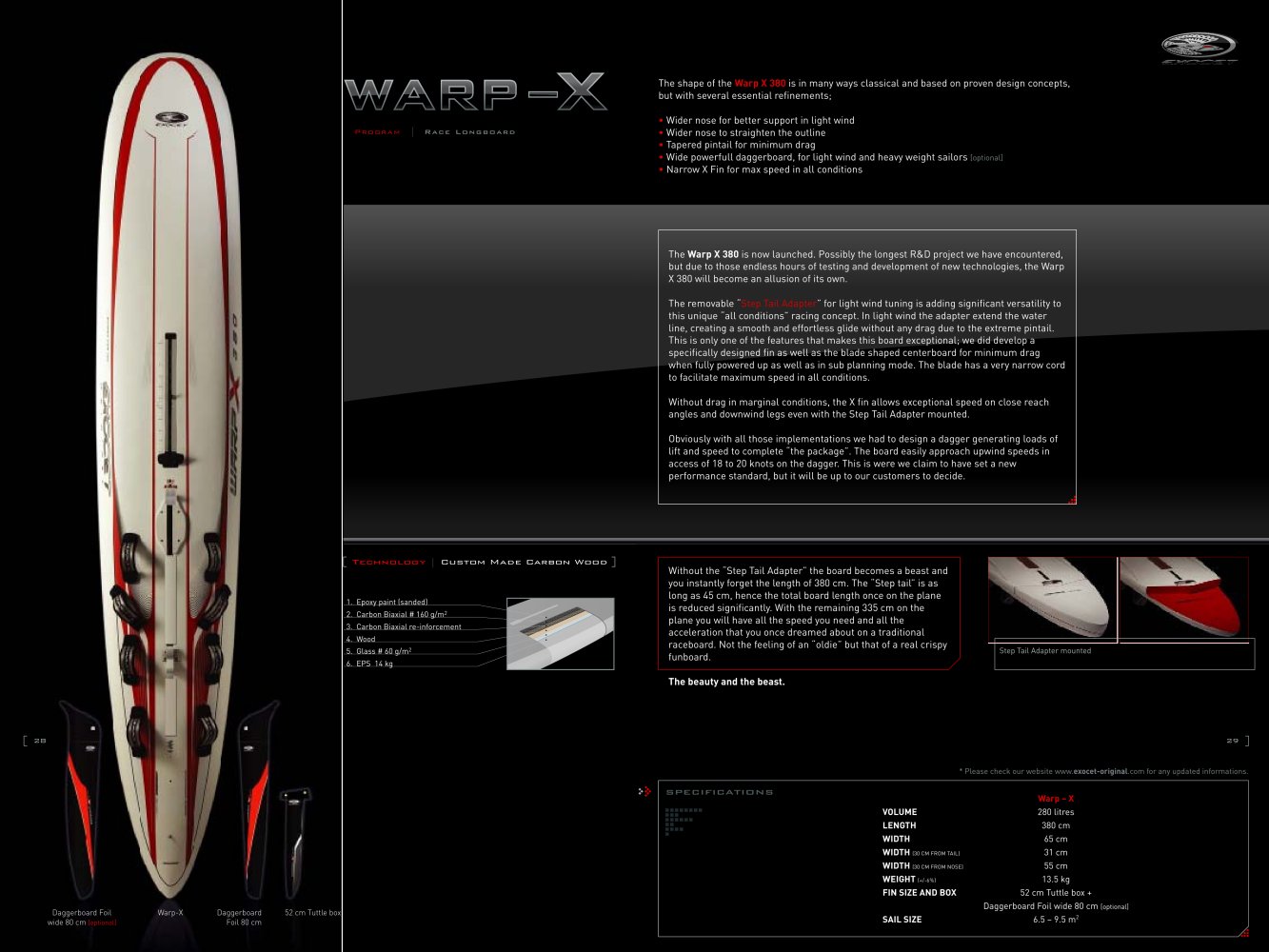

The shape of the Warp X 380 is in many ways classical and based on proven design concepts, but with several essential refinements;• Wider nose for better support in light wind• Wider nose to straighten the outline• Tapered pintail for minimum drag• Wide powerfull daggerboard, for light wind and heavy weight sailors

Program Race Longboard

The Warp X 380 is now launched. Possibly the longest R&D project we have encountered, but due to those endless hours of testing and development of new technologies, the Warp X 380 will become an allusion of its own.The removable “Step Tail Adapter” for light wind tuning is adding significant versatility to this unique “all conditions” racing concept. In light wind the adapter extend the water line, creating a smooth and effortless glide without any drag due to the extreme pintail. This is only one of the features that makes this boat board exceptional; we did develop a specifically designed fin as well as the blade shaped centerboard for minimum drag when fully powered up as well as in sub planning mode. The blade has a very narrow cord to facilitate maximum speed in all conditions.Without drag in marginal conditions, the X fin allows exceptional speed on close reach angles and downwind legs even with the Step Tail Adapter mounted.Obviously with all those implementations we had to design a dagger generating loads of lift and speed to complete “the package”. The board easily approach upwind speeds in access of 18 to 20 knots on the dagger. This is were we claim to have set a new performance standard, but it will be up to our customers to decide.

[optional]

• Narrow X Fin for max speed in all conditions Without the “Step Tail Adapter” the board becomes a beast and you instantly forget the length of 380 cm. The “Step tail” is as long as 45 cm, hence the total board length once on the plane is reduced significantly. With the remaining 335 cm on the plane you will have all the speed you need and all the acceleration that you once dreamed about on a traditional raceboard. Not the feeling of an “oldie” but that of a real crispy funboard.

Technology Custom Made Carbon Wood

The beauty and the beast.

1. Epoxy paint (sanded)2. Carbon Biaxial # 160 g/m
2 3. Carbon Biaxial re-inforcement 4. Wood 5. Glass # 60 g/m
2 Step Tail Adapter mounted 6. EPS 14 kg 28 29 * Please check our website www. exocet-original .com for any updated informations.

SPECIFICATIONS VOLUMELENGTH WIDTHWIDTH 280 litres380 cm65 cm31 cm55 cm13.5 kg52 cm Tuttle box +Daggerboard Foil wide 80 cm

(30 CM FROM TAIL)

WIDTH

(30 CM FROM NOSE)

WEIGHT

(+/-6%)

FIN SIZE AND BOXSAIL SIZE Warp – X

[optional] Warp-X52 cm Tuttle boxDaggerboardFoil 80 cmDaggerboard Foilwide 80 cm
2 [optional]

6.5 – 9.5 m
