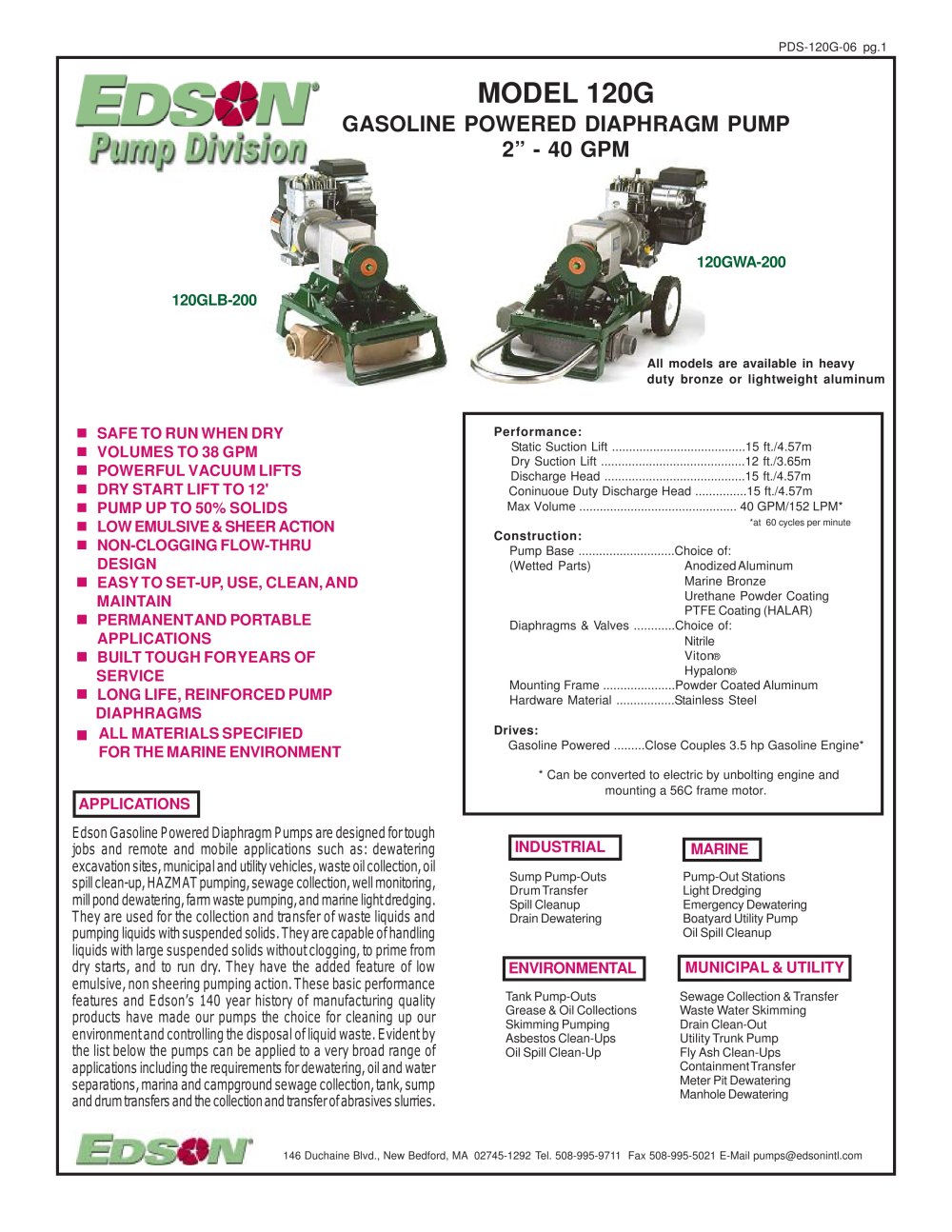

| | | ■ safe to run when dry ■ volumes to 38 gpm ■ dry start lift to 12' ■ pump up to 50% solids ■ low emulsive & sheer action ■ non-clogging flow-thru design easy to set-up, use, clean, and maintain permanentand portable applications built tough foryears of service long life, reinforced pump diaphragms all materials specified for the marine environment | | Performance: Static Suction Lift.......................................15 ft./4.57m Dry Suction Lift..........................................12 ft./3.65m Discharge Head.........................................15 ft./4.57m Coninuoue Duty Discharge Head...............15 ft./4.57m Max Volume..............................................40 GPM/152 LPM* *at 60 cycles per minute Construction: Pump Base............................Choice of: (Wetted Parts) Anodized Aluminum Marine Bronze Urethane Powder Coating PTFE Coating (HALAR) Diaphragms & Valves............Choice of: Nitrile Viton® Hypalon® Mounting Frame.....................Powder Coated Aluminum Hardware Material .................Stainless Steel Drives: * Can be converted to electric by unbolting engine and mounting a 56C frame motor. | | |
| | | Edson Gasoline Powered Diaphragm Marine pumps are designed for tough jobs and remote and mobile applications such as: dewatering excavation sites, municipal and utility vehicles, waste oil collection, oil spill clean-up, HAZMAT pumping, sewage collection, well monitoring, mill pond dewatering, farm waste pumping, and nautical light dredging. They are used for the collection and transfer of waste liquids and pumping liquids with suspended solids. They are capable of handling liquids with large suspended solids without clogging, to prime from dry starts, and to run dry. They have the added feature of low emulsive, non sheering pumping action. These basic performance features and Edson's 140 year history of manufacturing quality products have made our pumps the choice for cleaning up our environment and controlling the disposal of liquid waste. Evident by the list below the pumps can be applied to a very broad range of applications including the requirements for dewatering, oil and water separations, marina and campground sewage collection, tank, sump and drum transfers and the collection and transfer of abrasives slurries. | | |
