flsplatinum.pdf - 2 Pages

  1. P. 1

  2. P. 2

Catalogue excerpts

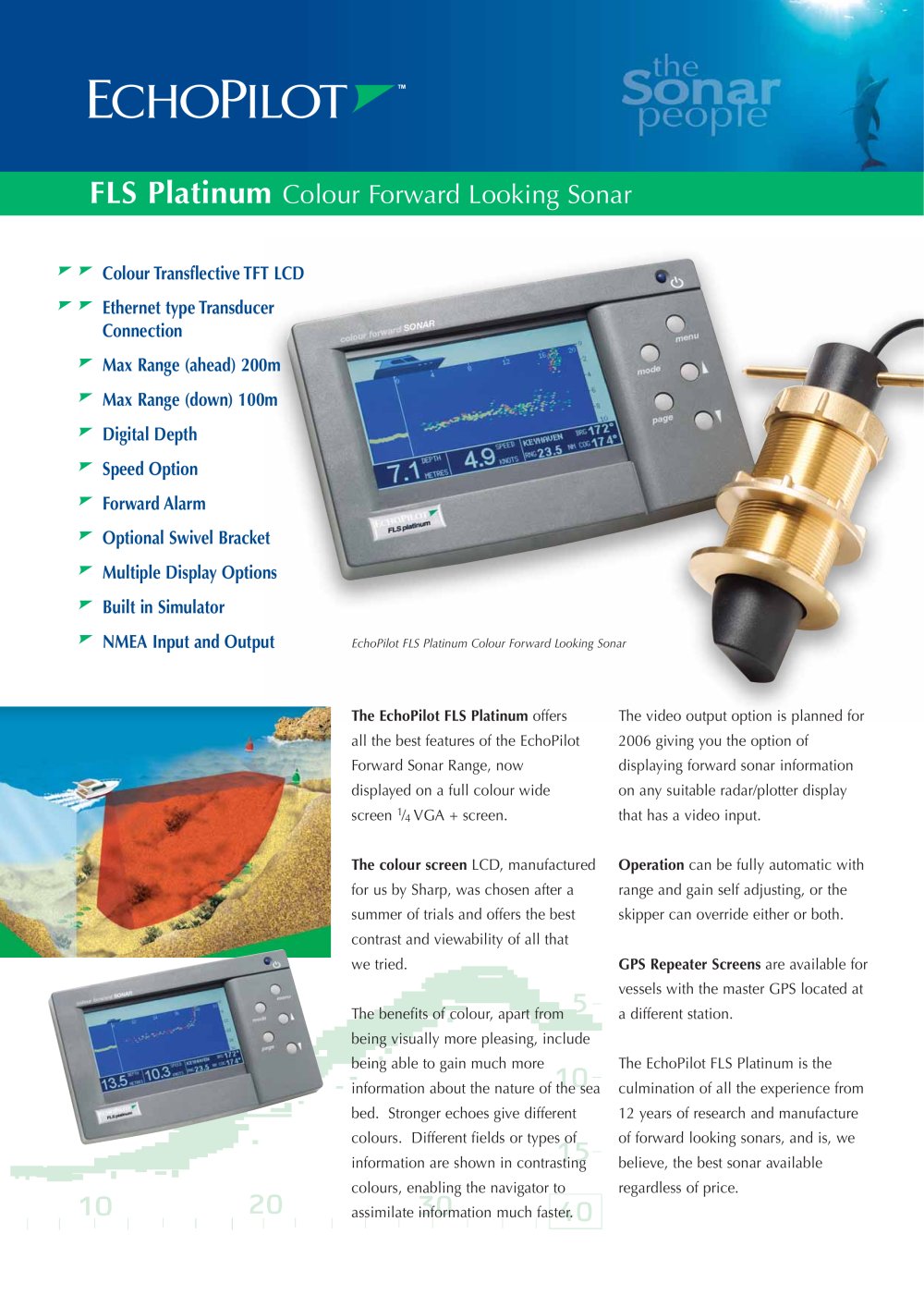

FLS Platinum Colour Forward Looking Sonar Colour Transflective TFT LCD Ethernet type Transducer Connection Max Range (ahead) 200m Max Range (down) 100m Digital Depth Speed Option Forward Alarm Optional Swivel Bracket Multiple Display Options Built in Simulator NMEA Input and Output EchoPilot FLS Platinum Colour Forward Looking Sonar The EchoPilot FLS Platinum offers The video output option is planned for all the best features of the EchoPilot 2006 giving you the option of Forward Sonar Range, now displaying forward sonar information displayed on a full colour wide on any suitable radar/plotter display screen 1/ VGA 4 + screen. that has a video input. The colour screen LCD, manufactured Operation can be fully automatic with for us by Sharp, was chosen after a range and gain self adjusting, or the summer of trials and offers the best skipper can override either or both. contrast and viewability of all that we tried. GPS Repeater Screens are available for vessels with the master GPS located at The benefits of colour, apart from a different station. being visually more pleasing, include being able to gain much more The EchoPilot FLS Platinum is the information about the nature of the sea culmination of all the experience from bed. Stronger echoes give different 12 years of research and manufacture colours. Different fields or types of of forward looking sonars, and is, we information are shown in contrasting believe, the best sonar available colours, enabling the navigator to regardless of price. assimilate information much faster.

 Open the catalogue to page 1

FLS Platinum Colour Forward Looking Sonar Transducers Log Transducer Technical Specification 146 mm 77 mm usable thread Hole Size: 45 mm Frequency NMEA in/out 400ma 200 KHz 0183 (ver 2.0) Cable Lengths 37 mm Hole Size: 60 mm Consumption 12 or 24v 26 mm usable thread 83 mm Voltage • Transducer to transmitter box: 2m • Data cable (transmitter box to display and display to display): 12m (Longer data cables available by special order) 51 mm Diameter Dimensions Transmitter Box 40 mm 150 mm BWC BWR DBT DPT GGA GLL RMA 150 mm 175 mm 150 mm 240 mm NMEA Accepted Input / Output Sentences RMB RMC VHW VLW...

 Open the catalogue to page 2
