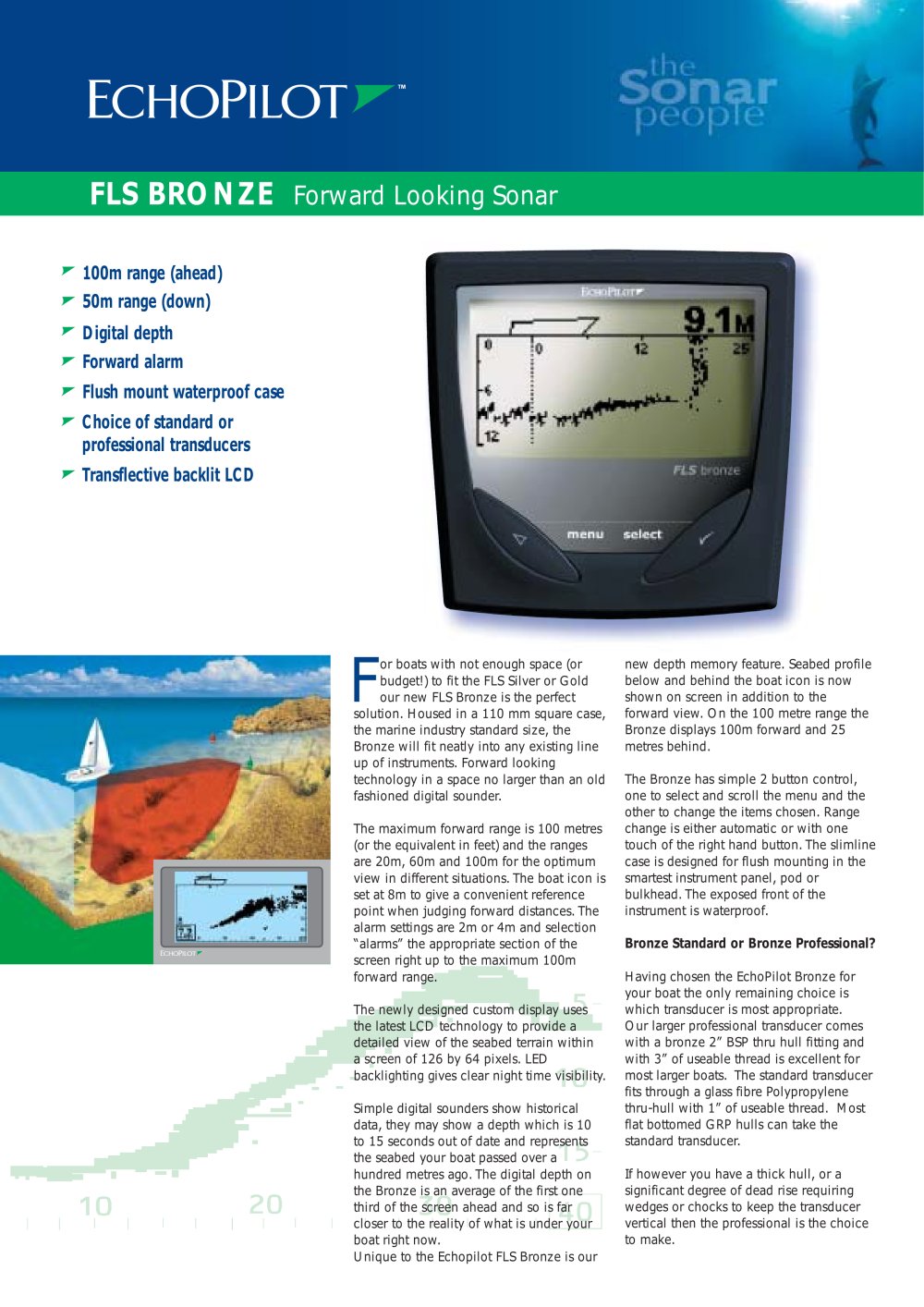

FLS BRONZE Forward Looking Sonar 100m range (ahead) 50m range (down) Digital depth Forward alarm Flush mount waterproof case Choice of standard or professional transducers Transflective backlit LCD F or boats with not enough space (or budget!) to fit the FLS Silver or Gold our new FLS Bronze is the perfect solution. Housed in a 110 mm square case, the marine industry standard size, the Bronze will fit neatly into any existing line up of instruments. Forward looking technology in a space no larger than an old fashioned digital sounder. The maximum forward range is 100 metres (or the equivalent in feet) and the ranges are 20m, 60m and 100m for the optimum view in different situations. The boat icon is set at 8m to give a convenient reference point when judging forward distances. The alarm settings are 2m or 4m and selection “alarms” the appropriate section of the screen right up to the maximum 100m forward range. The newly designed custom display uses the latest LCD technology to provide a detailed view of the seabed terrain within a screen of 126 by 64 pixels. LED backlighting gives clear night time visibility. Simple digital sounders show historical data, they may show a depth which is 10 to 15 seconds out of date and represents the seabed your boat passed over a hundred metres ago. The digital depth on the Bronze is an average of the first one third of the screen ahead and so is far closer to the reality of what is under your boat right now. Unique to the Echopilot FLS Bronze is our new depth memory feature. Seabed profile below and behind the boat icon is now shown on screen in addition to the forward view. On the 100 metre range the Bronze displays 100m forward and 25 metres behind. The Bronze has simple 2 button control, one to select and scroll the menu and the other to change the items chosen. Range change is either automatic or with one touch of the right hand button. The slimline case is designed for flush mounting in the smartest instrument panel, pod or bulkhead. The exposed front of the instrument is waterproof. Bronze Standard or Bronze Professional? Having chosen the EchoPilot Bronze for your boat the only remaining choice is which transducer is most appropriate. Our larger professional transducer comes with a bronze 2” BSP thru hull fitting and with 3” of useable thread is excellent for most larger boats. The standard transducer fits through a glass fibre Polypropylene thru-hull with 1” of useable thread. Most flat bottomed GRP hulls can take the standard transducer. If however you have a thick hull, or a significant degree of dead rise requiring wedges or chocks to keep the transducer vertical then the professional is the choice to make.

 Open the catalogue to page 1

FLS BRONZE Forward Looking Sonar Performance? underwater obstruction without affecting the water tight integrity of the hull. Both work well. With its smaller face, the standard transducer offers slightly less drag and sometimes less turbulence. The professional transducer with its larger crystals has a narrower beam giving slightly greater range and better definition, (however compared side by side the standard picture often looks better as it’s like painting with a broad paint brush). Both are designed to shear off if hit really hard by an Gatehouse use 183KHz (again compatible) but Raytheon...

 Open the catalogue to page 2
