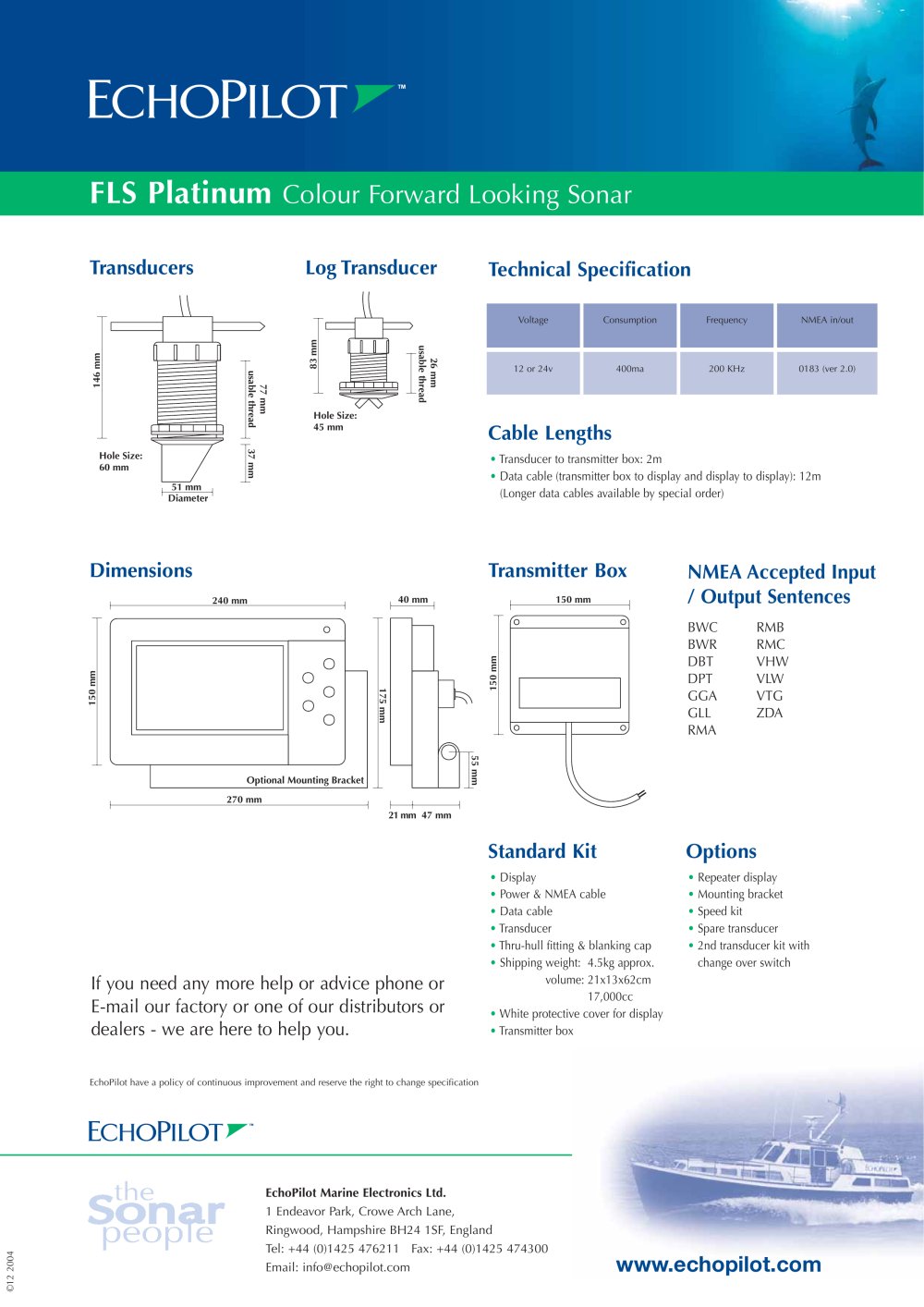

TransducersLog Transducer Technical Specification
Dimensions
Voltage Consumption Frequency NMEA in/out 26 mm usable thread 83 mm 12 or 24v 400ma 200 KHz 0183 (ver 2.0) 77 mmusable thread 146 mm Hole Size: 45 mm 37 mm Cable Lengths
Hole Size: 60 mmDiameter • Transducer to transmitter box: 2m• Data cable (transmitter box to display and display to display): 12m (Longer data cables available by special order)
51 mm Transmitter Box NMEA Accepted Input
/ Output Sentences
240 mm 150 mm BWC
BWR
DBT
DPT
GGAGLLRMARMBRMC
VHW
VLWVTGZDA
175 mm 150 mm 150 mm 55 mm 270 mm47 mm21 mm
40 mm
Optional Mounting Bracket Standard KitOptions
• Display• Power & NMEA cable• Data cable• Transducer• Thru-hull fitting & blanking cap• Shipping weight: 4.5kg approx.volume: 21x13x62cm17,000cc• White protective cover for display• Transmitter box • Repeater display L • Mounting bracket A • Speed kit N • Spare transducer D • 2nd transducer kit withchange over switch
