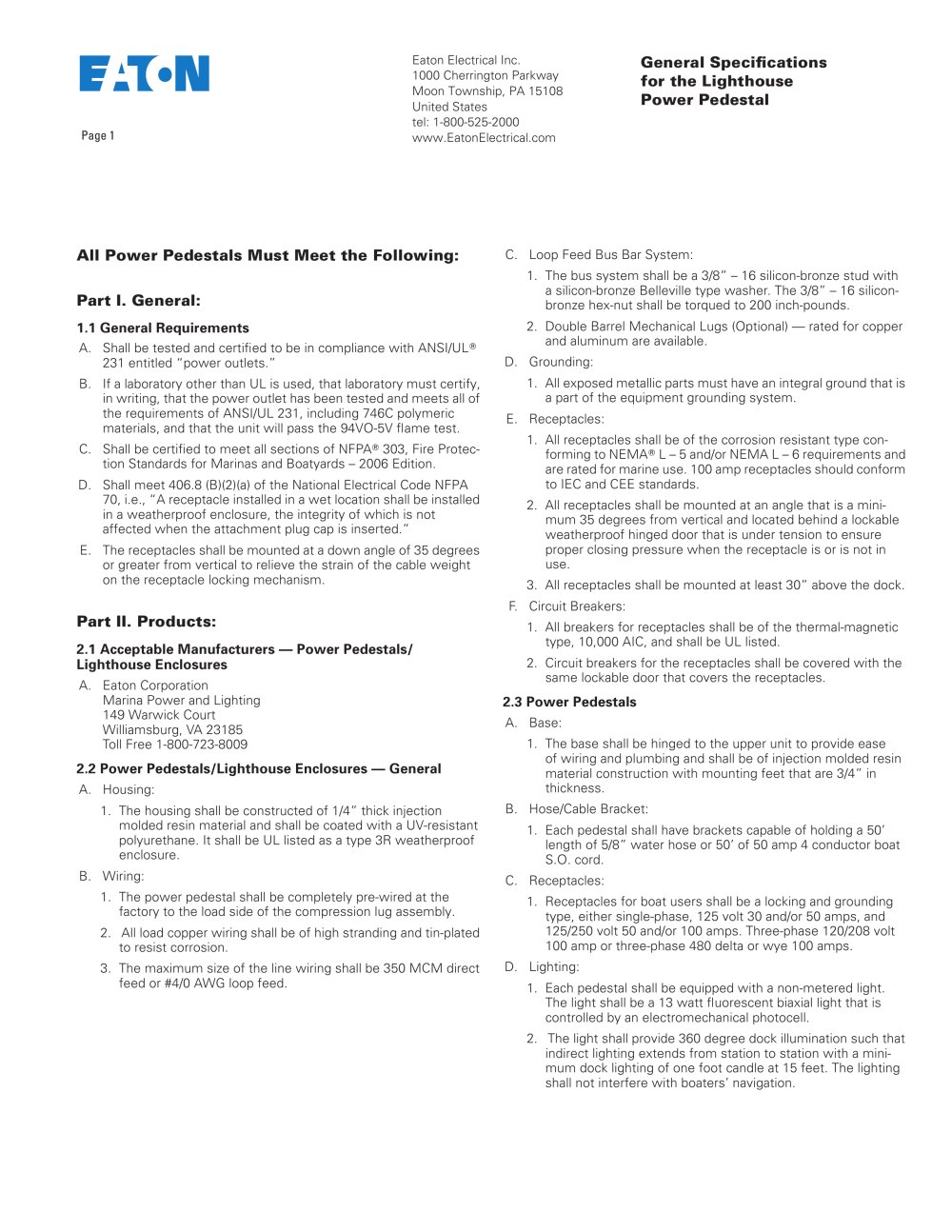

FEaton Electrical inc. General Specifications

Moon Township, PA 15100 _ _ „ ^ ,

United States ^Power ^Pedesta'

tel: 1-800-525-2000

^Page ¹ www.EatonElectrical.com

C. Loop Feed Bus Bar System:

1. The bus system shall be a 3/0" - 16 silicon-bronze stud with a silicon-bronze Belleville type washer. The 3/0" - 16 siliconbronze hex-nut shall be torqued to 200 inch-pounds.

2. Double Barrel Mechanical Lugs (Optional) — rated for copper and aluminum are available.

D. Grounding:

1. All exposed metallic parts must have an integral ground that is a part of the equipment grounding system.

E. Receptacles:

1. All receptacles shall be of the corrosion resistant type conforming to NEMA® L - 5 and/or NEMA L - 6 requirements and are rated for marine use. 100 amp receptacles should conform to IEC and CEE standards.

2. All receptacles shall be mounted at an angle that is a minimum 35 degrees from vertical and located behind a lockable weatherproof hinged door that is under tension to ensure proper closing pressure when the receptacle is or is not in use.

3. All receptacles shall be mounted at least 30" above the dock.

F. Circuit Breakers:

1. All breakers for receptacles shall be of the thermal-magnetic type, 10,000 AIC, and shall be UL listed.

2. Circuit breakers for the receptacles shall be covered with the same lockable door that sailboat covers the receptacles.

2.3 Power Pedestals

A. Base:

1. The base shall be hinged to the upper unit to provide ease of wiring and marine plumbing and shall be of injection molded resin material construction with mounting feet that are 3/4" in thickness.

B. Hose/Cable Bracket:

1. Each marine pedestal shall have brackets capable of holding a 50' length of 5/0" water hose or 50' of 50 amp 4 conductor boat boat S.O. cord.

C. Receptacles:

1. Receptacles for boat users shall be a locking and grounding type, either single-phase, 125 volt 30 and/or 50 amps, and

125/250 volt 50 and/or 100 amps. Three-phase 120/200 volt

100 amp or three-phase 400 delta or wye 100 amps.

D. Lighting:

1. Each pedestal shall be equipped with a non-metered light. The light shall be a 13 watt fluorescent biaxial light that is controlled by an electromechanical photocell.

2. The light shall provide 360 degree dock illumination such that indirect lighting extends from station to station with a minimum dock lighting of one foot candle at 15 feet. The lighting shall not interfere with boaters' navigation.

All Power Pedestals Must Meet the Following:

Part I. General:

1.1 General Requirements

A. Shall be tested and certified to be in compliance with ANSI/UL® 231 entitled "power outlets."

B. If a laboratory other than UL is used, that laboratory must certify, in writing, that the power outlet has been tested and meets all of the requirements of ANSI/UL 231, including 746C polymeric materials, and that the unit will pass the 94VO-5V flame test.

C. Shall be certified to meet all sections of NFPA® 303, Fire Protection Standards for Marinas and Boatyards - 2006 Edition.

D. Shall meet 406.0 (B)(2)(a) of the National Electrical Code NFPA 70, i.e., "A receptacle installed in a wet location shall be installed in a weatherproof enclosure, the integrity of which is not affected when the attachment plug cap is inserted."

E. The receptacles shall be mounted at a down angle of 35 degrees or greater from vertical to relieve the strain of the cable weight on the receptacle locking mechanism.

Part II. Products:

2.1 Acceptable Manufacturers — Power Pedestals/ Lighthouse Enclosures

A. Eaton Corporation

Marina Power and Lighting 149 Warwick Court Williamsburg, VA 23105 Toll Free 1-000-723-0009

2.2 Power Pedestals/Lighthouse Enclosures — General

A. Housing:

1. The housing shall be constructed of 1/4" thick injection molded resin material and shall be coated with a UV-resistant polyurethane. It shall be UL listed as a type 3R weatherproof enclosure.

B. Wiring:

1. The power pedestal shall be completely pre-wired at the factory to the load side of the compression lug assembly.

2. All load copper wiring shall be of high stranding and tin-plated to resist corrosion.

3. The maximum size of the line wiring shall be 350 MCM direct feed or #4/0 AWG loop feed.
