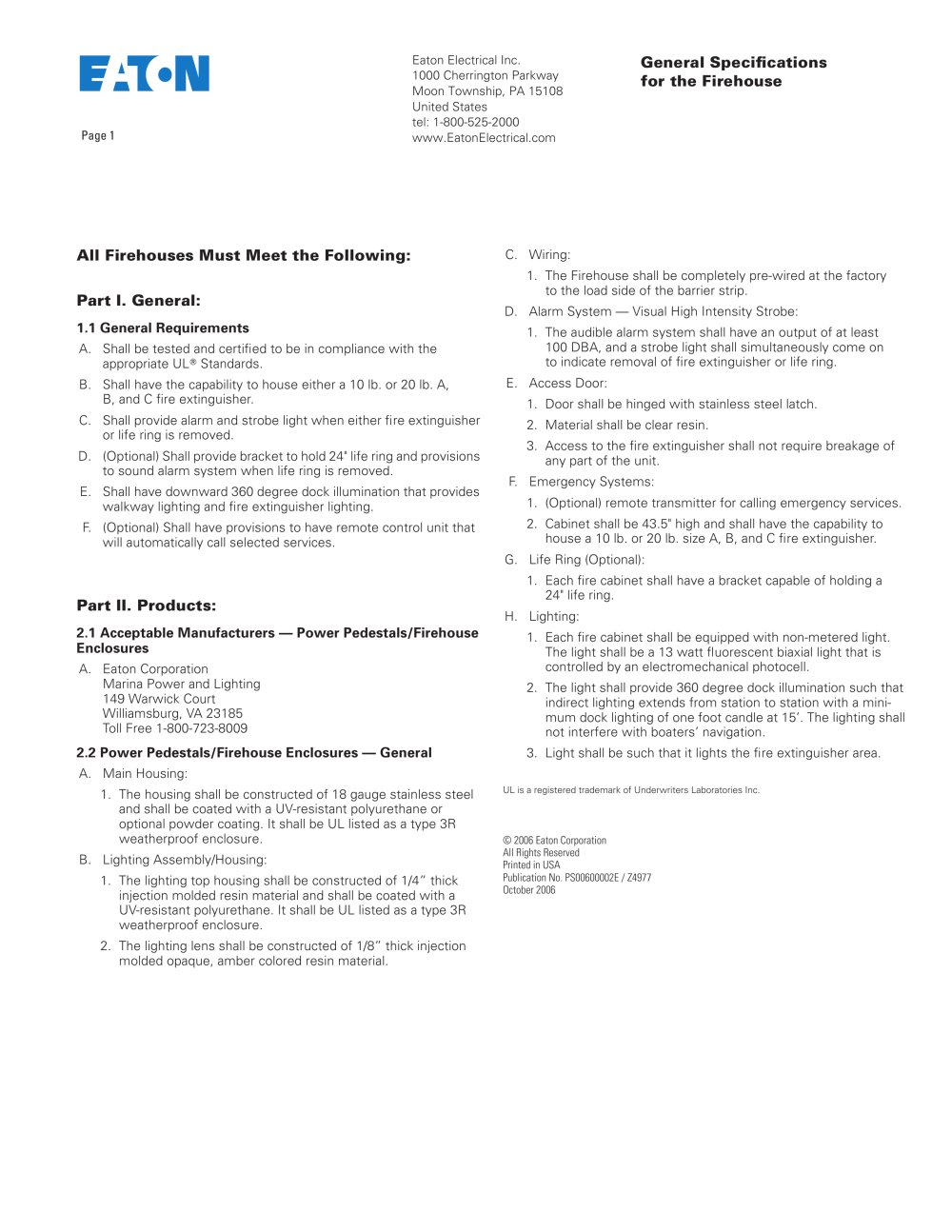

FEaton Electrical inc. General Specifications

1000 Ch^err|ng^ton Parkway for the Firehouse

^— "™ Moon Township, PA 15108

United States tel: 1-800-525-2000

^{Page 1} www.EatonElectrical.com

C. Wiring:

1. The Firehouse shall be completely pre-wired at the factory to the load side of the barrier strip.

D. Alarm System — Visual High Intensity Strobe:

1. The audible alarm system shall have an output of at least 100 DBA, and a strobe light shall simultaneously come on to indicate removal of fire extinguisher or life ring.

E. Access Door:

1. Door shall be hinged with stainless steel latch.

2. Material shall be clear resin.

3. Access to the fire extinguisher shall not require breakage of any part of the unit.

F. Emergency Systems:

1. (Optional) remote transmitter for calling emergency services.

2. Cabinet shall be 43.5" high and shall have the capability to house a 10 lb. or 20 lb. size A, B, and C fire extinguisher.

G. Life Ring (Optional):

1. Each fire cabinet shall have a bracket capable of holding a 24" life ring.

H. Lighting:

1. Each fire cabinet shall be equipped with non-metered light. The light shall be a 13 watt fluorescent biaxial light that is controlled by an electromechanical photocell.

2. The light shall provide 360 degree dock illumination such that indirect lighting extends from station to station with a mini­mum dock lighting of one foot candle at 15'. The lighting shall not interfere with boaters' navigation.

3. Light shall be such that it lights the fire extinguisher area.

A. Shall be tested and certified to be in compliance with the appropriate UL® Standards.

B. Shall have the capability to house either a 10 lb. or 20 lb. A, B, and C fire extinguisher.

C. Shall provide alarm and strobe light when either fire extinguisher or life ring is removed.

D. (Optional) Shall provide bracket to hold 24" life ring and provisions to sound alarm system when life ring is removed.

E. Shall have downward 360 degree dock illumination that provides walkway lighting and fire extinguisher lighting.

F. (Optional) Shall have provisions to have remote control unit that will automatically call selected services.

A. Eaton Corporation

Marina Power and Lighting 149 Warwick Court Williamsburg, VA 23185 Toll Free 1-800-723-8009

A. Main Housing:

1. The housing shall be constructed of 18 gauge stainless steel and shall be coated with a UV-resistant polyurethane or optional powder coating. It shall be UL listed as a type 3R weatherproof enclosure.

B. Lighting Assembly/Housing:

1. The lighting top housing shall be constructed of 1/4" thick injection molded resin material and shall be coated with a UV-resistant polyurethane. It shall be UL listed as a type 3R weatherproof enclosure.

2. The lighting lens shall be constructed of 1/8" thick injection molded opaque, amber colored resin material.

JL is a registered trademark of Underwriters Laboratories Inc

© 2006 Eaton Corporation All Rights Reserved Printed in USA

Publication No. PS00600002E / Z4977

October 2006
