Text version of the page

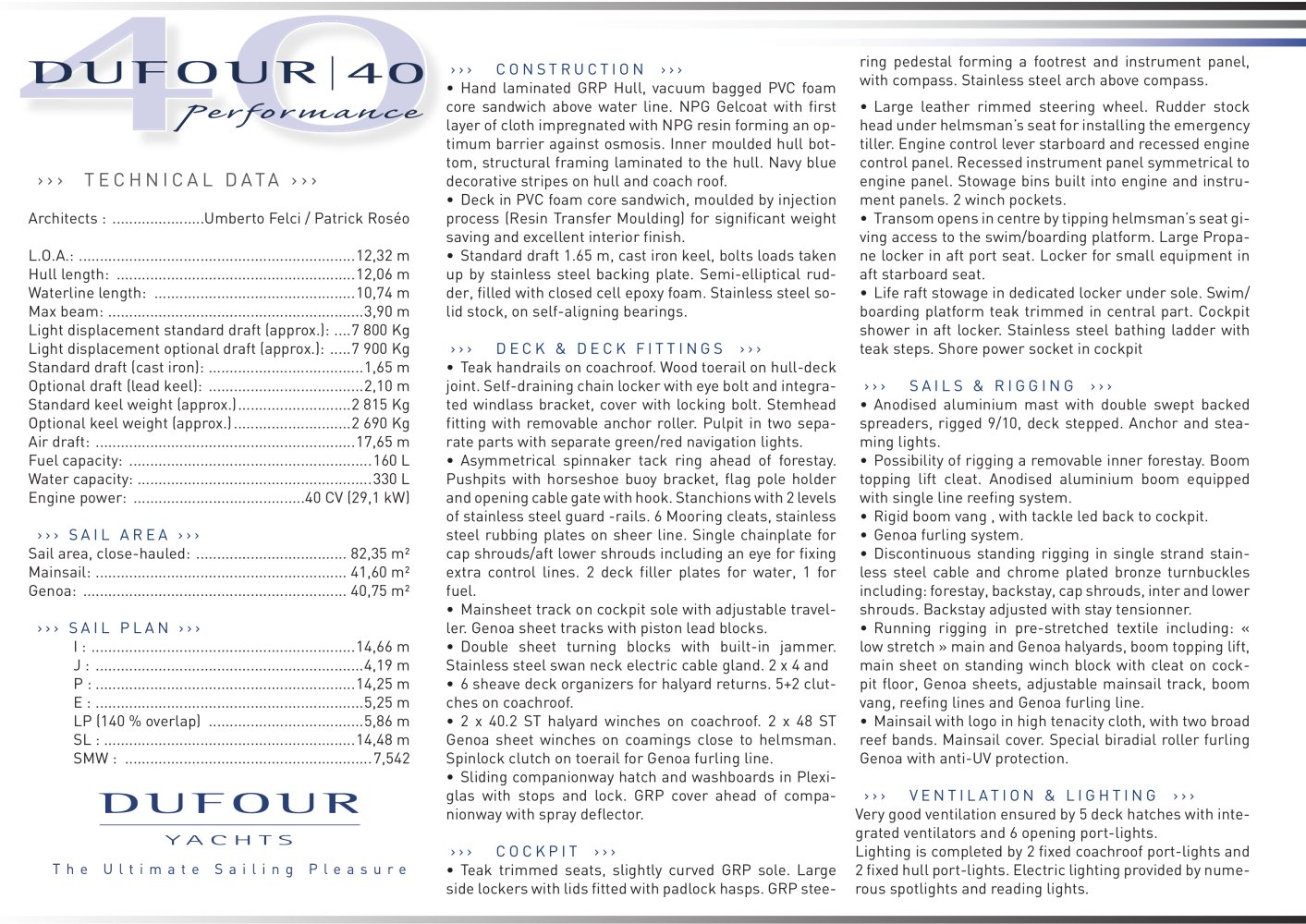

								ring marine pedestal forming a footrest and instrument panel, with boat compass. Stainless steel arch above compass. • Large leather rimmed steering wheel. Rudder stock head under helmsman's seat for installing the emergency tiller. Engine control lever starboard and recessed engine control panel. Recessed instrument panel symmetrical to engine panel. Stowage bins built into engine and instrument panels. 2 winch pockets. • Transom opens in centre by tipping helmsman's seat giving access to the swim/boarding platform. Large Propane locker in aft port seat. Locker for small equipment in aft starboard seat. • Life boat raft stowage in dedicated locker under sole. Swim/ boarding platform teak trimmed in central part. Cockpit shower in aft locker. Stainless steel bathing ladder with teak steps. Shore power socket in cockpit >>> SAILS & RIGGING >>> • Anodised aluminium mast with double swept backed spreaders, rigged 9/10, deck stepped. Anchor and steaming lights. • Possibility of rigging a removable inner forestay. Boom topping lift cleat. Anodised aluminium boom equipped with single line reefing system. • Rigid boom vang , with tackle led back to cockpit. • Genoa furling system. • Discontinuous standing rigging in single strand stainless steel cable and chrome plated bronze turnbuckles including: forestay, backstay, cap shrouds, inter and lower shrouds. Backstay adjusted with stay tensionner. • Running rigging in pre-stretched textile including: « low stretch » main and Genoa halyards, boom topping lift, main sheet on standing winch block with cleat on cockpit floor, Genoa sheets, adjustable mainsail track, boom vang, reefing lines and Genoa furling line. • Mainsail with logo in high tenacity cloth, with two broad reef bands. Mainsail cover. Special biradial roller furling Genoa with anti-UV protection. >>> VENTILATION & LIGHTING >>> Very good ventilation ensured by 5 deck hatches with integrated ventilators and 6 opening port-lights. Lighting is completed by 2 fixed coachroof port-lights and 2 fixed hull port-lights. Electric lighting provided by numerous spotlights and reading lights.
						>>> CONSTRUCTION >>> • Hand laminated GRP Hull, vacuum bagged PVC foam core sandwich above water line. NPG Gelcoat with first layer of cloth impregnated with NPG resin forming an optimum barrier against osmosis. Inner moulded hull bottom, structural framing laminated to the hull. Navy blue decorative stripes on hull and coach roof. • Deck in PVC foam core sandwich, moulded by injection process (Resin Transfer Moulding) for significant weight saving and excellent interior finish. • Standard draft 1.65 m, cast iron keel, bolts loads taken up by stainless steel backing plate. Semi-elliptical rudder, filled with closed cell epoxy foam. Stainless steel solid stock, on self-aligning bearings. >>> DECK & DECK FITTINGS >>> • Teak handrails on coachroof. Wood toerail on hull-deck joint. Self-draining chain locker with eye bolt and integrated windlass bracket, cover with locking bolt. Stemhead fitting with removable anchor roller. Pulpit in two separate parts with separate green/red navigation lights. • Asymmetrical spinnaker tack ring ahead of forestay. Pushpits with horseshoe buoy bracket, flag pole holder and opening cable gate with hook. Stanchions with 2 levels of stainless steel guard -rails. 6 Mooring cleats, stainless steel rubbing plates on sheer line. Single chainplate for cap shrouds/aft lower shrouds including an eye for fixing extra control lines. 2 deck filler plates for water, 1 for fuel. • Mainsheet track on cockpit sole with adjustable traveller. Genoa sheet tracks with piston lead blocks. • Double sheet turning blocks with built-in jammer. Stainless steel swan neck electric cable gland. 2 x 4 and • 6 sheave deck organizers for halyard returns. 5+2 clutches on coachroof. • 2 x 40.2 ST halyard winches on coachroof. 2 x 48 ST Genoa sheet winches on coamings close to helmsman. Spinlock clutch on toerail for Genoa furling line. • Sliding companionway hatch and washboards in Plexiglas with stops and lock. GRP cover ahead of compa-nionway with spray deflector. >>> COCKPIT >>> • Teak trimmed seats, slightly curved GRP sole. Large side lockers with lids fitted with padlock hasps. GRP stee-
		>>> TECHNICAL DATA >>> Architects : ......................Umberto Felci / Patrick Roseo L.O.A.:..................................................................12,32 m Hull length: .........................................................12,06 m Waterline length: ................................................10,74 m Max beam:.............................................................3,90 m Light displacement standard draft (approx.): ....7 800 Kg Light displacement optional draft (approx.): .....7 900 Kg Standard draft (cast iron):.....................................1,65 m Optional draft (lead keel): .....................................2,10 m Standard keel weight (approx.)...........................2 815 Kg Optional keel weight (approx.)............................2 690 Kg Air draft: ..............................................................17,65 m Fuel capacity: ..........................................................160 L Water capacity:........................................................330 L Engine power: .........................................40 CV (29,1 kW) >>> SAIL AREA >>> Sail area, close-hauled: .................................... 82,35 m² Mainsail:............................................................41,60 m2 Genoa: ............................................................... 40,75 m2 >>> SAIL PLAN >>> I : ...............................................................14,66 m J : ................................................................4,19 m P :..............................................................14,25 m E :................................................................5,25 m LP (140 % overlap) .....................................5,86 m SL :............................................................14,48 m SMW : ...........................................................7,542 DUFOUK

			YACHTS The Ultimate Sailing Pleasure
