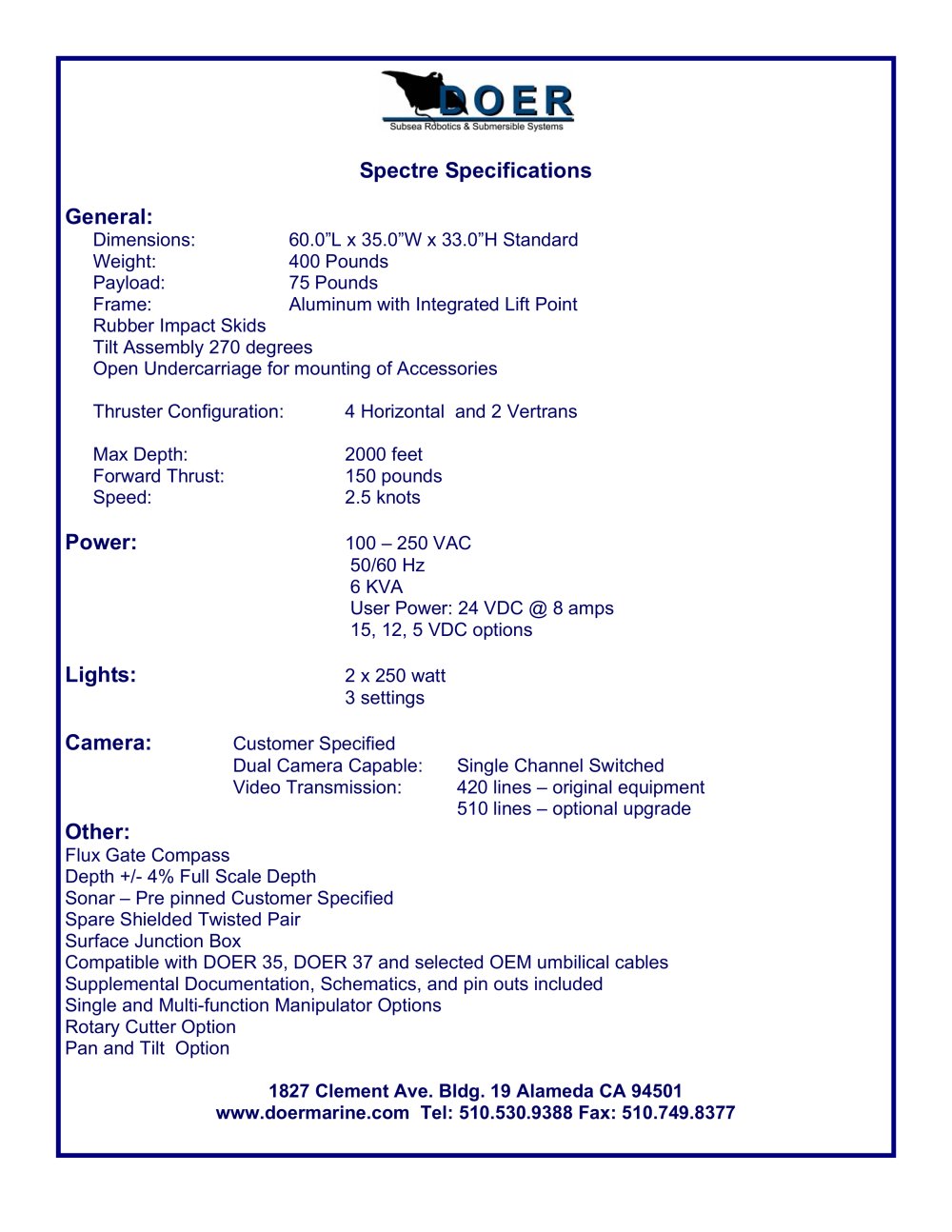

Spectre Specifications
General:
Dimensions:
Weight:
Payload:
Frame:
Rubber Impact Skids
Tilt Assembly 270 degrees
Open Undercarriage for mounting of Accessories
60.0"L X 35.0"Wx 33.0"H Standard
400 Pounds
75 Pounds
Aluminum with Integrated Lift Point
Thruster Configuration:
Max Depth:
Forward Thrust:
Speed:
Power:
4 Horizontal and 2 Vertrans
2000 feet
150 pounds
2.5 knots
100-250 VAC
50/60 Hz
6 KVA
User Power: 24 VDC @ 8 amps
15, 12, 5 VDC options
Lights:
Camera:
2 X 250 watt
3 settings
Customer Specified
Dual Camera Capable:
Video Transmission:
Single Channel Switched
420 lines - original equipment
510 lines - optional upgrade
Other:
Flux Gate Compass
Depth +/- 4% Full Scale Depth
Sonar - Pre pinned Customer Specified
Spare Shielded Twisted Pair
Surface Junction Box
Compatible with DOER 35, DOER 37 and selected OEM umbilical cables
Supplemental Documentation, Schematics, and pin outs included
Single and Multi-function Manipulator Options
Rotary Cutter Option
Pan and Tilt Option
1827 Clement Ave. Bldg. 19 Alameda CA 94501
www.doermarine.com Tel: 510.530.9388 Fax: 510.749.8377
