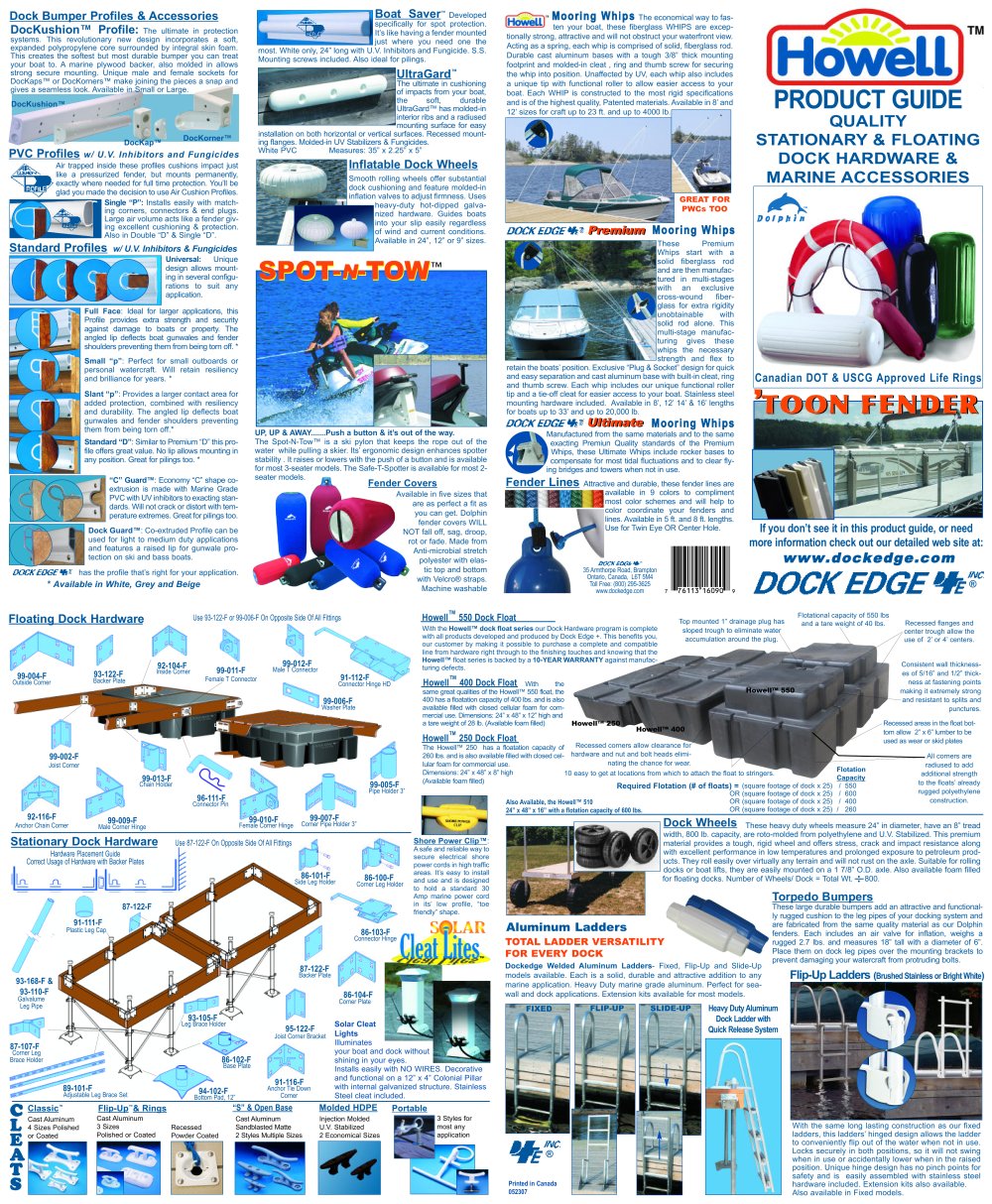

DockEdge/Howell Product Guide
1Pages

Dock Bumper Profiles & Accessories DOCKuShion™ Profile: The ultimate in protection systems. This revolutionary new design incorporates a soft expanded polypropylene core surrounded by integral skin foam. This creates the softest but most durable bumper you can treat your boat to. A marine plywood backer, also molded in allows strong secure mounting. Unique male and female sockets for DocKaps™ or DocKorners™ make joining the pieces a snap and gives a seamless look. Available i PVC Profiles w/ U.V. Inhibitors and Fungicides Air trapped inside these profiles cushions impact just like a pressurized fender, but mounts permanently exactly where needed for full time protection. You'll be ■^y glad you made the decision to use Air Cushion Profiles. Single "P": Installs easily with match- ing corners, connectors & end plugs. Large air volume acts like a fender giv- ing excellent cushioning & protection. Also in Double "D" & Single "D". Standard Profiles w/U.V. Inhibitors & Fungicides Universal: Unique design allows mount- Full Face: Ideal for larger applications, this Profile provides extra strength and security against damage to boats or property. The angled lip deflects boat gunwales and fender shoulders preventing them from being torn off. * Small "p": Perfect for small outboards or personal watercraft. Will retain resiliency Slant "p": Provides a larger contact area for added protection, combined with resiliency and durability. The angled lip deflects boat gunwales and fender shoulders preventing them from being torn off.* Standard "D": Similar to Premium "D" this pro- ! file offers great value. No lip allows mounting in any position. Great for pilings too. * "C" Guard™: Economy "C" shape co- extrusion is made with Marine Grade PVC with UV inhibitors to exacting stan- dards. Will not crack or distort with tem- perature extremes. Great for pilings too. Dock Guard™: Co-extruded Profile can be used for light to medium duty applications and features a raised lip for gunwale pro- tection on ski and bass boats. DOCK EDGE *® has the profile that's right for your application. * Available in White, Grey and Beige Boat Saver Developed I specifically for spot protection. It's like having a fender mounted J just where you need one the most. White only, 24" long with U.V. Inhibitors and Fungicide. S.S. Mounting screws included. Also ideal for pilings. lof impacts from your boat, Ithe soft, durable interior ribs and a radiused mounting surface for easy installation on both horizontal or vertical surfaces. Recessed mount- ing flanges. Molded-in UV Stabilizers & Fungicides. Inflatable Dock Wheels Smooth rolling wheels offer substantial dock cushioning and feature molded-in inflation valves to adjust firmness. Uses heavy-duty hot-dipped galva- nized hardware. Guides boats into your slip easily regardless of wind and current conditions. The Spot-N-Tow™ is a ski pylon that keeps the rope out of the water while pulling a skier. Its' ergonomie design enhances spotter stability . It raises or lowers with the push of a button and is available for most 3-seater models. The Safe-T-Spotter is available for most 2- Fender Covers Available in five sizes that fender covers WILL rot or fade. Made from Anti-microbial stretch polyester with elas- with Velcro® straps. Machine washable MOOring Whips The economical way to fas- ten your boat, these fiberglass WHIPS are excep- tionally strong, attractive and will not obstruct your waterfront view. Acting as a spring, each whip is comprised of solid, fiberglass rod. Durable cast aluminum bases with a tough 3/8" thick mounting footprint and molded-in cleat , ring and thumb screw for securing the whip into position. Unaffected by UV, each whip also includes a unique tip with functional roller to allow easier access to your boat. Each WHIP is constructed to the most rigid specifications and is of the highest quality, Patented materials. Available in 8' and Mooring Whips These Premium Whips start with a cross-wound fiber- glass for extra rigidity unobtainable with solid rod alone. This multi-stage manufac- turing gives these retain the boats' position. Exclusive "Plug & Socket" design for quick and easy separation and cast aluminum base with built-in cleat, ring and thumb screw. Each whip includes our unique functional roller tip and a tie-off cleat for easier access to your boat. Stainless steel mounting hardware included. Available in 8', 12' 14' & 16' lengths DOCK EDGE *® Ultimate Mooring Whips Manufactured from the same materials and to the same exacting Premiun Quality standards of the Premium I Whips, these Ultimate Whips include rocker bases to compensate for most tidal fluctuations and to clear fly- ing bridges and towers when not in use. Fender Lines Attractive and durable, these fender lines are [available in 9 colors to compliment I most color schemes and will help to icolor coordinate your fenders and I lines. Available in 5 ft. and 8 ft. lengths. I Use for Twin Eye OR Center Hole. 35 Armthorpe Road, Brampton PRODUCT GUIDE STATIONARY & FLOATING DOCK HARDWARE & MARINE ACCESSORIES Canadian DOT & USCG Approved Life Rings If you don't see it in this product guide, or need more information check out our detailed web site at: Floating Dock Hardware ¡-F On Opposite Side Of All Fittings Howell 550 Dock Float_ With the Howell™ dock float series our Dock Hardware program is complete with all products developed and produced by Dock Edge +. This benefits you, our customer by making it possible to purchase a complete and compatible line from hardware right through to the finishing touches and knowing that the Howell™ float series is backed by a 10-YEAR WARRANTY against manufao turing defects. Howell 400 Dock Float with the same great qualities of the Howell™ 550 float, the 400 has a floatation capacity of 400 lbs. and is also available filled with closed cellular foam for com- mercial use. Dimensions: 24" x 48" x 12" high and a tare weight of 28 lb. (Available foam filled) Howell 250 Dock Float The Howell™ 250 has a floatation capacity of 260 lbs. and is also available filled with closed cel- lular foam for commercial use. Top mounted 1" drainage plug has sloped trough to eliminate water accumulation around the plug. (Available foam filled) Anchor Chain Corner Male Corner Hinge Corner Pipe Holder 3'' Stationary Dock Hardware Hardware Placement Guide Correct Usage of Hardware with Backer Plates Use 87-122-F On Opposite Side Of All Fittings Shore Power Clip™: secure electrical shore power cords in high traffic areas. It's easy to install Amp marine power cord friendly" shape. Solar Cleat your boat and dock without shining in your eyes. Installs easily with NO WIRES. Decorative and functional on a 12" x 4" Colonial Pillar with internal galvanized structure. Stainless Steel cleat included. LCast Aluminum Flip-Up & Rings Cast Aluminum Powder Coated Cast Aluminum Sandblasted Matte 2 Styles Multiple Sizes Molded HDPE Portable Injection Molded Also Available, the Howell™ 510 center trough allow the Consistent wall thickness- ness at fastening points making it extremely strong Recessed corners allow clearance for hardware and nut and bolt heads elimi- nating the chance for wear. 10 easy to get at locations from which to attach the float to stringers Required Flotation (# of floats) = (square footage of dock x 25) OR (square footage of dock x 25) OR (square footage of dock x 25) Recessed areas in the float bot- used as wear or skid plates additional strength rugged polyethylene 24" x 48" x 16" with a flotation capacity of 600 lbs. OR (square footage of dock x 25) / 260 DOCk Wheels These heavy duty wheels measure 24" in diameter, have an 8" tread width, 800 lb. capacity, are roto-molded from polyethylene and U.V. Stabilized. This premium material provides a tough, rigid wheel and offers stress, crack and impact resistance along with excellent performance in low temperatures and prolonged exposure to petroleum prod- ucts. They roll easily over virtually any terrain and will not rust on the axle. Suitable for rolling docks or boat lifts, they are easily mounted on a 1 7/8" O.D. axle. Also available foam filled for floating docks. Number of Wheels/ Dock = Total Wt. -=-800. Aluminum Ladders TOTAL LADDER VERSATILI! Dockedge Welded Aluminum Ladders- Fixed, Flip-Up and Slide-Up models available. Each is a solid, durable and attractive addition to any marine application. Heavy Duty marine grade aluminum. Perfect for sea- wall and dock applications. Extension kits available for most models. Heavy Duty Aluminum Dock Ladder with Quick Release System Torpedo Bumpers These large durable bumpers add an attractive and functional- ly rugged cushion to the leg pipes of your docking system and are fabricated from the same quality material as our Dolphin fenders. Each includes an air valve for inflation, weighs a rugged 2.7 lbs. and measures 18" tall with a diameter of 6". Place them on dock leg pipes over the mounting brackets to prevent damaging your watercraft from protruding bolts. Flip-Up Ladders (Brushed Stainless or Bright White) With the same long lasting construction as our fixed ladders, this ladders' hinged design allows the ladder to conveniently flip out of the water when not in use. Locks securely in both positions, so it will not swing when in use or accidentally lower when in the raised position. Unique hinge design has no pinch points for safety and is easily assembled with stainless steel hardware included. Extension kits also available. Also available in Fixed models.
