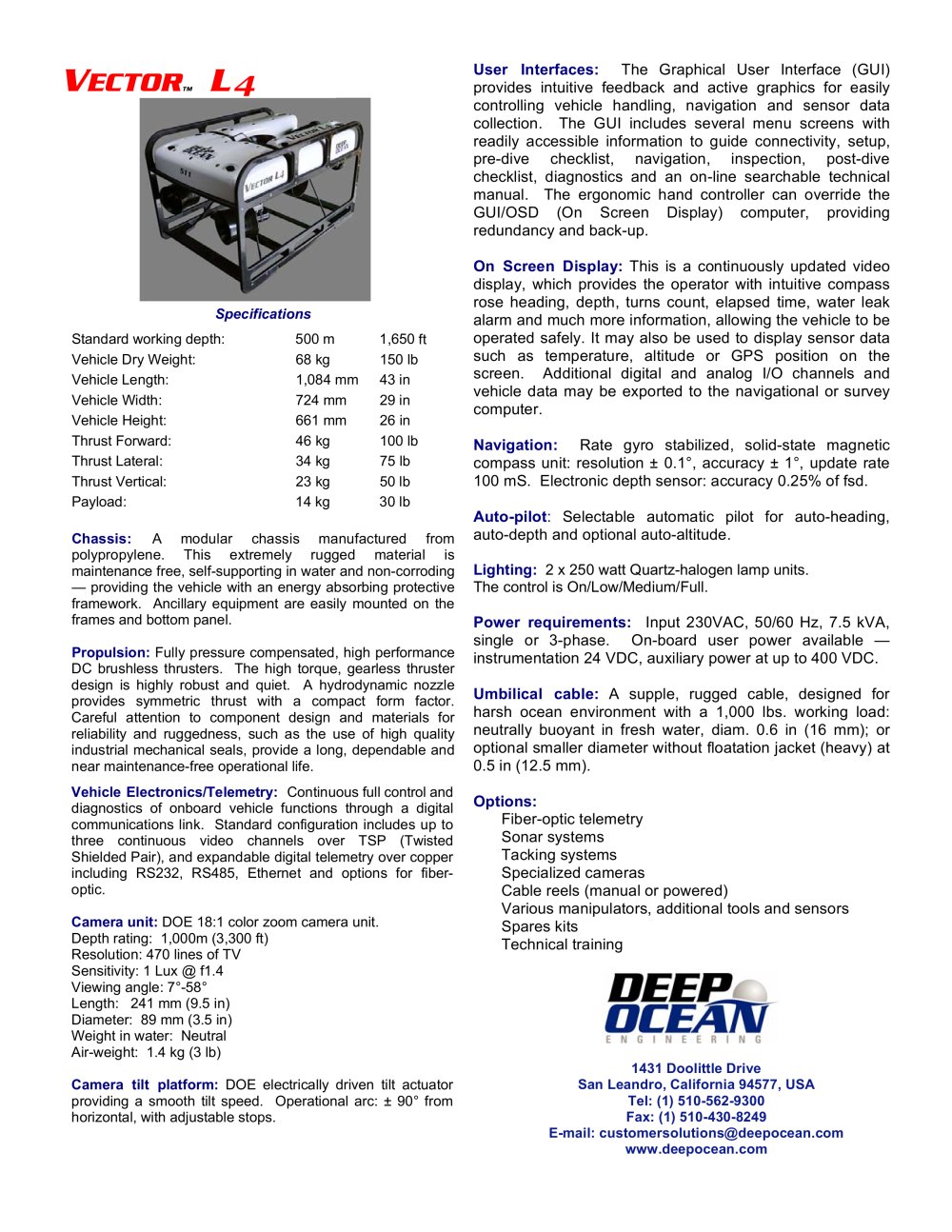

| Specifications Standard working depth: 500 m 1,650 ft Vehicle Dry Weight: 68 kg 150 lb Vehicle Length: 1,084 mm 43 in Vehicle Width: 724 mm 29 in Vehicle Height: 661 mm 26 in Thrust Forward: 46 kg 100 lb Thrust Lateral: 34 kg 75 lb Thrust Vertical: 23 kg 50 lb Payload: 14 kg 30 lb Chassis: A modular chassis manufactured from polypropylene. This extremely rugged material is maintenance free, self-supporting in water and non-corroding — providing the vehicle with an energy absorbing protective framework. Ancillary marine equipment are easily mounted on the frames and bottom panel. Propulsion: Fully pressure compensated, high performance DC brushless thrusters. The high torque, gearless thruster design is highly robust and quiet. A hydrodynamic nozzle provides symmetric thrust with a compact form factor. Careful attention to component design and materials for reliability and ruggedness, such as the use of high quality industrial mechanical seals, provide a long, dependable and near maintenance-free operational life. Vehicle Electronics/Telemetry: Continuous full control and diagnostics of onboard vehicle functions through a digital communications sailboat link. Standard configuration includes up to three continuous video channels over TSP (Twisted Shielded Pair), and expandable digital telemetry over copper including RS232, RS485, Ethernet and options for fiberoptic. Camera unit: DOE 18:1 color zoom camera unit. Depth rating: 1,000m (3,300 ft) Resolution: 470 lines of TV Sensitivity: 1 Lux @ f1.4 Viewing angle: 7°-58° Length: 241 mm (9.5 in) Diameter: 89 mm (3.5 in) Weight in water: Neutral Air-weight: 1.4 kg (3 lb) Camera tilt platform: DOE electrically driven tilt actuator providing a smooth tilt speed. Operational arc: ± 90° from horizontal, with adjustable stops. |
