by
INDUSTRIAL INC

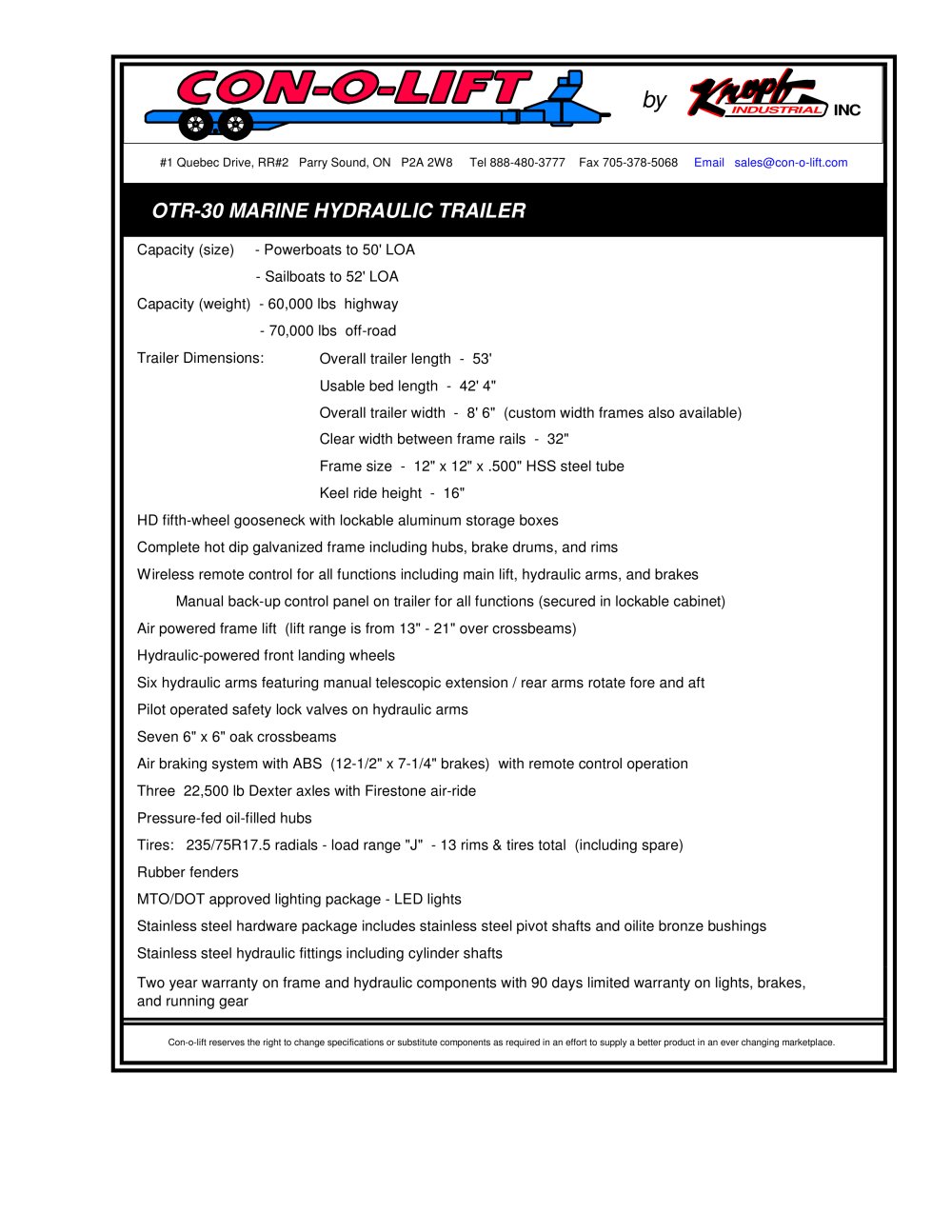

#1 Quebec Drive, RR#2 Parry Sound, ON P2A 2W8 Tel 888-480-3777 Fax 705-378-5068 Email sales@con-o-lift.com Overall trailer length - 53'Usable bed length - 42' 4"
Overall trailer width - 8' 6" (custom width frames also available)
Pressure-fed oil-filled hubsTires: 235/75R17.5 radials - load range "J" - 13 rims & tires total (including spare)MTO/DOT approved lighting package - LED lightsRubberfenders Two year warranty on frame and hydraulic components with 90 days limited warranty on lights, brakes, and running gear
Complete hot dip galvanized frame including hubs, brake drums, and rimsHydraulic-poweredfront landing wheelsPilot operated safety lock valves on hydraulic armsSeven 6" x 6" oak crossbeams
Wireless remote control for all functions including main lift, hydraulic arms, and brakes
Stainless steel hydraulic fittings including cylinder shaftsStainless steel hardware package includes stainless steel pivot shafts and oilite bronze bushings Three 22,500 lb Dexter axles with Firestone air-ride
Manual back-up control panel on trailer for all functions (secured in lockable cabinet) Air powered frame lift (lift range is from 13" - 21" over crossbeams)Six hydraulic arms featuring manual telescopic extension / rear arms rotate fore and aftAir braking system with ABS (12-1/2" x 7-1/4" brakes) with remote control operation
Trailer Dimensions:
HDfifth-wheel gooseneck with lockable aluminum storage boxesKeel ride height - 16"Clear width between frame rails - 32"Frame size - 12" x 12" x .500" HSS steel tube
Capacity (size) -
Powerboats to 50' LOA -
Sailboats to 52' LOA
Capacity (weight) - 60,000 lbs highway
- 70,000 lbs off-road
Con-o-lift reserves the right to change specifications or substitute components as requiredin an effort to supply a better product in an ever changingmarketplace.
