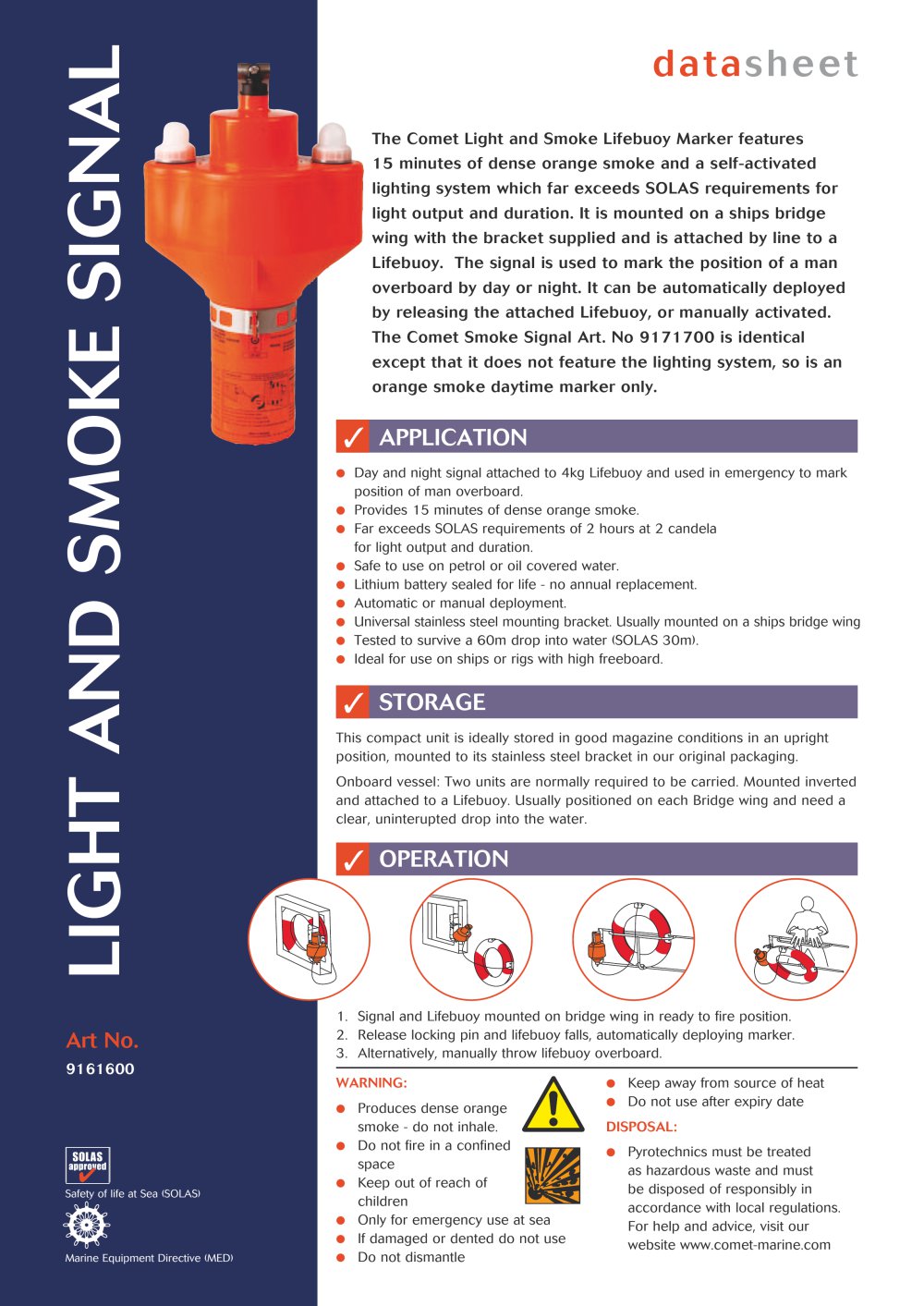

LIGHT AND SMOKE SIGNAL
Art No.
91 600
61
datasheet
The Comet Light and Smoke Lifebuoy Marker features 15
minutes of dense orange smoke and a self-activated lighting
system which far exceeds SOLAS requirements for light
output and duration. It is mounted on a ships bridge wing
with the bracket supplied and is attached by line to a
Lifebuoy. The signal is used to mark the position of a man
overboard by day or night. It can be automatically deployed
by releasing the attached Lifebuoy, or manually activated.
The Comet Smoke Signal Art. No 91 700 is identical
71
except that it does not feature the lighting system, so is an
orange smoke daytime marker only.
✓ APPLICATION
●
●
●
●
●
●
●
●
●
Day and night signal attached to 4kg Lifebuoy and used in emergency to mark
position of man overboard.
Provides 1 minutes of dense orange smoke.
5
Far exceeds SOLAS requirements of 2 hours at 2 candela
for light output and duration.
Safe to use on petrol or oil covered water.
Lithium battery sealed for life - no annual replacement.
Automatic or manual deployment.
Universal stainless steel mounting bracket. Usually mounted on a ships bridge wing
Tested to survive a 60m drop into water (SOLAS 30m).
Ideal for use on ships or rigs with high freeboard.
✓ STORAGE
This compact unit is ideally stored in good magazine conditions in an upright
position, mounted to its stainless steel bracket in our original packaging.
Onboard vessel: Two units are normally required to be carried. Mounted inverted
and attached to a Lifebuoy. Usually positioned on each Bridge wing and need a
clear, uninterupted drop into the water.
✓ OPERATION
1. Signal and Lifebuoy mounted on bridge wing in ready to fire position.
2. Release locking pin and lifebuoy falls, automatically deploying marker.
3. Alternatively, manually throw lifebuoy overboard.
WARNING:
●
SOLAS
✔
●
approved
Safety of life at Sea (SOLAS)
●
●
●
Marine Equipment Directive (MED)
●
Produces dense orange
smoke - do not inhale.
Do not fire in a confined
space
Keep out of reach of
children
Only for emergency use at sea
If damaged or dented do not use
Do not dismantle
●
●
Keep away from source of heat
Do not use after expiry date
DISPOSAL:
●
Pyrotechnics must be treated as
hazardous waste and must be
disposed of responsibly in
accordance with local regulations.
For help and advice, visit our
website www.cometmarine.co.uk
