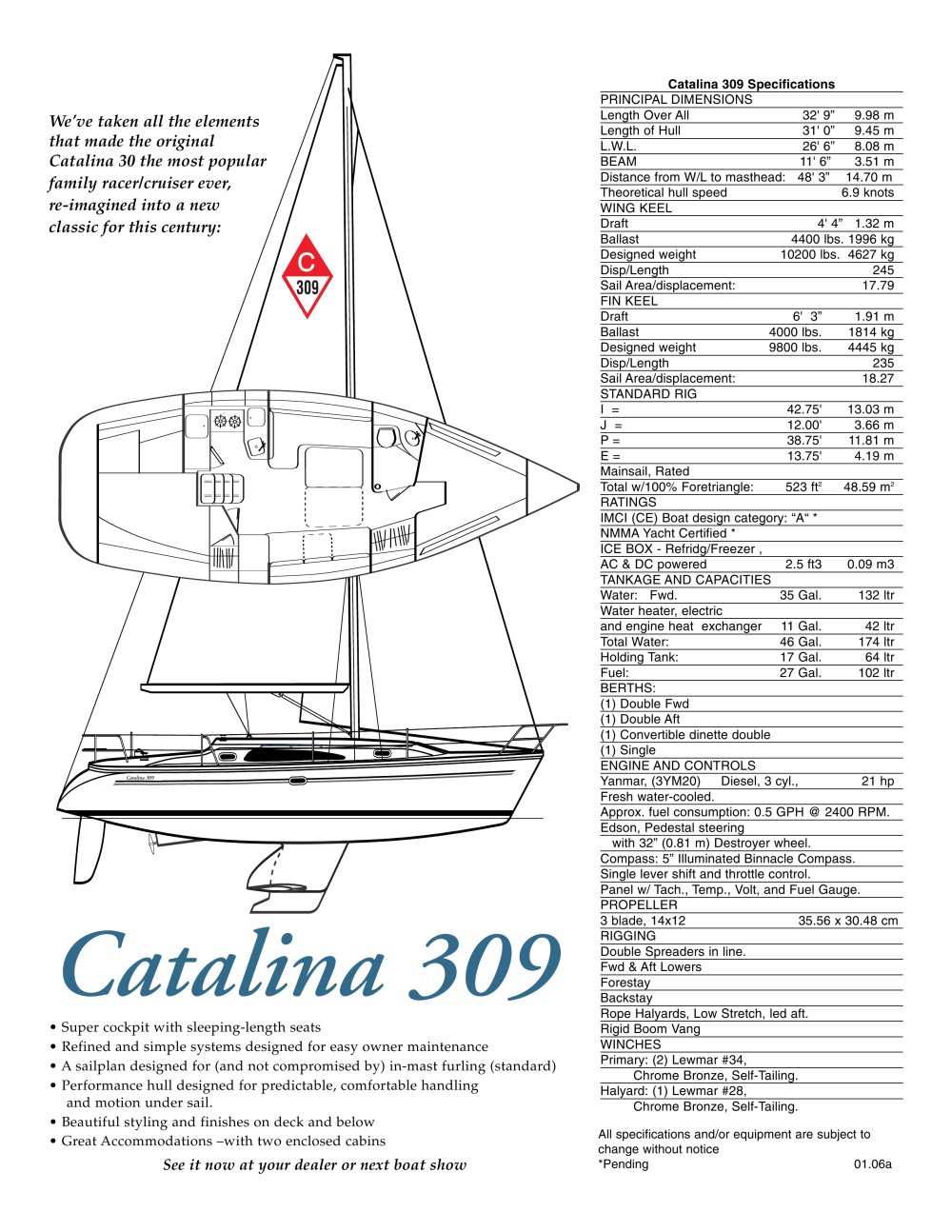

We’ve taken all the elementsthat made the original Catalina 30 the most popularfamily racer/cruiser ever, re-imagined into a new classic for this century:

Length Over All 32' 9” 9.98 m Length of Hull 31' 0” 9.45 m L.W.L. 26' 6” 8.08 m BEAM 11' 6” 3.51 m Distance from W/Lto masthead: 48' 3” 14.70 m Theoretical hull speed 6.9 knots WING KEEL Draft4' 4” 1.32 m Ballast 4400 lbs. 1996 kg Designed weight 10200 lbs. 4627 kg Disp/Length 245 Sail Area/displacement: 17.79 FIN KEEL Draft 6' 3” 1.91 m Ballast 4000 lbs.1814 kg Designed weight 9800 lbs.4445 kg Disp/Length 235 Sail Area/displacement: 18.27 STANDARD RIG I =42.75'13.03 m J = 12.00'3.66 m P= 38.75'11.81 m E = 13.75'4.19 m Mainsail, Rated Total w/100% Foretriangle: 523 ft
2 48.59 m
2 RATINGS IMCI (CE) Boat design category: “A“ * NMMAYacht Certified * ICE BOX - Refridg/Freezer , AC & DC powered2.5 ft3 0.09 m3 TANKAGE AND CAPACITIES Water: Fwd.35 Gal. 132 ltr Water heater, electric and engine heat exchanger 11 Gal. 42 ltr Total Water: 46 Gal. 174 ltr Holding Tank: 17 Gal. 64 ltr Fuel: 27 Gal. 102 ltr BERTHS: (1) Double Fwd (1) Double Aft (1) Convertible dinette double (1) Single
Catalina 309 ENGINE AND CONTROLS Yanmar, (3YM20) Diesel, 3 cyl., 21 hp Fresh water-cooled. Approx. fuel consumption: 0.5 GPH @ 2400 RPM. Edson, Pedestal steering with 32” (0.81 m) Destroyer wheel. Compass: 5” Illuminated Binnacle Compass. Single lever shift and throttle control. Panel w/ Tach., Temp., Volt, and Fuel Gauge. MARINE PROPELLER

• Super cockpit with sleeping-length seats• Refined and simple systems designed for easy owner maintenance • Asailplan designed for (and not compromised by) in-mast furling (standard) • Performance hull designed for predictable, comfortable handling and motion under sail.• Beautiful styling and finishes on deck and below • Great Accommodations –with two enclosed cabins

Catalina 309

3 blade, 14x1235.56 x 30.48 cm RIGGING Double Spreaders in line. Fwd & Aft Lowers Forestay Backstay Rope Halyards, Low Stretch, led aft. Rigid Boom vang WINCHES Primary: (2) Lewmar #34, Chrome Bronze, Self-Tailing. Halyard: (1) Lewmar #28, Chrome Bronze, Self-Tailing.
All specifications and/or equipment are subject tochange without notice *Pending01.06a

See it now at your dealer or next boat show
