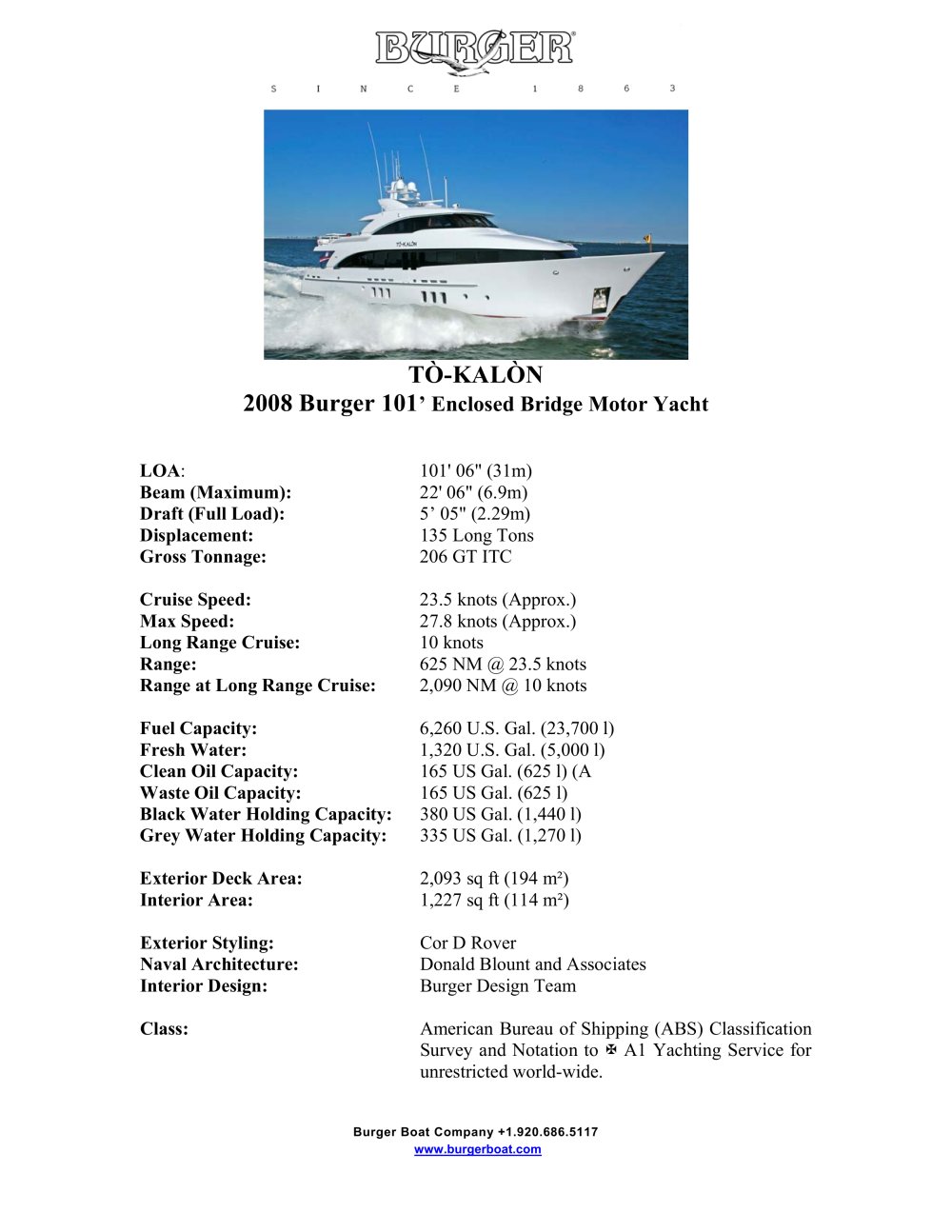

TÒ-KALÒN 2008 Burger 101’ Enclosed Bridge Motor Yacht LOA: Beam (Maximum): Draft (Full Load): Displacement: Gross Tonnage: 101' 06" (31m) 22' 06" (6.9m) 5’ 05" (2.29m) 135 Long Tons 206 GT ITC Cruise Speed: Max Speed: Long Range Cruise: Range: Range at Long Range Cruise: 23.5 knots (Approx.) 27.8 knots (Approx.) 10 knots 625 NM @ 23.5 knots 2,090 NM @ 10 knots Fuel Capacity: Fresh Water: Clean Oil Capacity: Waste Oil Capacity: Black Water Holding Capacity: Grey Water Holding Capacity: 6,260 U.S. Gal. (23,700 l) 1,320 U.S. Gal. (5,000 l) 165 US Gal. (625 l) (A 165 US Gal. (625 l) 380 US Gal. (1,440 l) 335 US Gal. (1,270 l) Exterior Deck Area: Interior Area: 2,093 sq ft (194 m²) 1,227 sq ft (114 m²) Exterior Styling: Naval Architecture: Interior Design: Cor D Rover Donald Blount and Associates Burger Design Team Class: American Bureau of Shipping (ABS) Classification Survey and Notation to A1 Yachting Service for unrestricted world-wide. Burger Boat Company +1.920.686.5117 www.burgerboat.com

Construction The vessel consists of an all welded Alustar Aluminum alloy construction and is subdivided into six (6) water tight compartments. Mechanical Features Main Engines: Two (2) MTU 16V2000 M93 developing 2,400 BHP at 2450 rpm. Raw water cooled. Generators: Two (2) Kohler, 55 kW, 60 Hz, 208 V three phase 1,800 rpm. Raw water cooled. Electrical Systems AC Power System: The electrical installation is 208VAC 60Hz three phase wye, four-wire system with grounded neutral. The system has automatic paralleling capability using governors, auto synchronizers and load sharing units. The system consists...

Alarm and Monitoring System Alarm System: A Tijssen Elektro monitoring system is installed. There is a flat screen alarm indication panel in the engine room and the Pilothouse. Fire Detection System: A Notifier Fire Detection System is installed. Appropriate smoke/fire detectors are placed in machinery and other technical spaces, such as the engine room, bow thrusters and air handler compartments, etc., and are connected to the fire alarm status panel in the Pilothouse and crew's mess. Auxiliary Systems Engine Room Ventilation: The engine room ventilation equipment is designed and engineered...

Central Hydraulic System: Hydraulic power to all consumers, with the exception of the steering system, is provided by a Quantum Marine QIS 60 Hydraulic power unit and two (2) gearbox driven pumps. Steering Control System: A Jastram steering system is installed. Fin Stabilization System: The vessel is equipped with a 2-Fin Quantum Marine Model QC 1000 stabilizer system. Bow Thruster: The vessel is equipped with a Quantum Thruster, 16 inch diameter, model QT-120 prop rated at approximately 120 hp proportional controls in the Pilothouse and stations. Anchoring System: Twin Polished stainless steel...

Accommodations To-Kalon’s interiors evolve around the Sapele paneling with accents of Sapele Pomele which flows throughout the Main Deck Salon and guest accommodations providing the perfect background for traditional furnishings. The Main Salon area features a curving staircase suspended in front of the unusual full length windows. The staircase ascends to the Sky Lounge and Pilothouse which is paneled in Kaya with Ebony inlays. This area features leather Chesterfield sofas and a domed ceiling which was painted by a New York artist. The interiors of this vessel are the epitome of comfortable...

Lower Foyer: The lower foyer features striped wall covering with antiqued gold finish and Antique Mirrored Walls that reflects the sculpture located in the niche. The hand painted cabinet features underwater life. Dining Room: Dining area is located forward in the Main Salon. Built-in furniture consists of wood topped buffets and cabinets for glasses and stemware and includes a wine cooler. Main Stairway: The Main Stairway consists of a curved open Sapele staircase suspended in front of the full height windows and features antique bronze balusters and Sapele handrail. Main Salon: The main salon...

accents. Pilothouse steering wheel is stainless steel with the controls, instruments, switches, electronics, etc., properly arranged. One (1) Stidd 1200X helm chair covered with custom leather is installed for comfortable cruising. Main Deck Aft: The Main Deck Aft is teak covered and features a dining table for 6 as well as a built in television and access to the flybridge via a teak and stainless steel ladder. Wing Stations: Wing stations are fitted port and starboard on the outboard sides of the main deck. Fore Deck: The Fore Deck is covered with painted non-skid. And includes a storage locker...

TÒ-KALÒN 2008 Burger 101’ Enclosed Bridge Motor Yacht 8
