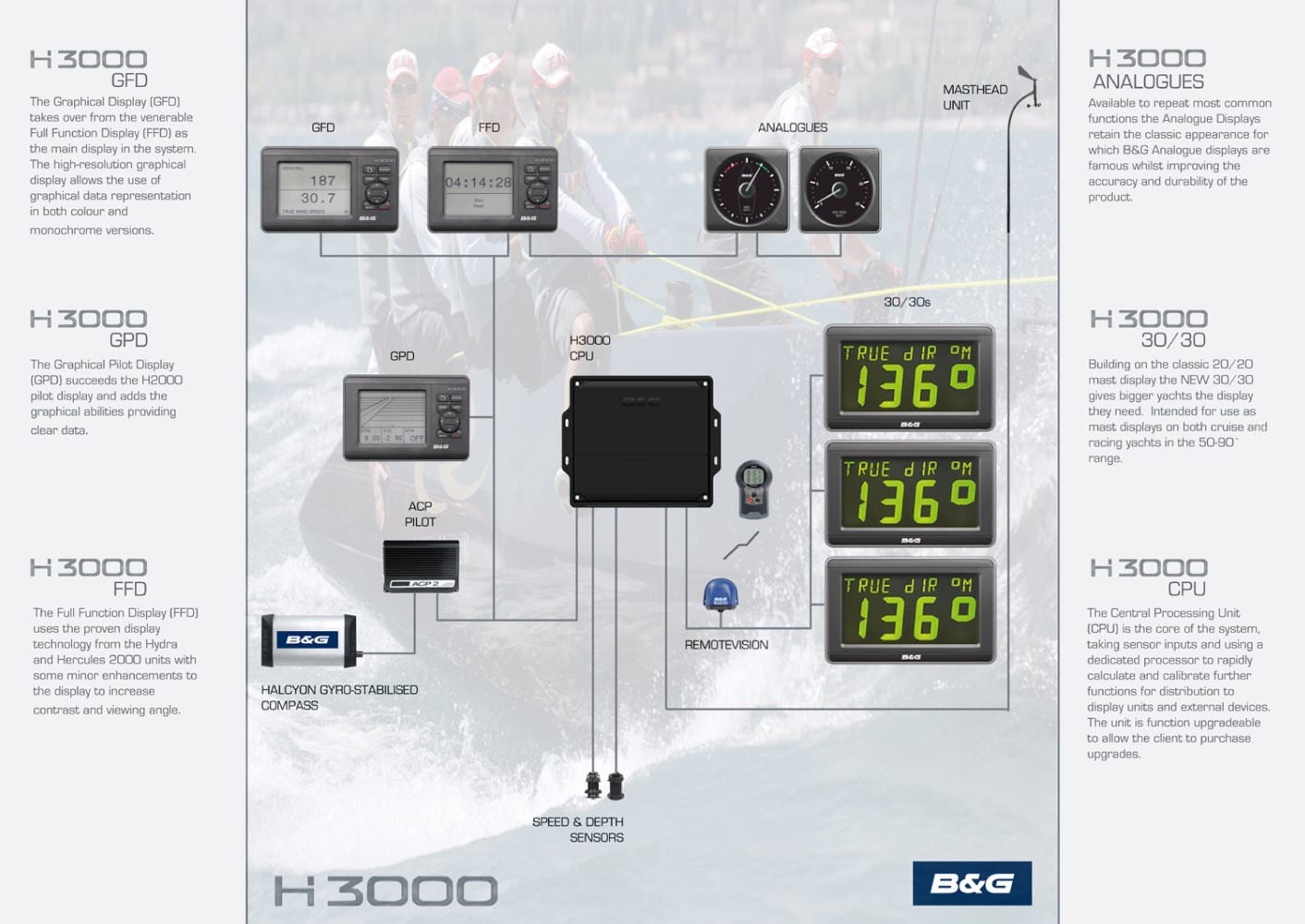

H3000 System diagram - B & G - #1

H30D0

GFD

The Graphical Display [GFD]

takes over from the venerable

Full Function Display (FFD) as

the main display in the system.

The high-resolution graphical

display allows the use of

graphical data representation

in both colour and

monochrome versions.

H3DOO

GPD

The Graphical Pilot Display

(GPD) succeeds the H2ÜOO

pilot display and adds the

graphical abilities providing

clear data.

H3000

FFD

The Full Function Display [FFD]

uses the proven display

technology from the Hydra

and Hercules 2000 units with

some minor enhancements to

the display to increase

contrast and viewing angle.

GFD

FFD

GPD

ACP

PILOT

H3000

CPU

HALCYON GYRO-STABILISED

COMPASS

an

SPEED & DEPTH

SENSORS

H3000

ANALOGUES

MASTHEAD

UNIT

I

I

I

7 '\Ë - V">

30/30S

â–

I

TRUE d IR °tì

Í36

T RUE d IR °H

Ì3B

TRUE d IR °H

REMOTEVISION

136

H3DDO

ANALOGUES

Available to repeat most common

functions the Analogue Displays

retain the classic appearance for

which BSG Analogue displays are

famous whilst improving the

accuracy and durability of the

product.

H3000

30/30

Building on the classic 2D/20

mast display the NEW 3Q/30

gives bigger yachts the display

they need Intended for use as

mast displays on both cruise and

racing yachts in the 50-9CT

range.

H3000

CPU

The Central Processing Unit

(CPU) is the core of the system,

taking sensor inputs and using a

dedicated processor to rapidly

calculate and calibrate further

functions for distribution to

display units and external devices.

The unit is function upgradeable

to allow the client to purchase

upgrades.
