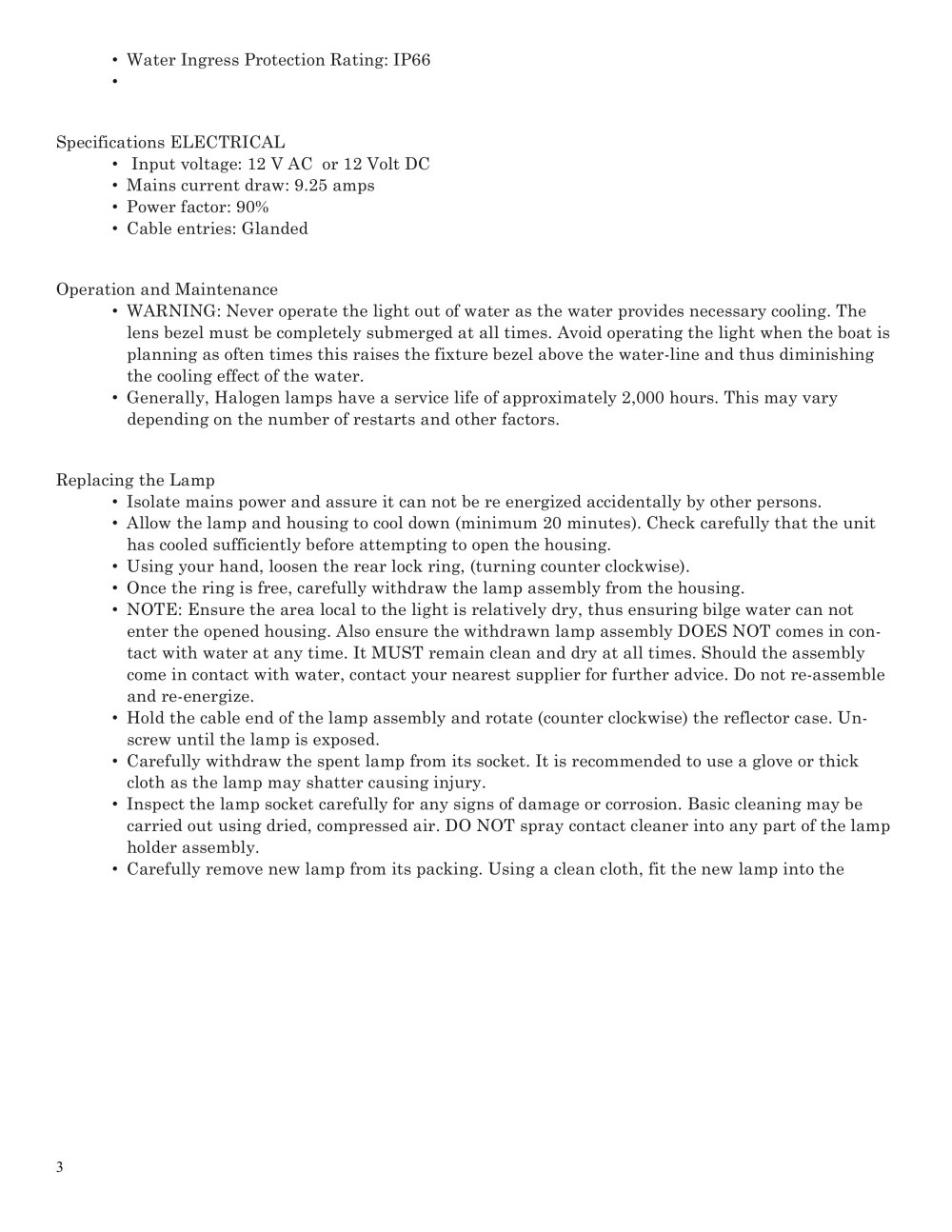

? Water Ingress Protection Rating: IP66 ? Specifications ELECTRICAL ? Input voltage: 12 V AC or 12 Volt DC ? Mains current draw: 9.25 amps ? Power factor: 90% ? Cable entries: Glanded Operation and Maintenance ? WARNING: Never operate the light out of water as the water provides necessary cooling. The lens bezel must be completely submerged at all times. Avoid operating the light when the boat is planning as often times this raises the fixture bezel above the water-line and thus diminishing the cooling effect of the water. ? Generally, Halogen lamps have a service life of approximately 2,000 hours. This may vary depending on the number of restarts and other factors. Replacing the Marine lamp ? Isolate mains power and assure it can not be re energized accidentally by other persons. ? Allow the lamp and housing to cool down (minimum 20 minutes). Check carefully that the unit has cooled sufficiently before attempting to open the housing. ? Using your hand, loosen the rear lock ring, (turning counter clockwise). ? Once the ring is free, carefully withdraw the lamp assembly from the housing. ? NOTE: Ensure the area local to the light is relatively dry, thus ensuring bilge water can not enter the opened housing. Also ensure the withdrawn lamp assembly DOES NOT comes in con- tact with water at any time. It MUST remain clean and dry at all times. Should the assembly come in contact with water, contact your nearest supplier for further advice. Do not re-assemble and re-energize. ? Hold the cable end of the lamp assembly and rotate (counter clockwise) the reflector case. Un- screw until the lamp is exposed. ? Carefully withdraw the spent lamp from its socket. It is recommended to use a glove or thick cloth as the lamp may shatter causing injury. ? Inspect the lamp socket carefully for any signs of damage or corrosion. Basic cleaning may be carried out using dried, compressed air. DO NOT spray contact boat cleaner into any part of the lamp holder assembly. ? Carefully remove new lamp from its packing. Using a clean cloth, fit the new lamp into the
