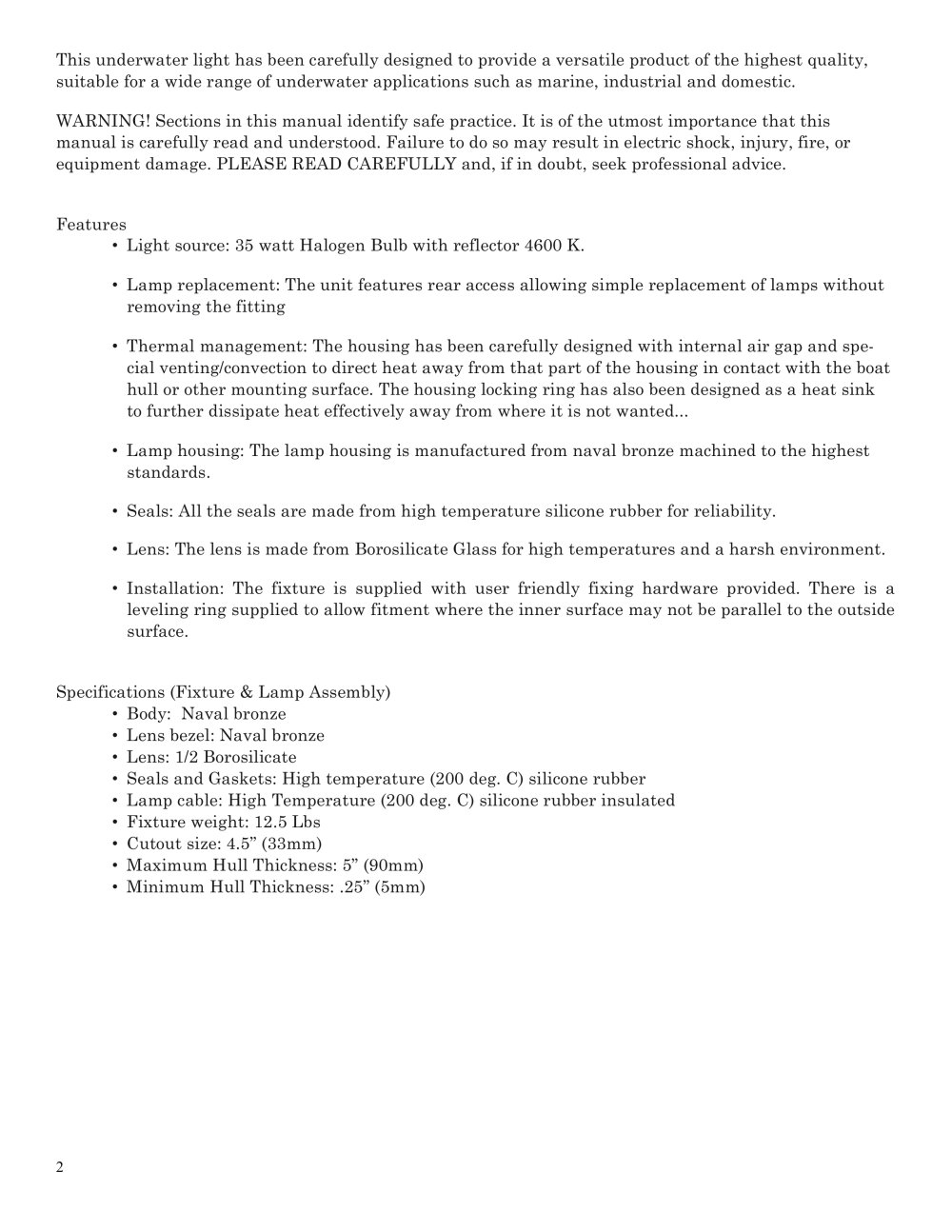

This boat underwater light has been carefully designed to provide a versatile product of the highest quality, suitable for a wide range of underwater applications such as marine, industrial and domestic. WARNING! Sections in this manual identify safe practice. It is of the utmost importance that this manual is carefully read and understood. Failure to do so may result in electric shock, injury, fire, or equipment damage. PLEASE READ CAREFULLY and, if in doubt, seek professional advice. Features • Light source: 35 watt Halogen Bulb with reflector 4600 K. ? Marine lamp replacement: The unit features rear access allowing simple replacement of lamps without removing the fitting ? Thermal management: The housing has been carefully designed with internal air gap and spe- cial venting/convection to direct heat away from that part of the housing in contact with the boat hull or other mounting surface. The housing locking ring has also been designed as a heat sink to further dissipate heat effectively away from where it is not wanted... ? Lamp housing: The lamp housing is manufactured from naval bronze machined to the highest standards. ? Seals: All the seals are made from high temperature silicone rubber for reliability. ? Lens: The lens is made from Borosilicate Glass for high temperatures and a harsh environment. ? Installation: The fixture is supplied with user friendly fixing hardware provided. There is a leveling ring supplied to allow fitment where the inner surface may not be parallel to the outside surface. Specifications (Fixture & Lamp Assembly) ? Body: Naval bronze ? Lens bezel: Naval bronze ? Lens: 1/2 Borosilicate ? Seals and Gaskets: High temperature (200 deg. C) silicone rubber ? Lamp cable: High Temperature (200 deg. C) silicone rubber insulated ? Fixture weight: 12.5 Lbs ? Cutout size: 4.5” (33mm) ? Maximum Hull Thickness: 5” (90mm) ? Minimum Hull Thickness: .25” (5mm)
2
