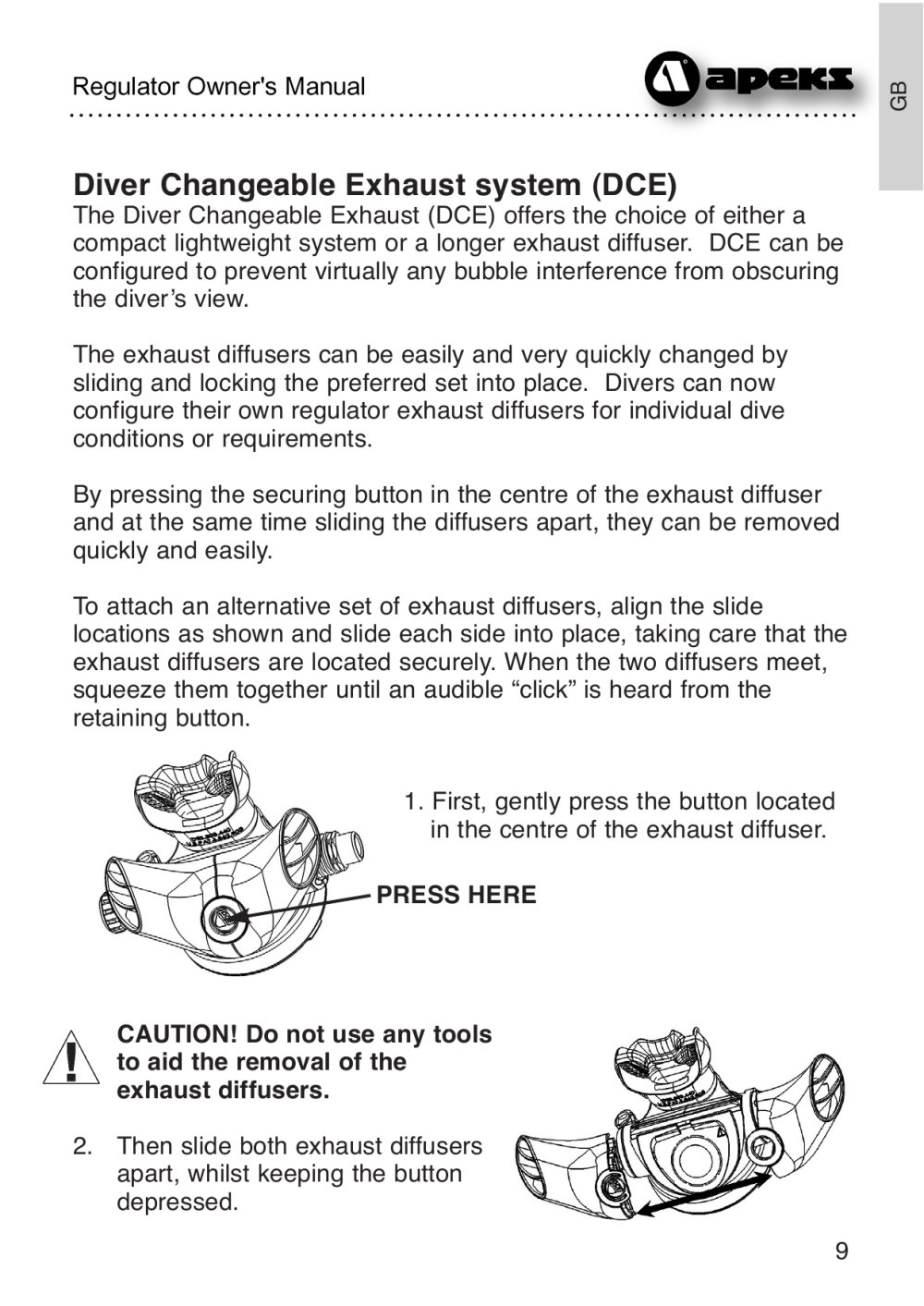

Regulator Owner's Manual m
Diver Changeable Exhaust system (DCE)
The Diver Changeable Exhaust (DCE) offers the choice of either a compact lightweight system or a longer exhaust diffuser. DCE ran be configured to prevent virtually any bubble interference from obscuring the diver's view.
The exhaust diffusers ran be easily and very quickly changed by sliding and locking the preferred set into place. Divers ran now configure their own regulator exhaust diffusers for individual dive conditions or requirements.
By pressing the securing button in the centre of the exhaust diffuser and at the same time sliding the diffusers apart, they can be removed quickly and easily.
To attach an alternative set of exhaust diffusers, align the slide locations as shown and slide each side into place, taking rare that the exhaust diffusers are located securely. When the two diffusers meet, squeeze them together until an audible "click" is heard from the retaining button.
1. First, gently press the button located in the centre of the exhaust diffuser.
PRESS HERE
a CAUTION! Do not use any tools |\ to aid the removal of the exhaust diffusers.
Then slide both exhaust diffusers apart, whilst keeping the button depressed.
9
