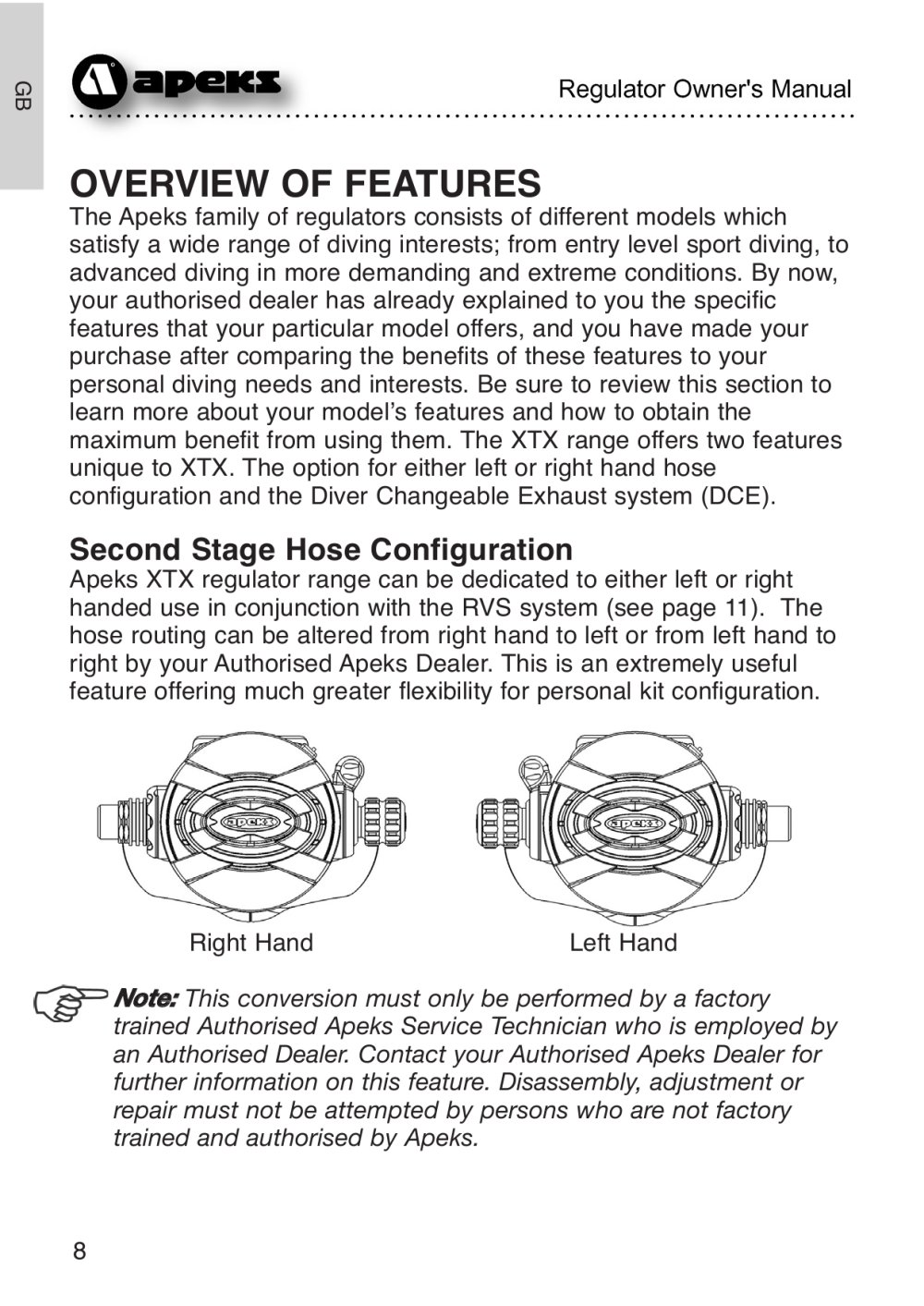

Regulator Owner's Manual
OVERVIEW OF FEATURES
The Apeks family of regulators consists of different models which satisfy a wide range of diving interests; from entry level sport diving, to advanced diving in more demanding and extreme conditions. By now. your authorised dealer tes already explained to you the specific features that your particular model off ere, and you have made your purchase after comparing the benefits of these features to your personal diving needs and interests. Be sure to review this section to learn more about your model's features and how to obtain the maximum benefit from using them. The XTX range offers two features unique to XTX. The option for either left or right hand hose configuration and the Diver Changeable Exhaust system (DCE).
Second stage Hose Configuration
Apeks XTX regulator range ran be dedicated to either left or right handed use in conjunction with the RVS system (see page 11). The hose routing ran be altered from right tend to left or from left tend to right by your Authorised Apeks Dealer. This is an extremely useful feature offering much greater flexibility for personal kit configuration.
Right Hand
Left Hand
' Note: This conversion must only be performed by a factory trained Authorised Apeks Service Technician who is employed by an Authorised Dealer. Contact your Authorised Apeks Dealer for further information on this feature. Disassembly, adjustment or repair must not be attempted by persons who are not factory trained and authorised by Apeks.
8
