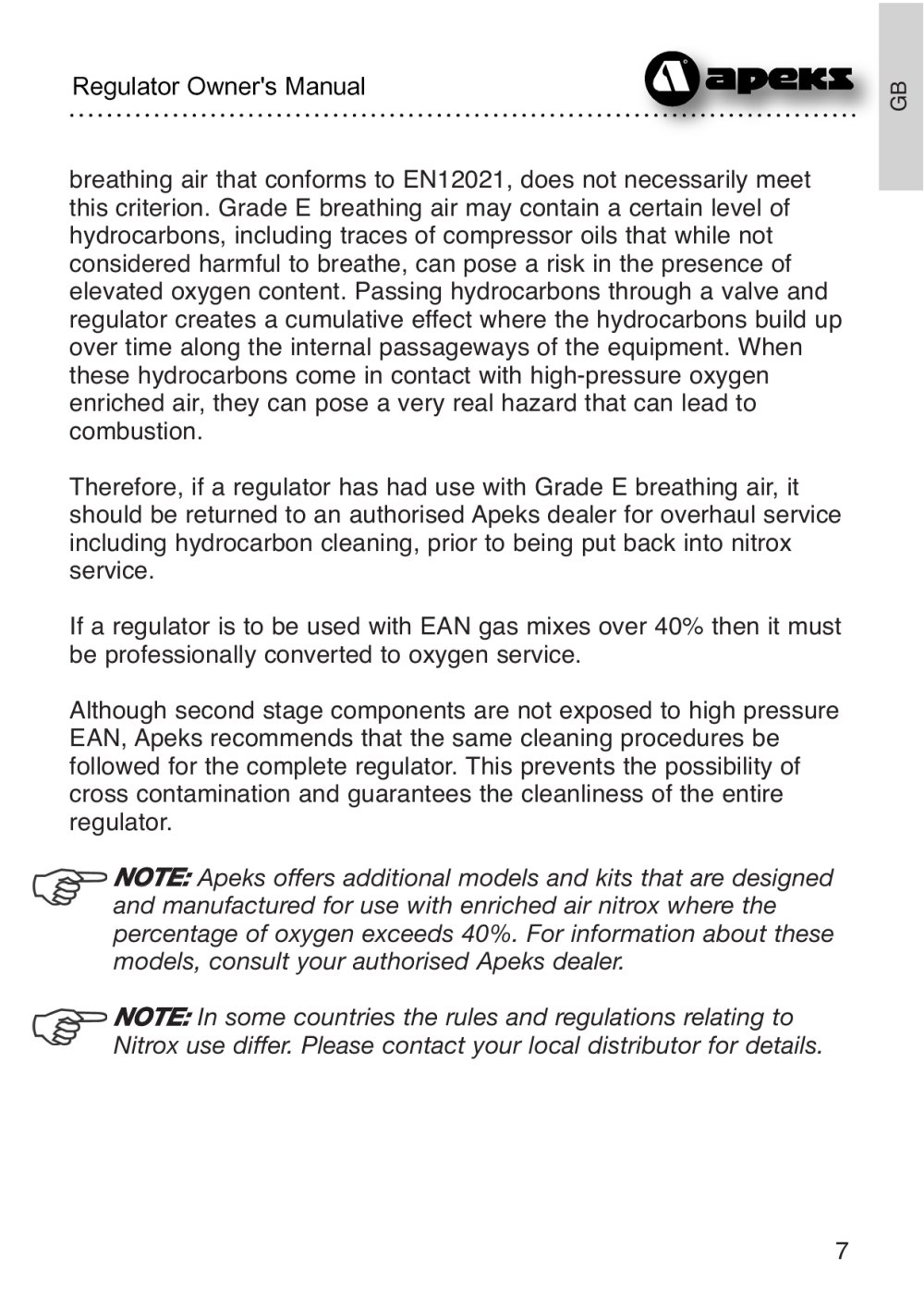

Regulator Owner's Manual
breathing air that conforms to EN12021, does not necessarily meet this criterion. Grade E breathing air ray contain a certain level of hydrocarbons, including traces of compressor oils that while not considered harmful to breathe, ran pose a risk in the presence of elevated oxygen content. Passing hydrocarbons through a valve and regulator creates a cumulative effect where the hydrocarbons build up over time along the internal passageways of the equipment. When these hydrocarbons come in contact with high-pressure oxygen enriched air, they can pose a very real hazard that can lead to combustion.
Therefore, if a regulator has had use with Grade E breathing air, it
si ir s
service.
If a regulator is to be used with EAN gas mixes over 40% then it must be professionally converted to oxygen service.
Although second stage components are not exposed to high pressure EAN, Apeks recommends that the same cleaning procedures be followed for the complete regulator. This prevents the possibility of cross contamination and guarantees the cleanliness of the entire regulator.
r'SF^ NOTE: Apeks offers additional models and kits that are designed and manufactured for use with enriched air nitrox where the percentage of oxygen exceeds 40%. For information about these models, consult your authorised Apeks dealer.
r'gF3 NOTE: In some countries the rules and regulations relating to
Nitrox use differ. Please contact your local distributor for details.
7
